1OM-1603 1-16 2. Name and Function of Each Section : Chap.1 1012-005 2.3.4 Operation Section The machine is equipped with the touch screens and operation panels for machine operations on both front and rear sides. The [P…
1OM-1603
1-15
2. Name and Function of Each Section : Chap.1
1012-004

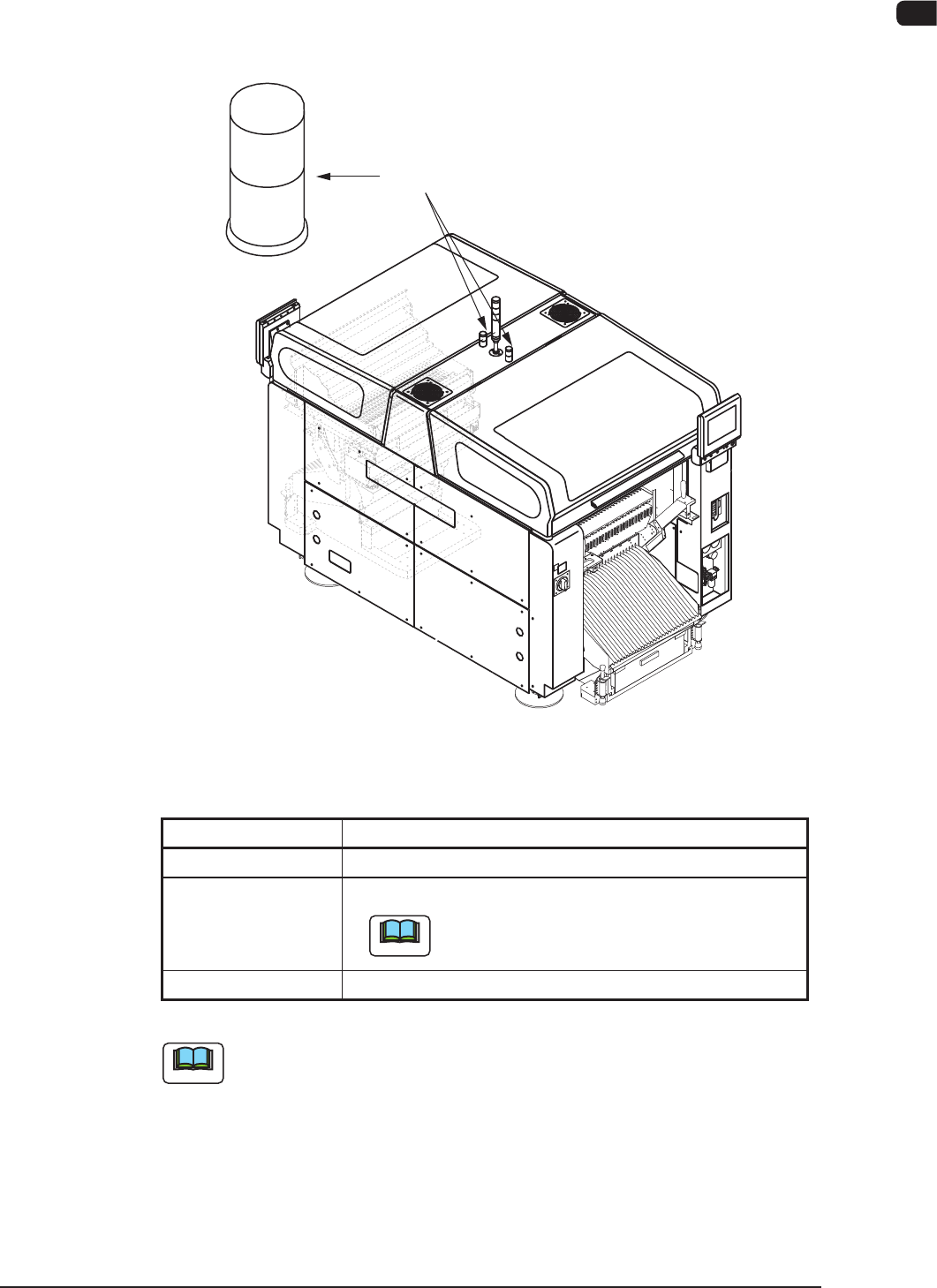

2.3.3 Auxiliary Lamps
The auxiliary lamps are used to indicate in which block the machine status
(indicated by the tower lamp) is generated.
Auxiliary Lamps
F1A12
•
Lighting Condition of Lamps
Lighting Condition Machine Status (based on each block)
ON Normally Running or Under Operation
ON and OFF
(Flickering)
Error or Component Shortage
Note
When an error is not related to any block, all
auxiliary lamps icker.
OFF Stop Mode
T1A5
Note
When component shortage has occurred, replenish the component supply.
1OM-1603
1-16
2. Name and Function of Each Section : Chap.1
1012-005

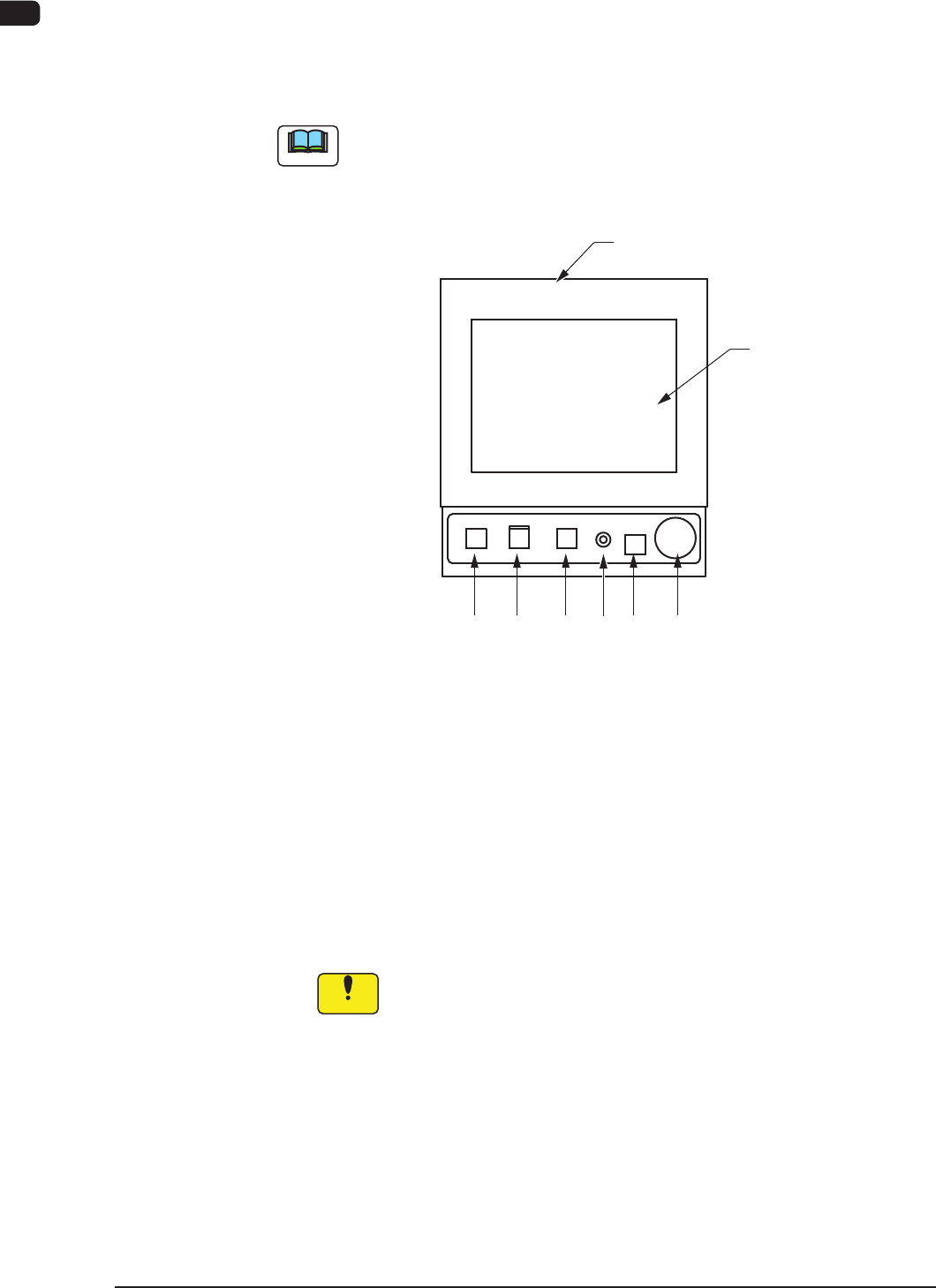

2.3.4 Operation Section
The machine is equipped with the touch screens and operation panels for machine
operations on both front and rear sides.
The [PNL CHANGE] buttons on the operation panels can be used to select and
activate either the front or the rear operation panel.
Note
The keyboard and mouse are not attached, but they can be attached as options.
The following operation buttons and switch are arranged on the operation panel.
[2] [3] [4] [7]
[1]
Operation Panel
[5]
[6]
F1A13
[1] Touch Screens
The windows for operations are displayed on the front rear touch screens.
Various operations can be performed by nger-touching the buttons that
appear on the screen.
Notes on Handling Touch Screen
•
Since the touch screen uses the molecules in liquid crystals, handle it like
glass. Do not apply any strong pressure or shock to the surface.
Notice
Do not apply any strong pressure or shock to the touch screens.
Otherwise, they will be damaged.
Do not press the touch screens with a force of 0.79N (80 g) or
more.
1OM-1603
1-17
2. Name and Function of Each Section : Chap.1
1007-004
•
When the machine is powered under low temperature, the brightness of
the back light drops. It turns out to be normal in a few minutes and the
deterioration is not abnormal.
When the back light is turned on or off repeatedly at low temperature, the
life will be shortened.
•
Before cleaning the touch screen, be sure to turn off the [POWER ON]
button. Otherwise, the touch screen will react to your touch during cleaning,
resulting in data corruption.
If the surface of the touch screen gets dirty, wipe it softly with a soft cloth
soaked in ethanol to remove dirt and dust.
Notice
Never use an organic solvent such as acetone, thinner, benzine to
clean the touch screens.
If the surface is wiped with an organic solvent, it may melt or get
cloudy.
[2] [POWER ON] Button
Turning ON or OFF this button supplies or intercepts the power for
operations.
When the [POWER ON] button is pressed and the power for operations is
supplied, the LED of the [START] button ickers.
[3] [START] Button
When the [START] button is pressed while the lamp is ickering after the
machine i
s powered, the automatic operation starts and the LED of the button
turns green.
While the LED is ON, it indicates that the automatic operation is being
performed.
When the [STOP] button is pressed during the automatic operation, the
automatic operation stops temporarily and the lamp of the [START] button
extinguishes.
While each device is being zeroed, the LED is kept ON.
[4] [STOP] Button
When this button is pressed, the machine stops running temporarily.
When the machine is running automatically, it stops temporarily after all the
picked components are placed.
When the [STOP] button is pressed during the zeroing operation, the zeroing
operation of each device is interrupted.
