1OM-1603 1-29 3. Mechanism for Surface Mounting : Chap.1 1003-003 3.8.1 Bank Feeder Change Cart The bank feeder change carts are used to install the feeder base to the main body of the machine. By using a bank feeder cha…
1OM-1603
1-28
3. Mechanism for Surface Mounting : Chap.1
1012-005
3.8 Cart Installation Section
Cart Installation Section
F1A22-1
The cart installation section is equipped with a mechanism by which the bank
feeder change cart is setup. The components are supplied from the tape feeder
attached onto the feeder base in the bank feeder change cart.
Each feeder base is provided with a "Fdr No." plate that indicates where to
allocate the feeders.
When a component shortage error is generated or a feeder has trouble and the
components cannot be picked up subsequently, the alternative feeder slot No. is
selected to continue the automatic operation. (Feeder Alternate Operation).
In this case, another slot No. across the front and rear beams can be selected.
CAUTION
When a tape feeder is attached or detached, be sure
not to drop it.
Otherwise, a foot injury will result or the feeder itself may
be damaged.
Carefully handle each feeder one by one and do not drop
any.
NOTICE
Attach the tape feeder correctly onto the feeder base
rail.
In the case that the tape feeder is attached incorrectly, it
might strike against the head section or a pick-up error
might be caused.
1OM-1603
1-29
3. Mechanism for Surface Mounting : Chap.1
1003-003

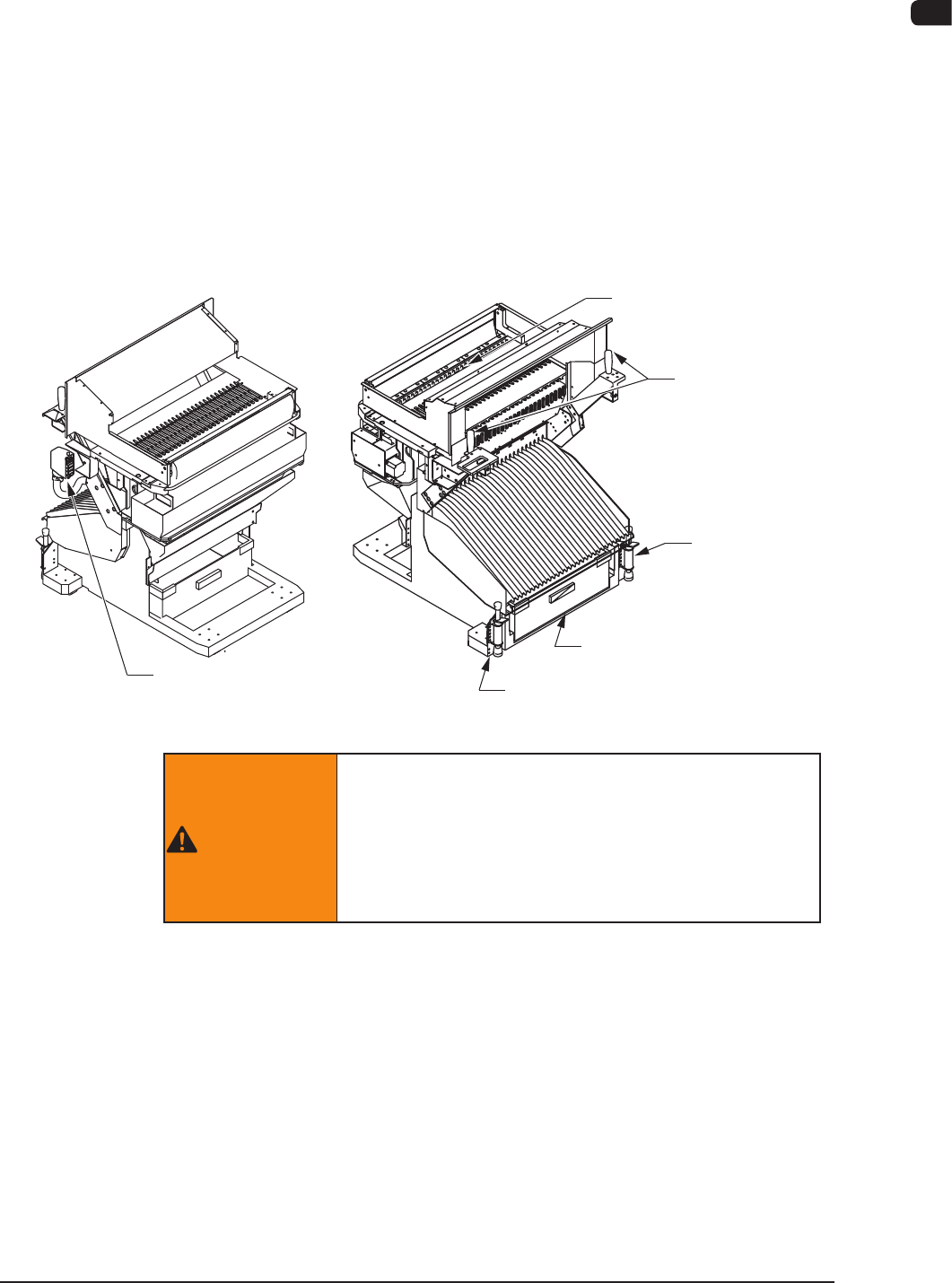

3.8.1 Bank Feeder Change Cart
The bank feeder change carts are used to install the feeder base to the main body
of the machine.
By using a bank feeder change cart, it becomes possible for the whole body of the
feeder base to be replaced with another one at a time.
When the feeders are prepared on the spare cart, a bank feeder change cart can
easily be replaced with the spare one, greatly shortening the time of a model
change operation (feeder replacement).
The bank feeder change cart is equipped with a scrap box that can be used to
collectively dispose the tape chips that were cut off when components were
supplied from the tape feeders.
Feeder Base
Handle
Stopper
Scrap Box
Stopper
Connector
F1A25
WARNING
If the bank feeder change cart is not set, a clearance
will be left at the feeder setting area and the operator
will be exposed to danger.
Be sure to use the machine with the bank feeder
change carts being attached.
1OM-1603
1-30
3. Mechanism for Surface Mounting : Chap.1
1012-005
CAUTION
Hazardoustoyourhandsandngers!
•
Be sure to hold the handle to move the bank feeder
change cart.
•
Be careful not to hit your hand against the cover while
installing the bank feeder change cart onto the main
machine.
Watch
yourstep!
•
Be careful not to hit your foot against the cart while
moving the bank feeder change cart.
Especially, the resistance against cart movement may
change rapidly when the oor is ragged and the cart
gets caught on the oor or a sheet is used and the cart
gets caught at the edge or a slackened portion of the
sheet.
•
Make sure to insert the feeder into the deep end.
When the tape feeder is mounted onto the feeder
carriage, make sure that it has been inserted into the
deep end and xed securely.
In the case that it has not been xed securely, the tape
feeder might fall, which might cause a lower leg injury
or damage to the feeder.
