1OM-1603
1-36
4. Surface Mounting Mechanism : Chap.1
1012-004
4. Surface Mounting Mechanism
Described roughly below is how the components are placed on the PCB.
PCB Input Chapter 1
PCB Positioning Chapter 1
PEC Recognition Chapter 1
Component Supply Chapter 1
Component Picks Chapter 1
Component Recognition
Chapter 1
Component Placement
Chapter 1
PCB Output Chapter 1
4.1 in
4.2 in
4.3 in
4.4 in
4.5 in
4.6 in
4.7 in
4.8 in
Input
Machine
Output
Machine
PCB Input
Section
Positioning
"L"
Section
Positioning
"R"
Section
PCB Output
Section
Flow Chart for Surface Mounting
F1A32
1OM-1603
1-37
4. Surface Mounting Mechanism : Chap.1
1012-004

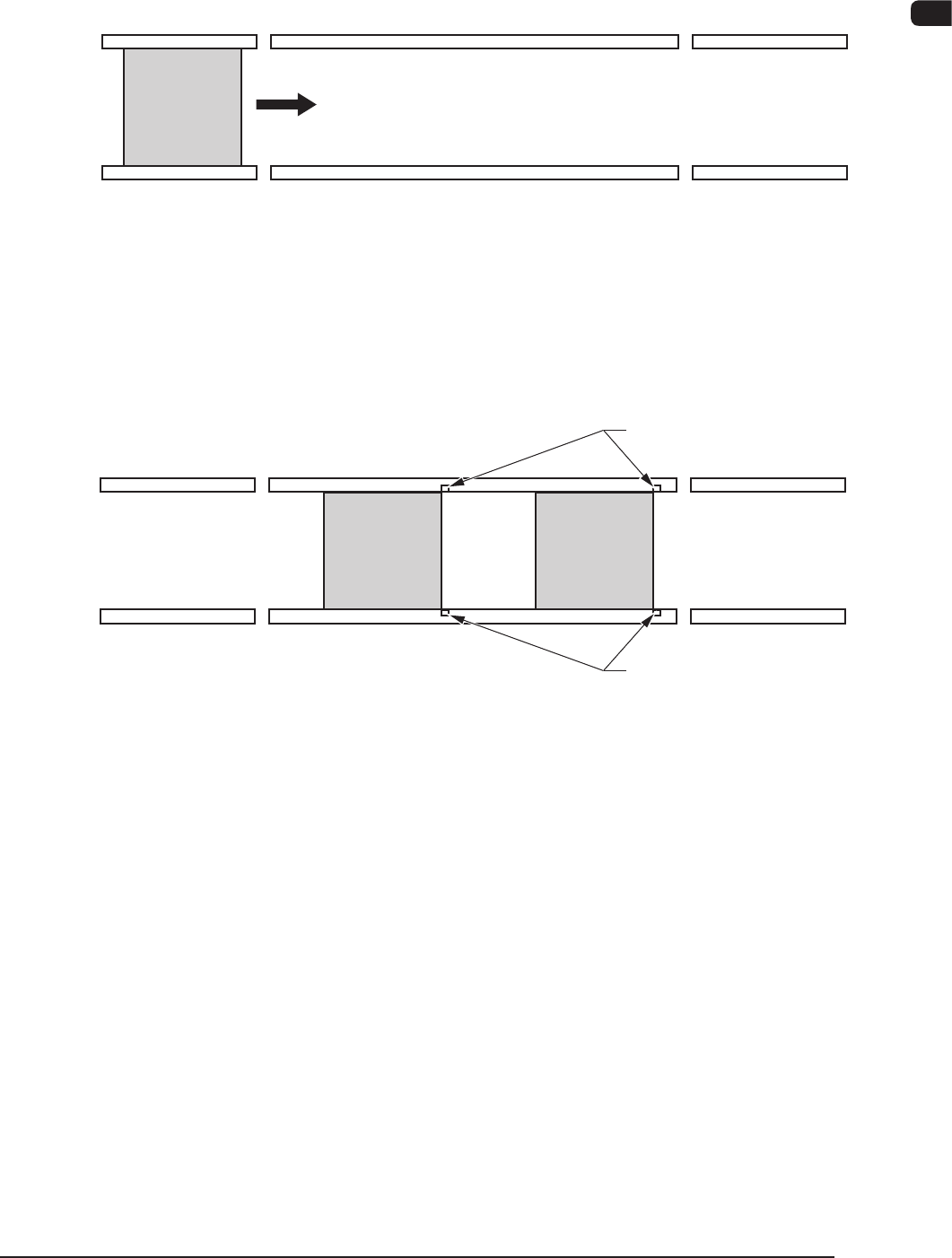

4.1 PCB Input
The PCB sent from the input machine is transferred and reaches the PCB
positioning section.
PCB
Positioning
"L" Section
Positioning
"R" Section
PCB Input Section PCB Output Section
F1A32-1
4.2 PCB Positioning
The PCB is detected by the transferred PCB detection sensor in the PCB
positioning section and positioned there.
PCB PCB
Positioning
"L" Section
Positioning
"R" Section
PCB Input Section PCB Output Section
PCB Detection Sensor Fiber
PCB Detection Mirror
F1A32-2
1OM-1603
1-38
4. Surface Mounting Mechanism : Chap.1

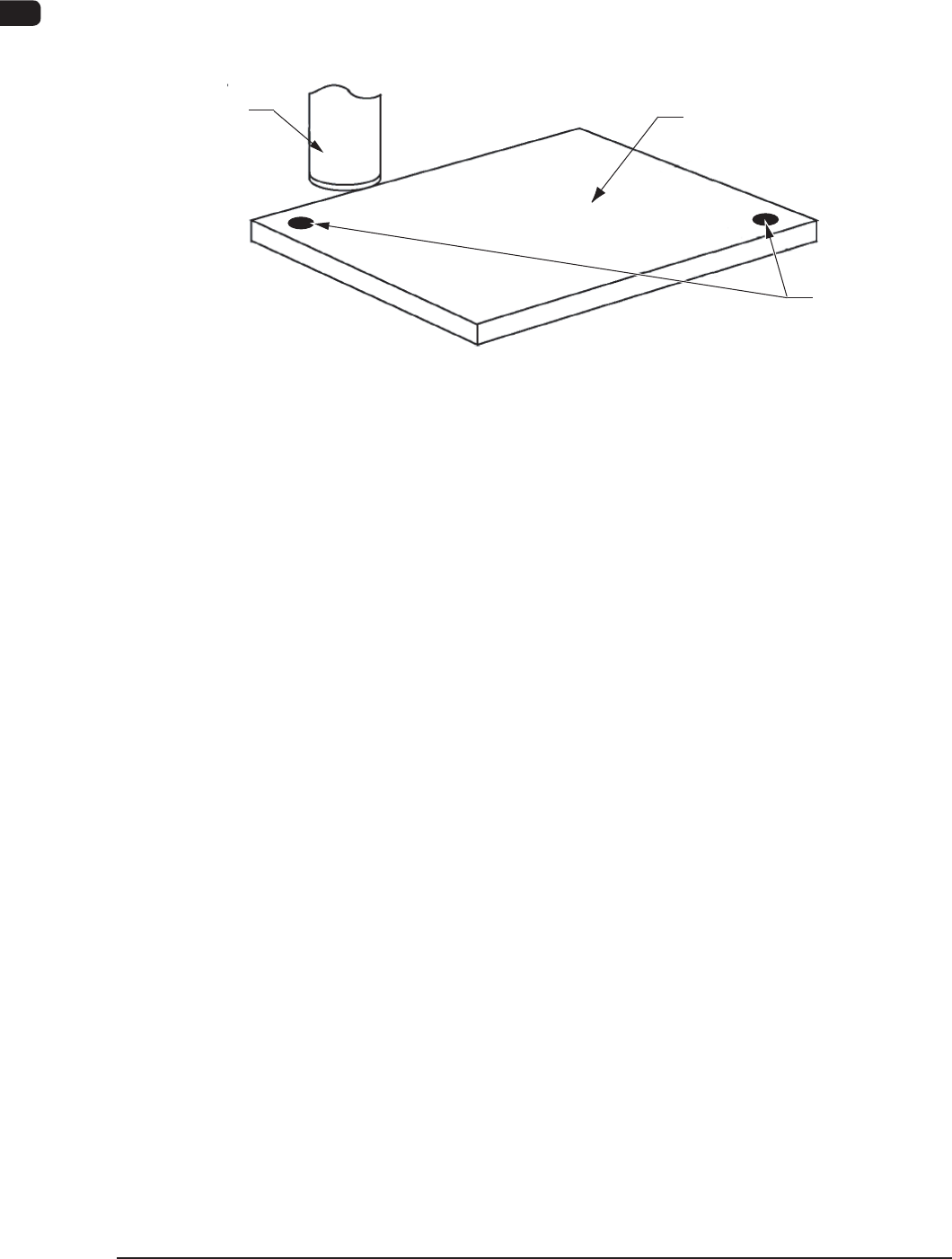

4.3 PEC Recognition
The PEC recognition camera detects the ducial marks on the PCB and the
positional deviations are calculated to correct the position of the components to be
placed.
PEC Recognition
Camera
Fiducial Marks
PCB
PEC Recognition
F1A33
4.4 Component Supply
The tape feeder on the feeder base is shifted to the position where the components
must be supplied.
The placement head is also shifted in the X and Y directions by the X/Y beam and
picks up a component. After that, it places the picked component on the PCB.
4.5 Component Picks
The vacuum nozzles on the placement head are used to pick up the components.
