MODEL TIM-5100
0008-001
フィ－ダベ－ス部 FEEDER BASE SECTION

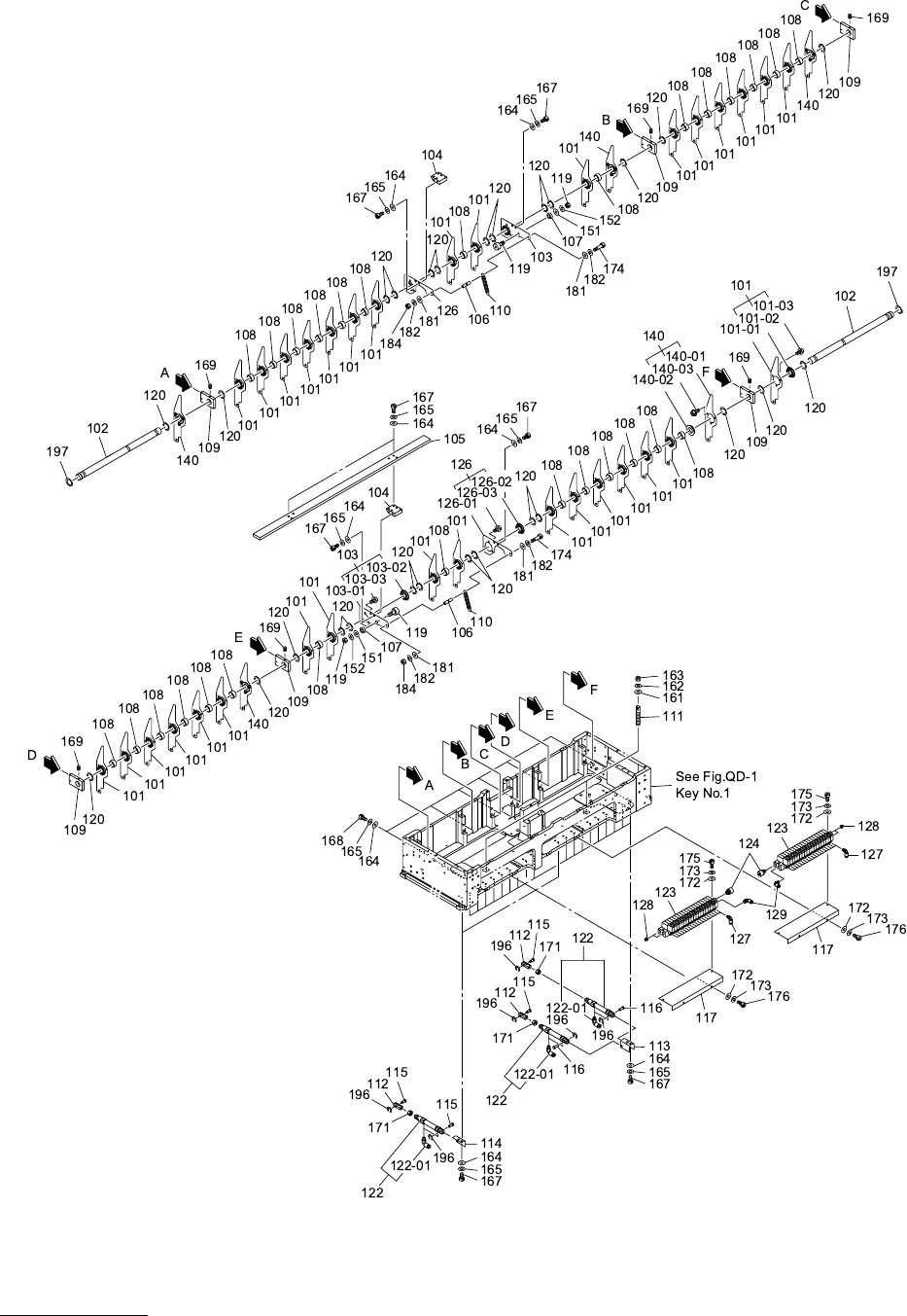

Fig. QD-2 テ－プ送りレバ－ Tape Feed Lever
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
QD-2 2 unit/1 machine
101 630 082 9099 ASSY,LEVER 33
101 -01 630 071 7419 LEVER 1 741QD-11B-101
101 -02 630 071 9246 BEARING,RADIAL 1 741QD-11H-118
101 -03 630 071 9161 BOLT,HEX-SCT 3 741QD-11H-125
102 630 081 5115 SHAFT 2 741QD-11B-102
103 630 096 4639 ASSY,LEVER 2
103 -01 630 081 5122 LEVER 1 741QD-11B-103
103 -02 630 071 9246 BEARING,RADIAL 1 741QD-11H-118
103 -03 630 071 9161 BOLT,HEX-SCT 3 741QD-11H-125
104 630 083 6424 BLOCK 2 741QD-11B-104
105 630 083 6431 PLATE 1 741QD-11B-105
106 630 081 5153 ROD 2 741QD-11B-106
107 630 075 1666 SPACER 2 741QD-11B-107
108 630 083 6448 SPACER 28 741QD-11B-108
109 630 081 5160 BLOCK 6 741QD-11B-109
110 630 071 7457 SPRING,TENSION 2 741QD-11B-110
111 630 074 0189 HOOK 2 741QD-11H-111
112 630 074 8802 ROD END 38 741QD-11B-112
113 630 074 8796 BRACKET 18 741QD-11B-113
114 630 071 8720 BRACKET 2 741QD-11B-114
115 630 071 8331 SHAFT 40 741QD-11B-115
116 630 074 8789 SHAFT 36 741QD-11B-116
117 630 081 5177 BRACKET 2 741QD-11B-117
119 630 034 0020 CAM FOLLOWER 28 741QD-11H-119
120 630 071 9215 SPACER 26 741QD-11H-120
122 630 074 3258 CYLINDER 38 741QD-11H-122
122 -01 630 003 7241 PIPE FITTINGS 2
123 630 081 8352 AIR LINE EQPT 2 741QD-11H-123
124 630 071 9192 AIR LINE EQPT 2 741QD-11H-124
126 630 096 4646 ASSY,LEVER 2
126 -01 630 081 5184 LEVER 1 741QD-11B-126
126 -02 630 071 9246 BEARING,RADIAL 1 741QD-11H-118
126 -03 630 071 9161 BOLT,HEX-SCT 3 741QD-11H-125
127 630 003 7241 PIPE FITTINGS 38
128 630 003 8118 PIPE FITTINGS 4
129 630 003 7326 PIPE FITTINGS 2
140 630 096 4653 ASSY,LEVER 5
140 -01 630 071 7419 LEVER 1 741QD-11B-101
140 -02 630 071 9246 BEARING,RADIAL 1 741QD-11H-118
140 -03 630 071 9161 BOLT,HEX-SCT 3 741QD-11H-125
151 411 141 4701 WASHER V 10X21X2 2 FW10
152 411 141 3209 WASHER SPR 10 2 SW10
161 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
162 411 141 3001 WASHER SPR 6 2 SW6
163 411 141 0703 NUT HEX 6 2 M6
164 411 141 4107 WASHER V 5X10X1 66 FW5
165 411 141 6705 WASHER SPR 5 66 SW5
167 630 000 7763 BOLT,HEX-SCT 54 M5X16
168 630 000 7794 BOLT,HEX-SCT 12 M5X30
169 630 000 8944 SET SCREW 6 M5X6 SET
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
QD-2 2 unit/1 machine
171 411 141 0505 NUT HEX 5 38 M5
172 411 141 4008 WASHER V 4X9X0.8 8 FW4
173 411 141 2905 WASHER SPR 4 8 SW4
174 630 000 7718 BOLT,HEX-SCT 2 M4X45
175 630 000 7671 BOLT,HEX-SCT 4 M4X25
176 630 000 7626 BOLT,HEX-SCT 4 M4X10
181 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
182 411 008 1706 WASHER SPR 4 4 SW4 F
184 411 054 8506 NUT HEX 4 2 M4 F
196 411 001 0201 RING E 5 40
197 411 141 8907 RING C 20 2
