MODEL TIM-5100 0008-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE TT-4 301 630 072 4967 SENSOR,PELEC 8 741TT-1 1H-301 302 630 071 7709 SENSOR,PELEC 2 741TT-1 1H-302 303 630 071 7723 SENSOR,PELEC 2 741TT-1 1H-303 …
MODEL TIM-5100
0008-001
トラバ－ス部 TRAVERSE SECTION

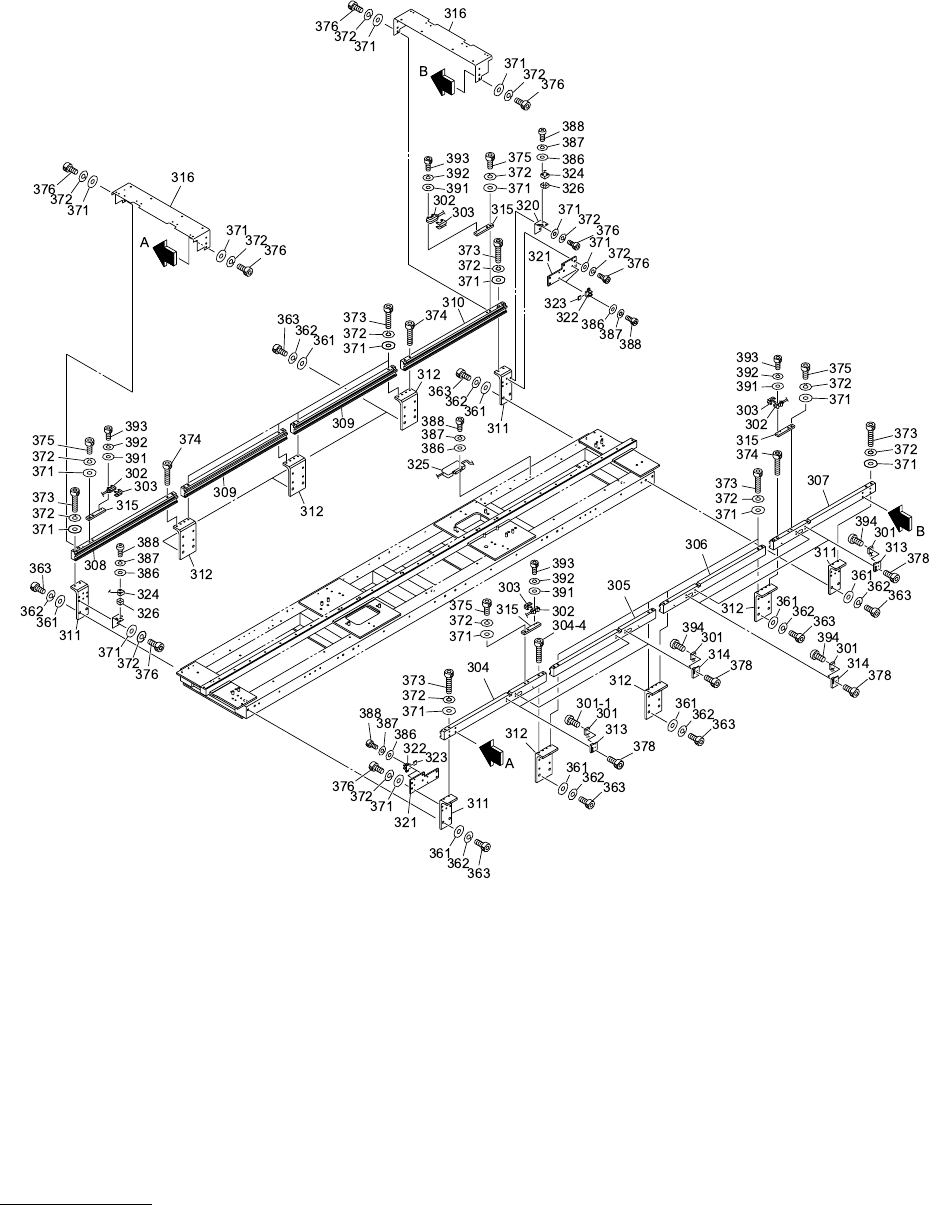

Fig. TT-4 シュ－ト部 Chute Section
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
TT-4
301 630 072 4967 SENSOR,PELEC 8 741TT-11H-301
302 630 071 7709 SENSOR,PELEC 2 741TT-11H-302
303 630 071 7723 SENSOR,PELEC 2 741TT-11H-303
304 630 071 8379 CHUTE 1 741TT-11B-304
305 630 071 8386 CHUTE 1 741TT-11B-305
306 630 071 8393 CHUTE 1 741TT-11B-306
307 630 071 8409 CHUTE 1 741TT-11B-307
308 630 071 8416 CHUTE 1 741TT-11B-308
309 630 071 8423 CHUTE 2 741TT-11B-309
310 630 071 8430 CHUTE 1 741TT-11B-310
311 630 083 8343 BRACKET 4 741TT-11B-311
312 630 083 8350 BRACKET 6 741TT-11B-312
313 630 071 8485 BRACKET 4 741TT-11B-313
314 630 071 8492 BRACKET 4 741TT-11B-314
315 630 083 8336 BRACKET 4 741TT-11B-315
316 630 080 9534 BRACKET 2 741TT-11B-316
317 630 071 8539 BRACKET 4 741TT-11B-317
318 630 074 9427 SENSOR,PELEC 4 741TT-11H-208
319 630 071 7945 BRACKET 1 741TT-11B-134
320 630 071 7952 BRACKET 1 741TT-11B-135
321 630 074 5504 BRACKET 2 741TT-11B-136
322 630 000 0252 SENSOR,PHOTO 4 741TT-11H-112
323 630 000 0269 SENSOR,PHOTO(CONNECTOR) 4 741TT-11H-113
324 630 069 1900 SENSOR,PELEC 1 741TT-11H-114
325 630 056 2545 SENSOR,PELEC 1 741TT-11H-115
326 630 076 6905 SENSOR,PELEC 1 741TT-11H-139
361 411 141 4305 WASHER V 6X12.5X1.6 20 FW6
362 411 141 3001 WASHER SPR 6 20 SW6
363 630 000 7886 BOLT,HEX-SCT 20 M6X16
371 411 141 4008 WASHER V 4X9X0.8 56 FW4
372 411 141 2905 WASHER SPR 4 56 SW4
373 630 000 7695 BOLT,HEX-SCT 24 M4X35
374 630 000 7688 BOLT,HEX-SCT 8 M4X30
375 630 000 7657 BOLT,HEX-SCT 8 M4X16
376 630 000 7619 BOLT,HEX-SCT 16 M4X8
377 630 000 7602 BOLT,HEX-SCT 8 M4X6
378 630 000 7510 BOLT,HEX-SCT 16 M3X8
386 411 119 1909 WASHER V 3X7X0.5 14 FW3 F
387 411 086 4408 WASHER SPR 3 14 SW3 F
388 411 040 6202 SCR PAN 3X10 12 M3X10 PAN
389 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
391 411 141 3605 WASHER V 2X5X0.3 16 FW2 F
392 411 141 2509 WASHER SPR 2 16 SW2 F
393 411 112 9100 SCR PAN 2X12 16 M2X12 PAN
394 411 039 2604 SCR PAN 2X6 16 M2X6 PAN
MODEL TIM-5100
0008-001
トラバ－ス部 TRAVERSE SECTION

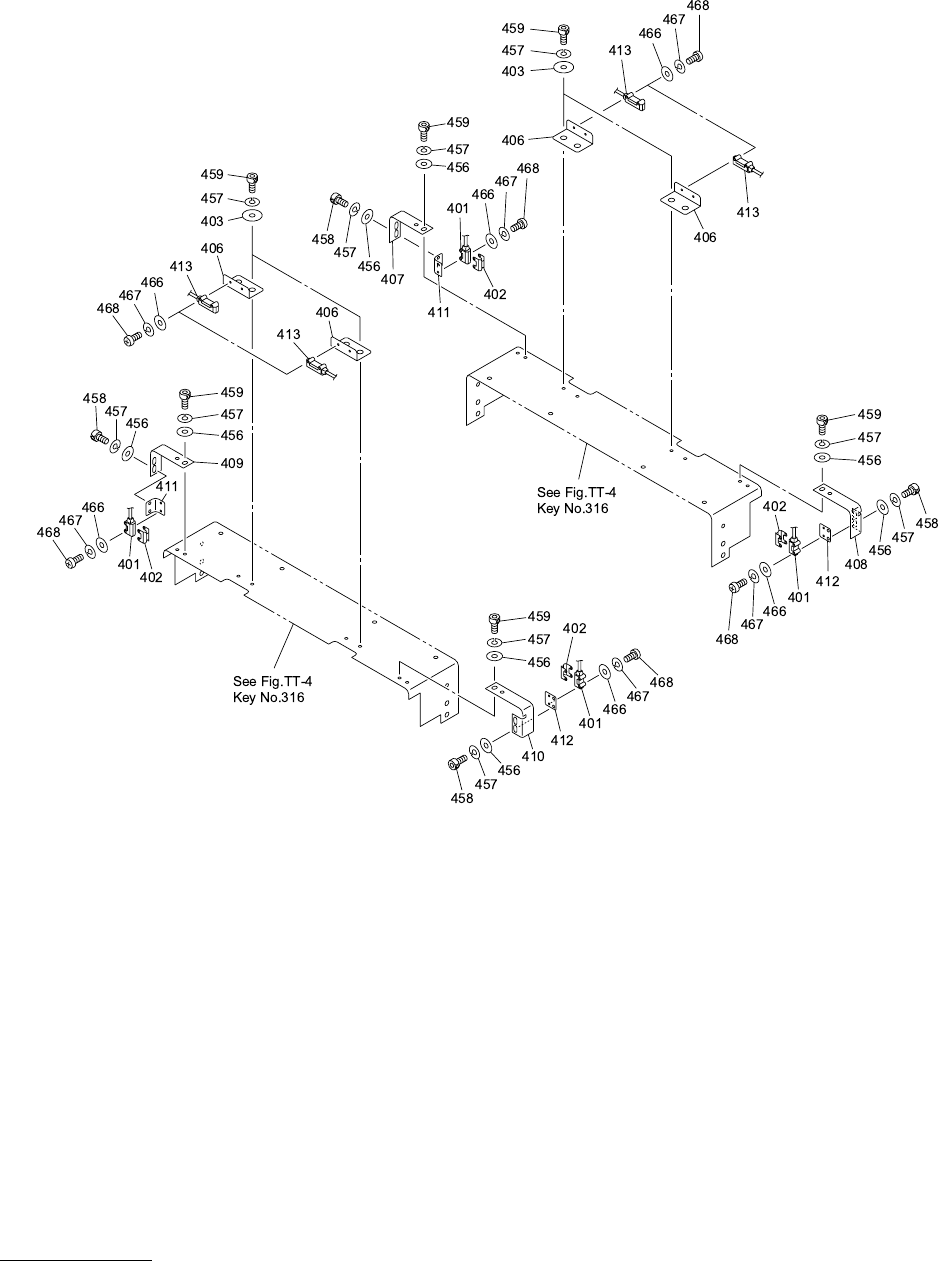

Fig. TT-5 パスライン検出部 Passline Sensor
