MODEL TIM-5100 0008-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE TT-5 401 630 071 7709 SENSOR,PELEC 2 741TT-1 1H-401 402 630 071 7723 SENSOR,PELEC 2 741TT-1 1H-402 403 630 001 0206 W ASHER 8 741TT-1 1H-403 406 6…

MODEL TIM-5100

0008-001

トラバ－ス部 TRAVERSE SECTION

Fig. TT-5 パスライン検出部 Passline Sensor

MODEL TIM-5100

0008-001

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

TT-5

401 630 071 7709 SENSOR,PELEC 2 741TT-11H-401

402 630 071 7723 SENSOR,PELEC 2 741TT-11H-402

403 630 001 0206 WASHER 8 741TT-11H-403

406 630 080 2603 BRACKET 4 741TT-11B-406

407 630 080 9541 BRACKET 1 741TT-11B-407

408 630 080 9565 BRACKET 1 741TT-11B-408

409 630 080 9558 BRACKET 1 741TT-11B-409

410 630 080 9572 BRACKET 1 741TT-11B-410

411 630 080 9589 BRACKET 2 741TT-11B-411

412 630 080 9602 PLATE 2 741TT-11B-412

413 630 074 9427 SENSOR,PELEC 4 741TT-11H-208

456 411 141 3902 WASHER V 3X7X0.5 16 FW3

457 411 141 2806 WASHER SPR 3 24 SW3

458 630 000 7510 BOLT,HEX-SCT 16 M3X8

459 630 000 7503 BOLT,HEX-SCT 8 M3X6

466 411 141 6903 WASHER V 2X5X0.3 16 FW2

467 411 141 2608 WASHER SPR 2 16 SW2

468 411 112 9001 SCR PAN 2X10 16 M2X10 PAN

MODEL TIM-5100

0008-001

本体電装部 MACHINE ELECTRICAL SECTION

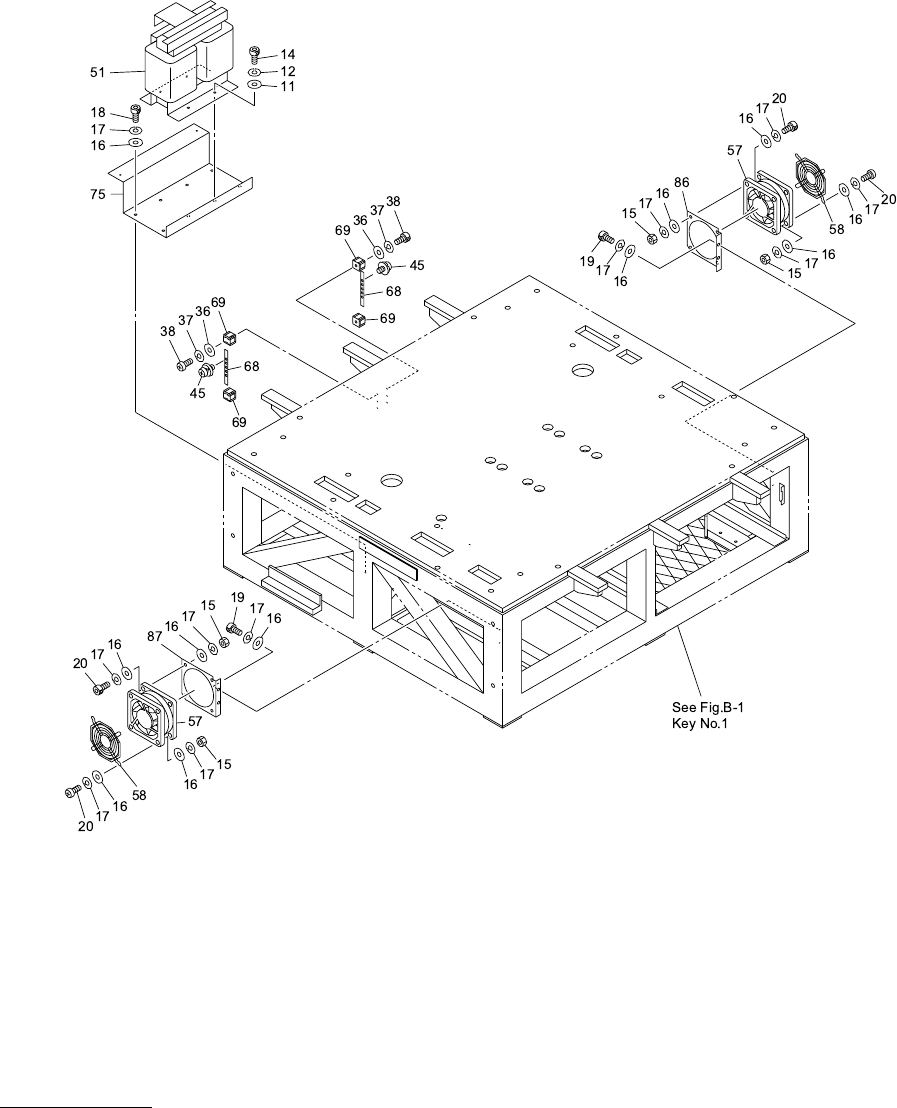

Fig. BB-1 ベースフレーム部 Base Frame Section
