MODEL TIM-5100
0008-001
本体電装部 MACHINE ELECTRICAL SECTION

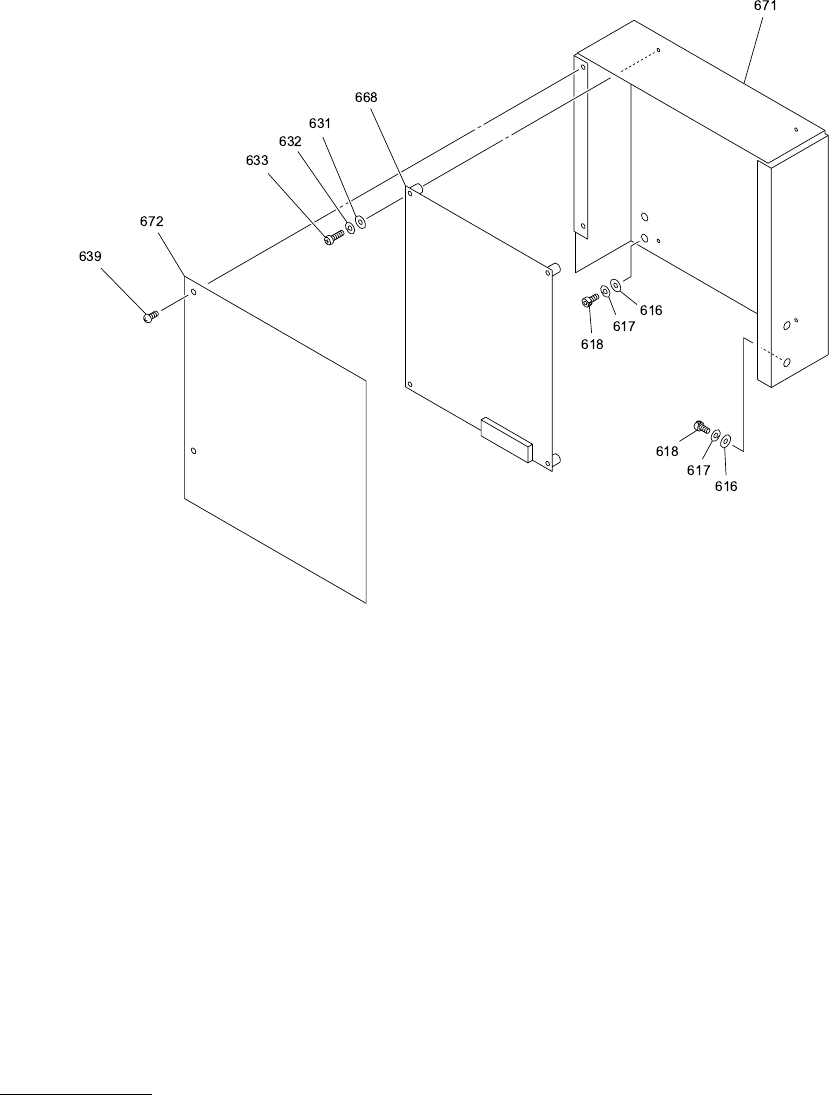

Fig. BB-7 メカ配線ボード２ Machine Wiring Board 2
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BB-7
616 411 141 4107 WASHER V 5X10X1 4 FW5
617 411 141 6705 WASHER SPR 5 4 SW5
618 630 000 7749 BOLT,HEX-SCT 4 M5X10
631 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
632 411 086 4408 WASHER SPR 3 4 SW3 F
633 411 113 0700 SCR PAN 3X16 4 M3X16 PAN
639 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
668 630 074 5313 P.C.B,MOUNT(MEKAHAI) 1 741BB-11U-053
671 630 084 3125 BOX 1 741BB-11V-371
672 630 084 6973 COVER 1 741BB-11V-372
