MODEL TIM-5100
0008-001
制御ボックス部 CONTROL BOX SECTION
Fig. BC-1 制御ボックス（１） Control Box (1)
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BC-1
11 411 119 1909 WASHER V 3X7X0.5 7 FW3 F
12 411 086 4408 WASHER SPR 3 7 SW3 F
13 411 042 0703 SCR PAN 3X8 7 M3X8 PAN
16 411 141 3902 WASHER V 3X7X0.5 4 FW3
17 411 141 2806 WASHER SPR 3 4 SW3
18 411 140 9905 NUT HEX 3 4 M3
21 411 119 2104 WASHER V 4X9X0.8 18 FW4 F
22 411 008 1706 WASHER SPR 4 18 SW4 F
23 411 043 5004 SCR PAN 4X8 8 M4X8 PAN
25 411 113 2209 SCR PAN 4X16 10 M4X16 PAN
26 411 054 8506 NUT HEX 4 10 M4 F
31 411 088 1702 WASHER V 5X10X1 6 FW5 F
32 411 008 2109 WASHER SPR 5 6 SW5 F
33 411 161 8604 SCR PAN 5X25 6 M5X25 PAN
35 630 001 0220 WASHER 4 BW5
37 411 141 6705 WASHER SPR 5 4 SW5
39 630 000 7756 BOLT,HEX-SCT 4 M5X12
41 411 113 9109 SCR TRS 5X10 7 M5X10 TRS
42 411 002 4505 SCR FLT 5X8 8 M5X8 FLT
43 411 113 5002 SCR FLT 4X12 16 M4X12 FLT
46 411 114 7807 SCR PAN+SW+W 4X10 12
51 630 071 4548 RACK,P.C.B 1 741BC-11D-051
52 630 071 5453 UNIT,POWER 1 741BC-11D-052
53 630 062 8982 UNIT,POWER 1 741BC-11D-053
54 630 049 1449 UNIT,POWER 1 741BC-11D-054
55 630 049 0626 UNIT,POWER 1 741BC-11D-055
56 630 067 0158 UNIT,POWER 1 741BC-11D-056
57 630 080 4454 UNIT,I/O(SDD) 1 741BC-11D-057
58 630 053 2883 MOTOR,AC 5 741BC-11D-058
59 630 061 6538 ACCESSORY,MOT-M 5 741BC-11D-059
60 630 049 1128 ACCESSORY,MOT-M 5 741BC-11D-060
61 630 003 4981 HANDLE 2 741BC-11D-151
62 630 083 4277 HANDLE 2 741BC-11D-152
63 630 033 9505 MECH PARTS(RUBBER DAMPER) 4 741BC-11D-153
65 630 070 2019 MECH PARTS(WIRE NET) 1 741BC-11D-353
66 630 069 9821 SEAL 2 741BC-11D-359
67 630 069 7490 MECH PARTS 6 741BC-11D-360
71 630 085 2196 BOX 1 741BC-11V-071
72 630 084 3194 SUPPORT MECH 2 741BC-11V-072
73 630 084 3200 SUPPORT MECH 2 741BC-11V-073
76 630 084 3217 BRACKET 1 741BC-11V-076
78 630 084 3101 COVER(FRONT) 1 741BC-11V-078
MODEL TIM-5100
0008-001
制御ボックス部 CONTROL BOX SECTION

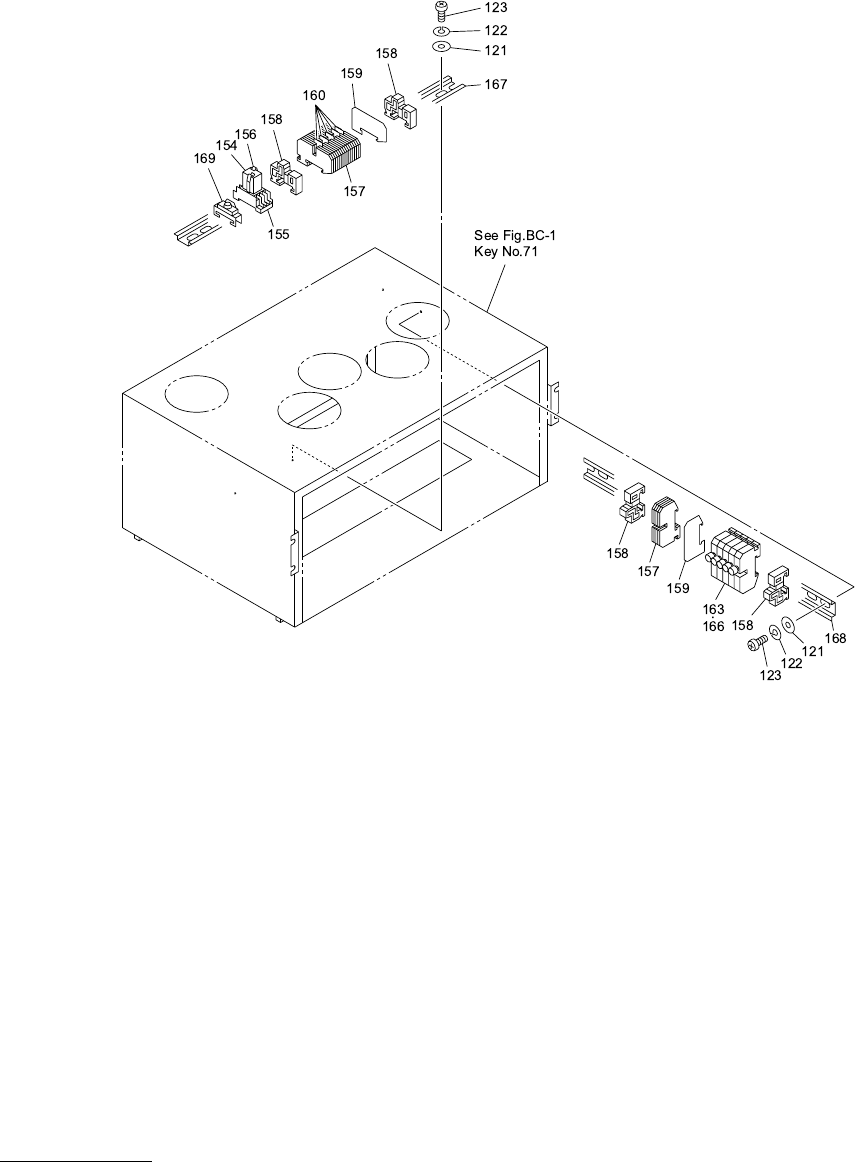

Fig. BC-2 制御ボックス（２） Control Box (2)
