MODEL TIM-5100 0008-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE BF-3 216 630 001 0220 W ASHER 4 BW 5 217 41 1 141 6705 WASHER SPR 5 4 SW 5 218 630 000 7756 BOL T ,HEX-SCT 4 M5X12 231 41 1 1 19 1909 WASHER V 3X7…
MODEL TIM-5100
0008-001
電源部 POWER SUPPLY SECTION

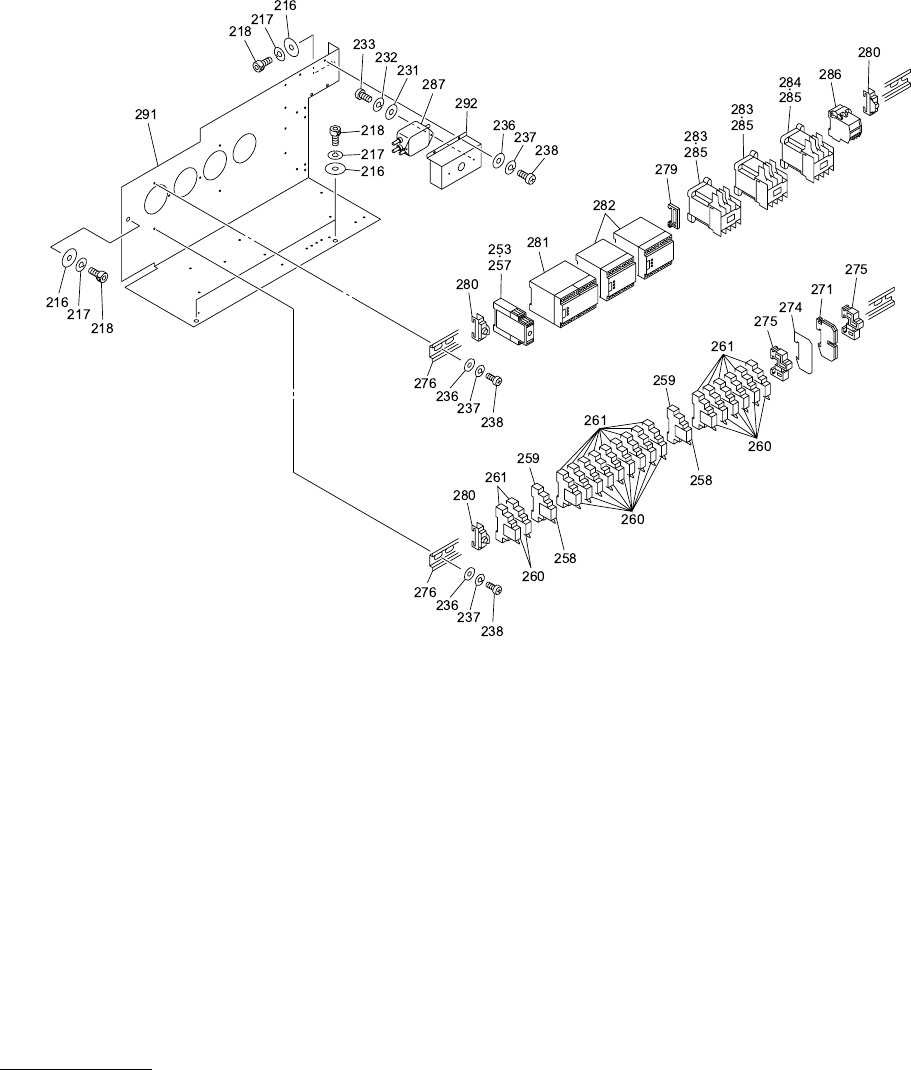

Fig. BF-3 電源２（２） Power Supply 2 (2)
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BF-3
216 630 001 0220 WASHER 4 BW5
217 411 141 6705 WASHER SPR 5 4 SW5
218 630 000 7756 BOLT,HEX-SCT 4 M5X12
231 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
232 411 086 4408 WASHER SPR 3 2 SW3 F
233 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
236 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
237 411 008 1706 WASHER SPR 4 8 SW4 F
238 411 043 5004 SCR PAN 4X8 8 M4X8 PAN
253 407 005 1306 DIODE DS135C 1 741BG-11D-659
257 630 082 3912 TIMER 1 741BG-11D-157
258 630 063 5423 RELAY 2 741BG-11D-158
259 630 063 5430 SOCKET 2 741BG-11D-159
260 630 068 9723 RELAY 17 741BG-11D-160
261 630 049 2064 SOCKET 17 741BG-11D-251
271 630 083 5472 TERMINAL 2 741BG-11D-351
274 630 083 5519 ACCESSORY,WIRING 1 741BG-11D-354
275 630 049 3672 BRACKET,WIRING 2 741BG-11D-355
276 630 089 6565 RAIL,WIRING 2 741BG-11D-356
279 630 000 1273 ACCESSORY,WIRING 1 741BG-11D-754
280 630 000 1051 BRACKET,WIRING 3 741BG-11D-755
281 630 071 5460 RELAY 1 741BG-11D-153
282 630 069 1283 RELAY 2 741BG-11D-560
283 630 049 2194 EM-CONTACTOR 2 741BG-11D-768
284 630 053 8601 EM-CONTACTOR 1 741BG-11D-854
285 407 140 4804 VARISTOR TNR15G470K 3 741BG-11D-058
286 630 083 5366 CIRCUIT PROTECTOR 1 741BG-11D-853
287 630 081 6594 FILTER,NOISE 1 741BG-11D-855
291 630 084 3309 PANEL 1 741BG-11V-073
292 630 084 3422 BRACKET 1 741BG-11V-079
MODEL TIM-5100
0008-001
電源部 POWER SUPPLY SECTION
Fig. BF-4 電源２（３） Power Supply 2 (3)
