MODEL TIM-5100 0008-001 電源部 POWER SUPPLY SECTION Fig. BF-5 電源２（４） Power Supply 2 (4)
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BF-4
336 411 119 2104 WASHER V 4X9X0.8 7 FW4 F
337 411 008 1706 WASHER SPR 4 7 SW4 F
338 411 043 5004 SCR PAN 4X8 7 M4X8 PAN
351 630 083 5472 TERMINAL 27 741BG-11D-351
352 630 083 5458 TERMINAL 8 741BG-11D-352
354 630 083 5519 ACCESSORY,WIRING 1 741BG-11D-354
355 630 049 3672 BRACKET,WIRING 4 741BG-11D-355
356 630 089 6565 RAIL,WIRING 1 741BG-11D-356
357 630 083 5496 FUSE HOLDER 12 741BG-11D-255
358 423 022 8203 FUSE 250V 3.15A 1 741BG-11D-358
359 423 025 1904 FUSE 250V 1.6A 1 741BG-11D-359
360 423 022 8005 FUSE 250V 1A 7 741BG-11D-360
362 423 022 8302 FUSE 250V 5A 3 741BG-11D-362
365 402 079 8909 WIRE WOUND 50 JE 80W 1 741BG-11D-365
376 630 058 8415 ACCESSORY,WIRING 1 741BG-11D-556
380 630 094 4396 RAIL,WIRING 1
381 630 083 5526 ACCESSORY,WIRING 1 741BG-11D-366
382 630 083 5502 ACCESSORY,WIRING 1 741BG-11D-367
383 630 083 6158 ACCESSORY,WIRING 1 741BG-11D-368
384 630 085 2158 ACCESSORY,WIRING 1 741BG-11D-369
385 630 083 5496 FUSE HOLDER 6 741BG-11D-253
386 630 083 5564 ACCESSORY,WIRING 4 741BG-11D-260
MODEL TIM-5100
0008-001
電源部 POWER SUPPLY SECTION

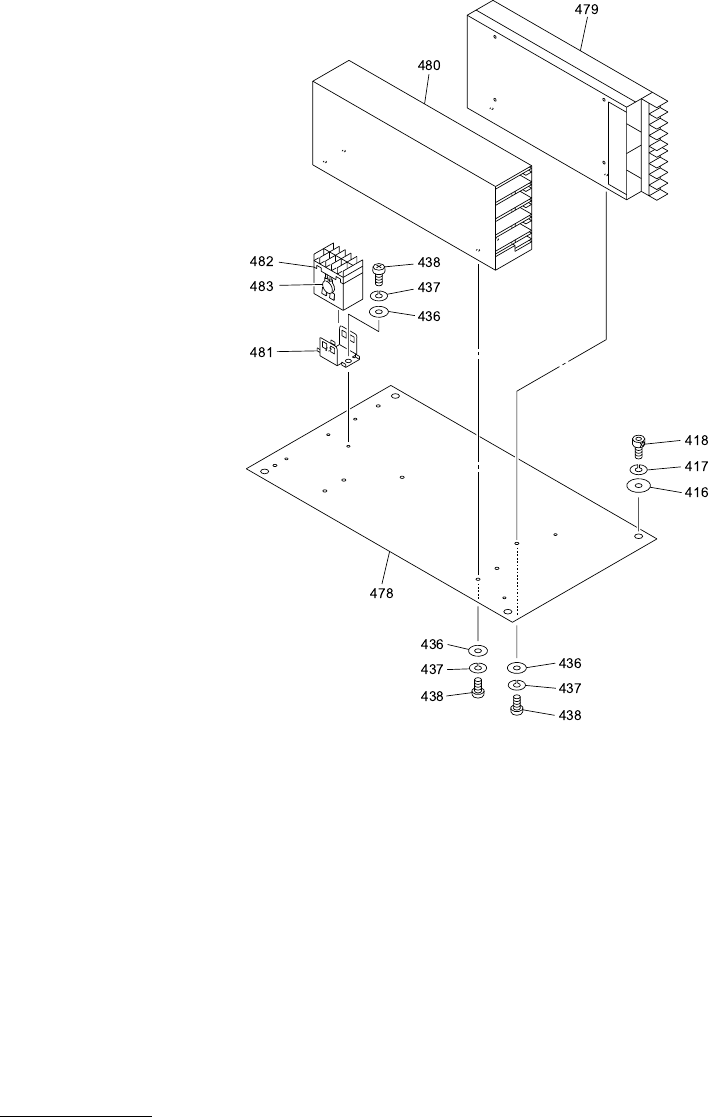

Fig. BF-5 電源２（４） Power Supply 2 (4)
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BF-5
416 630 001 0220 WASHER 4 BW5
417 411 141 6705 WASHER SPR 5 4 SW5
418 630 000 7756 BOLT,HEX-SCT 4 M5X12
436 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
437 411 008 1706 WASHER SPR 4 8 SW4 F
438 411 043 5004 SCR PAN 4X8 8 M4X8 PAN
478 630 084 3323 BRACKET 1 741BG-11V-078
479 630 083 0132 UNIT,POWER 1 741BG-11D-769
480 630 083 3294 UNIT,POWER 1 741BG-11D-766
481 630 049 2422 BRACKET,WIRING 1 741BG-11D-857
482 630 069 7278 RELAY 1 741BG-11D-856
483 407 140 4804 VARISTOR TNR15G470K 1
