電源部 POWER SUPPLY SECTION

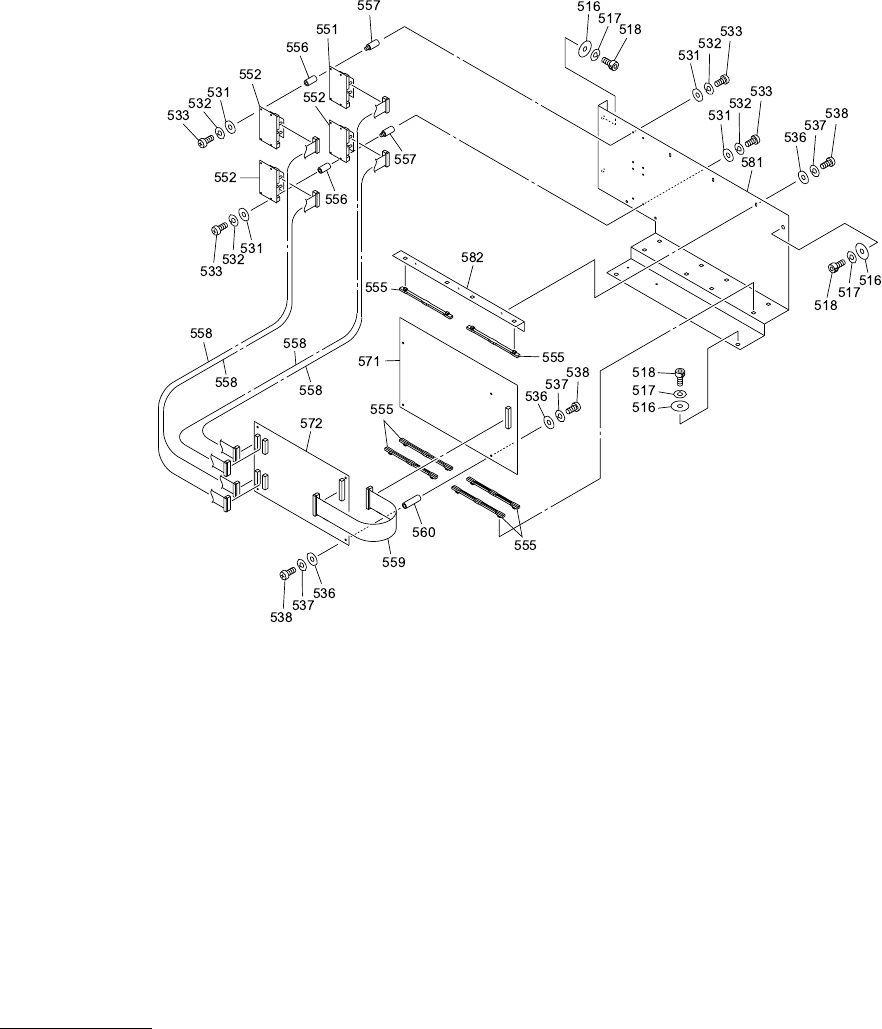

Fig. BF-6 ドライバＤＣパネル Driver DC Panel
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BF-6
516 630 001 0220 WASHER 5 BW5
517 411 141 6705 WASHER SPR 5 5 SW5
518 630 000 7756 BOLT,HEX-SCT 5 M5X12
531 411 119 1909 WASHER V 3X7X0.5 16 FW3 F
532 411 086 4408 WASHER SPR 3 16 SW3 F
533 411 042 0703 SCR PAN 3X8 16 M3X8 PAN
536 411 119 2104 WASHER V 4X9X0.8 11 FW4 F
537 411 008 1706 WASHER SPR 4 11 SW4 F
538 411 043 5004 SCR PAN 4X8 11 M4X8 PAN
551 630 071 2537 UNIT,I/O 1 741BH-11D-651
552 630 071 2544 UNIT,I/O 3 741BH-11D-652
555 630 077 2852 ACCESSORY,P.C.B 6 741BH-11D-655
556 630 069 1078 ACCESSORY,P.C.B 8 741BH-11D-656
557 630 077 5617 ACCESSORY,P.C.B 8 741BH-11D-657
558 630 077 3088 CORD 4 741BH-11D-658
559 630 077 4504 CORD 1 741BH-11D-659
560 630 077 4177 ACCESSORY,P.C.B 4 741BH-11D-660
571 630 077 4481 P.C.B,MOUNT 1 741BH-11U-751
572 630 089 9733 P.C.B,MOUNT 1 741BH-11U-752
581 630 084 3330 PANEL 1 741BH-11V-071
582 630 084 3347 SUPPORT 1 741BH-11V-073
MODEL TIM-5100
0008-001
電源部 POWER SUPPLY SECTION

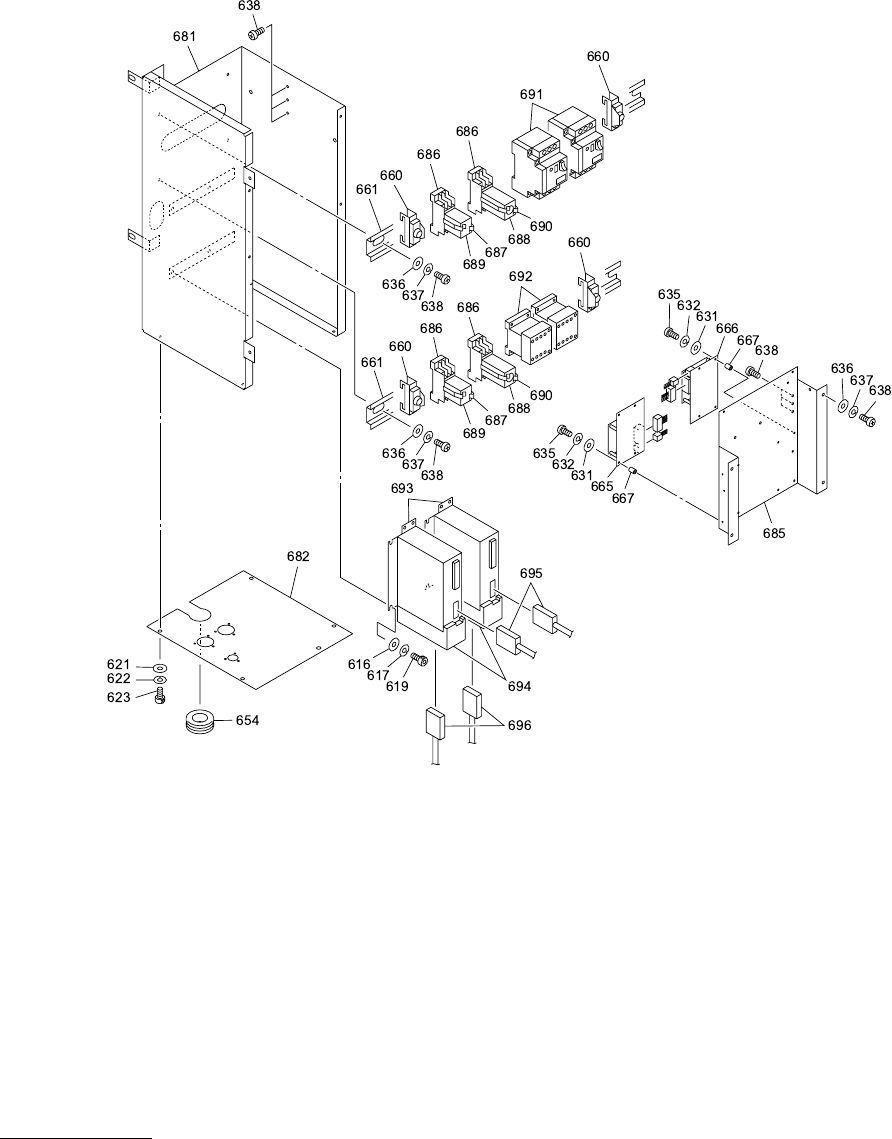

Fig. BF-7 電源４ Power Supply 4
