MODEL TIM-5100 0008-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE MC-1 2 unit/1 machine 1 630 068 6425 GUIDE,LINEAR 1 741MC-1 1H-001 2 630 032 7267 COUPLING 1 741MC-1 1H-002 3 630 069 0255 MOT OR,AC-SERVO 1 741MC…
MODEL TIM-5100
0008-001
異形ヘッドＲ部 DEFORM HEAD R SECTION

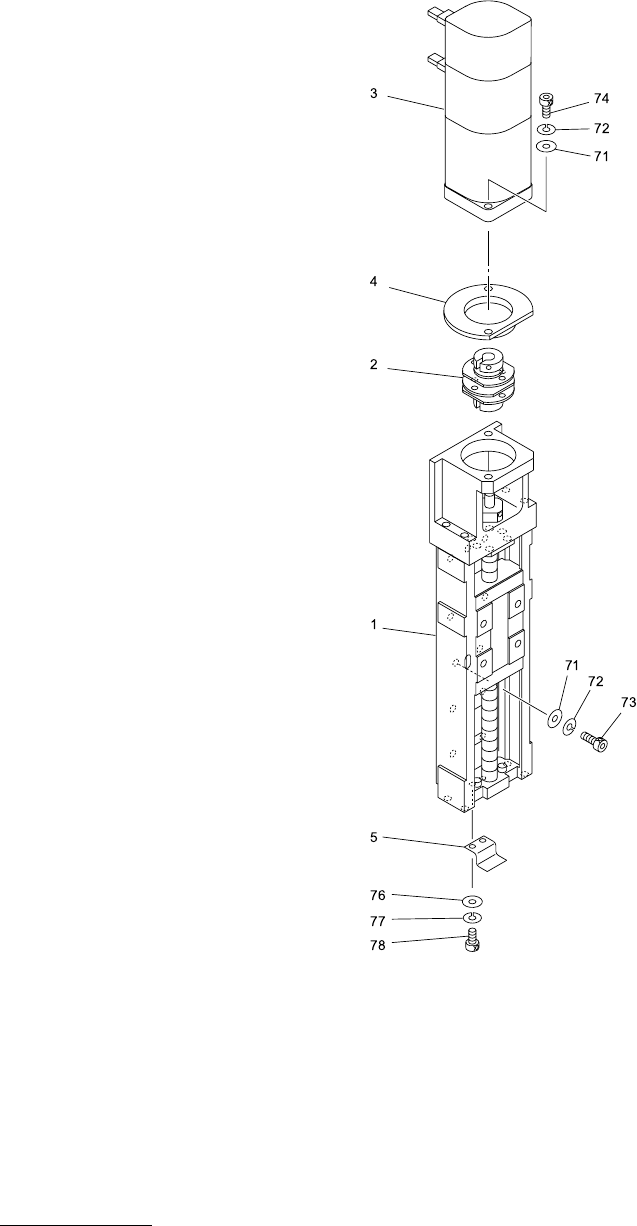

Fig. MC-1 Ｌ軸駆動ユニット L Axis Driver Unit
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MC-1 2 unit/1 machine
1 630 068 6425 GUIDE,LINEAR 1 741MC-11H-001
2 630 032 7267 COUPLING 1 741MC-11H-002
3 630 069 0255 MOTOR,AC-SERVO 1 741MC-11H-003
4 630 085 4336 SPACER 1 741MC-11B-004
5 630 074 0950 COVER 1 741MC-11B-005
71 411 141 4008 WASHER V 4X9X0.8 8 FW4
72 411 141 2905 WASHER SPR 4 8 SW4
73 630 000 7633 BOLT,HEX-SCT 6 M4X12
74 630 000 7657 BOLT,HEX-SCT 2 M4X16
76 411 141 3902 WASHER V 3X7X0.5 2 FW3
77 411 141 2806 WASHER SPR 3 2 SW3
78 630 000 7510 BOLT,HEX-SCT 2 M3X8
MODEL TIM-5100
0008-001
異形ヘッドＲ部 DEFORM HEAD R SECTION

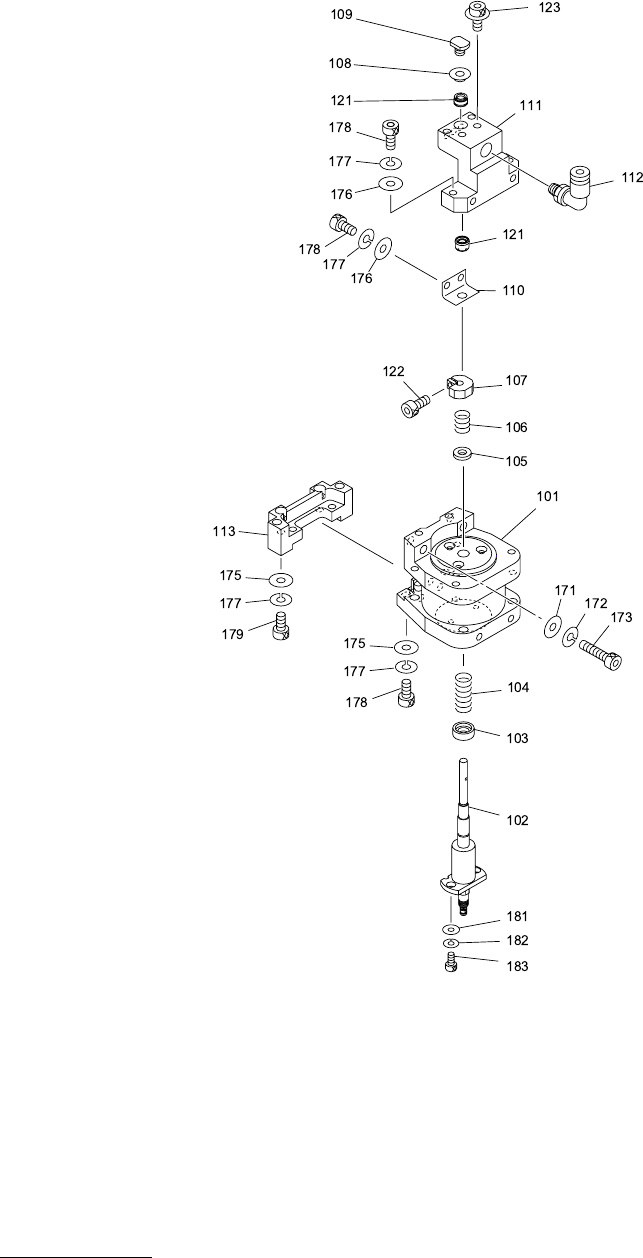

Fig. MC-2 ＤＤモータ部 DD Motor Section
