MODEL TIM-5100 0008-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE MC-4 2 unit/1 machine 301 630 000 0245 SENSOR,PHOTO 7 741MC-1 1H-301 302 630 000 0269 SENSOR,PHOTO(CONNECT OR) 7 741MC-1 1H-302 303 630 068 6043 B…
MODEL TIM-5100
0008-001
異形ヘッドＲ部 DEFORM HEAD R SECTION

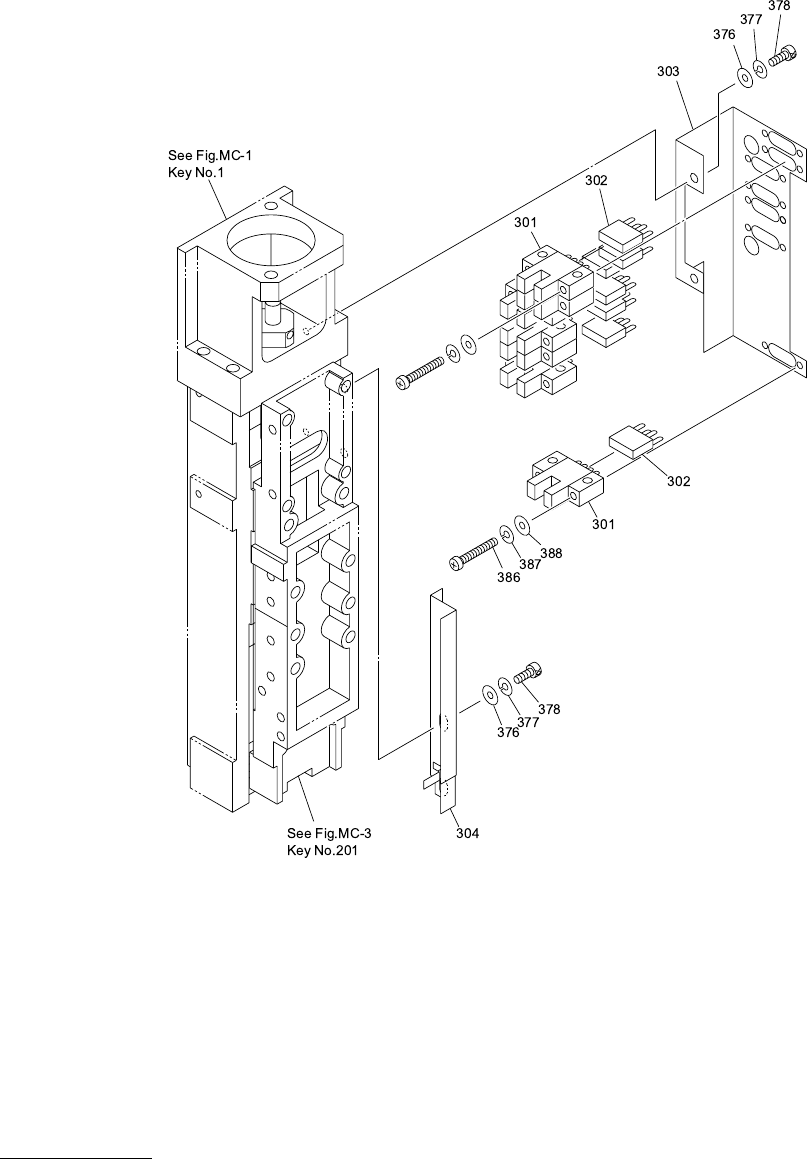

Fig. MC-4 Ｌ軸レベル検出部 L Axis Level Detector
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MC-4 2 unit/1 machine
301 630 000 0245 SENSOR,PHOTO 7 741MC-11H-301
302 630 000 0269 SENSOR,PHOTO(CONNECTOR) 7 741MC-11H-302
303 630 068 6043 BRACKET 1 741MC-11B-808
304 630 074 1001 PLATE 1 741MC-11B-807
376 411 141 3902 WASHER V 3X7X0.5 4 FW3
377 411 141 2806 WASHER SPR 3 4 SW3
378 630 000 7510 BOLT,HEX-SCT 4 M3X8
386 411 119 1909 WASHER V 3X7X0.5 14 FW3 F
387 411 086 4408 WASHER SPR 3 14 SW3 F
388 411 162 1604 SCR PAN 3X20 14 M3X20 PAN
MODEL TIM-5100
0008-001
異形ヘッドＲ部 DEFORM HEAD R SECTION
Fig. MC-5 ノズルクランプ部 Nozzle Clamp Section
