MODEL TIM-5100
0008-001
異形ヘッドＲ部 DEFORM HEAD R SECTION

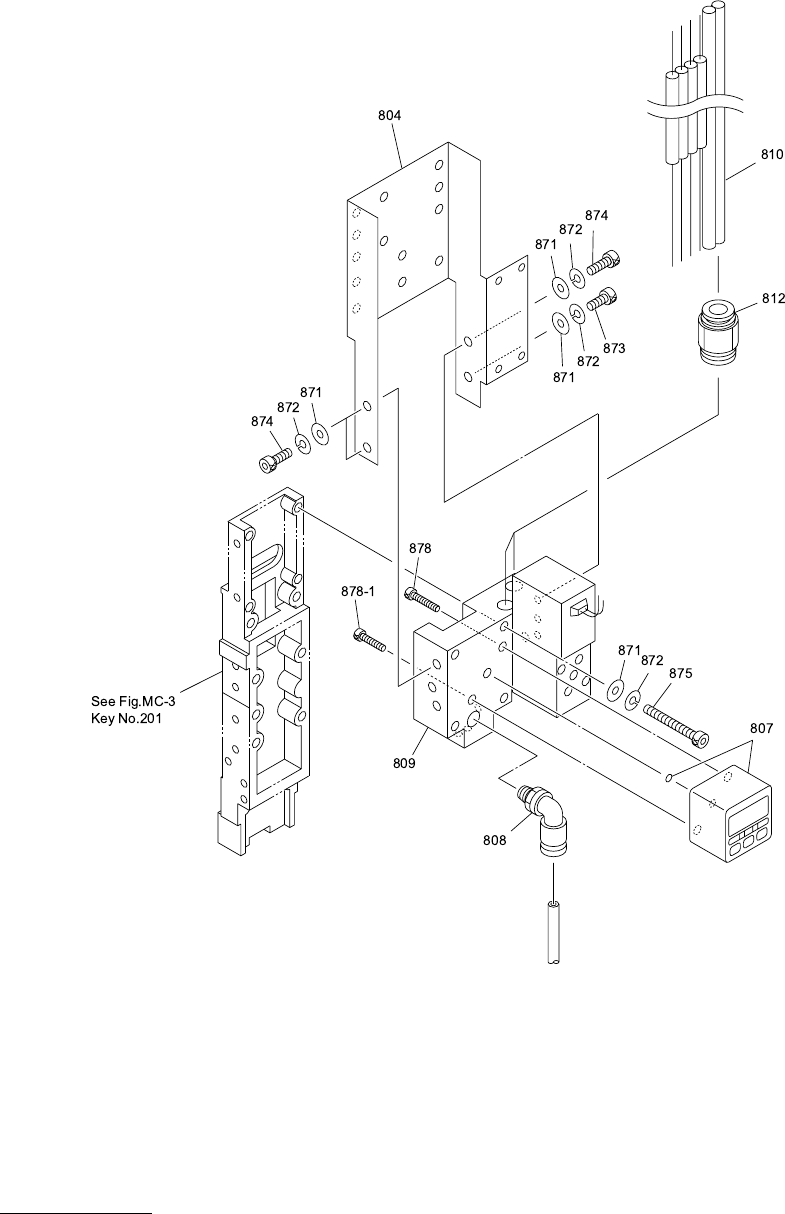

Fig. MC-9 マニホールド Manihold
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MC-9 2 unit/1 machine
804 630 074 0998 BRACKET 1 741MC-11B-804
807 630 083 3997 SWITCH,PRESSURE 1 741MC-11H-207
808 630 003 7302 PIPE FITTINGS 1 741MC-11H-208
809 630 069 5366 BLOCK 1 741MC-11H-809
810 630 069 5663 TUBE 1 741MC-11H-810
812 630 003 6985 PIPE FITTINGS 2
871 411 141 4008 WASHER V 4X9X0.8 8 FW4
872 411 141 2905 WASHER SPR 4 8 SW4
873 630 000 7626 BOLT,HEX-SCT 1 M4X10
874 630 000 7633 BOLT,HEX-SCT 3 M4X12
875 630 000 7688 BOLT,HEX-SCT 4 M4X30
878 630 000 7558 BOLT,HEX-SCT 1 M3X16
879 630 000 7541 BOLT,HEX-SCT 1 M3X14
MODEL TIM-5100
0008-001
コンベア部 CONVEYOR SECTION

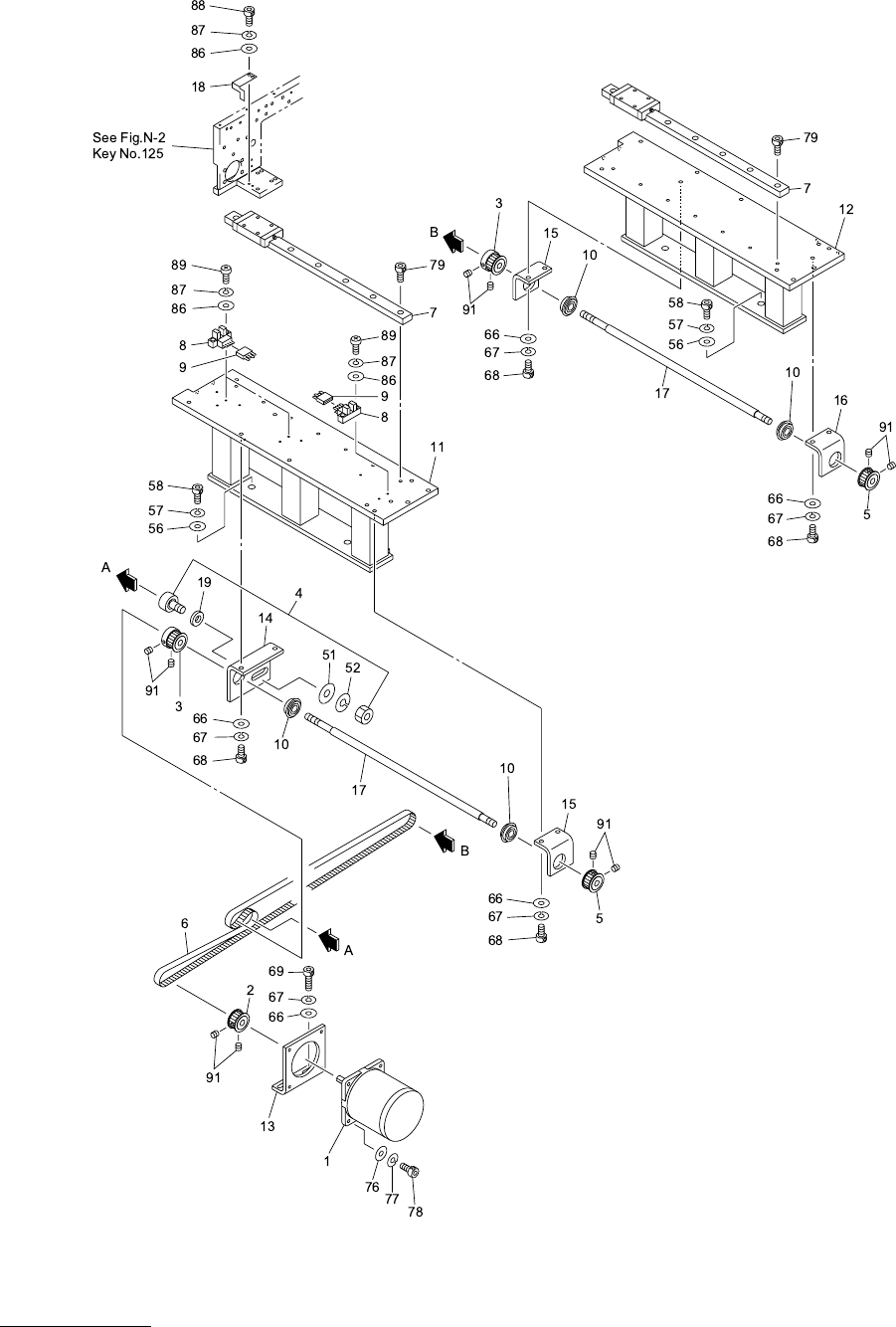

Fig. N-1 コンベアベ－ス Conveyor Base
