P-310-004(1_2) - 第101页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 101 0920H160 BASE 2 1 1 1 109200716G-001 102 222L0985 GUIDE_LINEAR 2 1 1 1 109200716G-002 103 0920H14Y BLOCK 2 1 1 1 109200716G-003 104 21 1AC891 COVER 2 1 1 1 109200716G-…
128
128
See Fig C2-5
Key No.403
129
130
129
130
See Fig C2-5
Key No.403
125
126
127
144
147
128
129
130
145
146
147
141
125
128
129
130
115
125
104
114
101
See Fig C2-3
Key No.201
See Fig C2-6
Key No.501
103
120
148
142
102
135
131
109
113
143
M63
09207102
X6303
X6305
121
123
124
125
118
119
117
116
Fig. C2-2
テープガイド、モータ
Tape Guide, Motor
1104-004
Fig. C2
カッタ部
CUTTER SECTION
UNIT-2
Fig.C2
CUTTER 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
101 0920H160 BASE 2 1 1 1 109200716G-001
102 222L0985 GUIDE_LINEAR 2 1 1 1 109200716G-002
103 0920H14Y BLOCK 2 1 1 1 109200716G-003
104 211AC891 COVER 2 1 1 1 109200716G-004
109
223L0385
BELT_TIMING 2 1 1 1 109200716G-009
113 211AD295 COVER 2 1 1 1 109200716G-013
114 211AC892 COVER 2 1 1 1 109200716G-014
115 226B0032 GREASE NIPPLE 4 2 2 2 109200716G-015
116 210A3062 BASE 2 1 1 1 109200716G-016
117 211G5939 BLOCK 2 1 1 1 109200716G-017
118 211FD727 BRACKET 2 1 1 1 109200716G-018
119 221EA131 ROHS:BU_BOLT_HEX-SCT 4 2 2 2 BUTTAN M3L6 109200716G-019
120 221AA004 ROHS:BOLT_HEX-SCT 16 8 8 8 M3L4 109200716G-020
121 221AA005 ROHS:BOLT_HEX-SCT 4 2 2 2 M3L6 109200716G-021
123 221HA003 WASHER 4 2 2 2 SW3 109200716G-023
124 221HA103 WASHER 10 5 5 5 FW3 109200716G-024
125 221AA016 ROHS:BOLT_HEX-SCT 52 26 26 26 M4L8 109200716G-025
126 221HA004 WASHER 4 2 2 2 SW4 109200716G-026
127 221HA104 WASHER 4 2 2 2 FW4 109200716G-027
128 221AA030 ROHS:BOLT_HEX-SCT 16 8 8 8 M5L12
109200716G-028
129 221HA005 WASHER 16 8 8 8 SW5 109200716G-029
130 221HA105 WASHER 16 8 8 8 FW5 109200716G-030
131 221DA207 MACHINE SCREW 8 4 4 4 TRS M4L6
109200716G-031
135 0920H14F O_RING 4 2 2 2 109200716G-035
141 211FE262 BRACKET 2 1 1 1 3092007102-001
142 223Q0551 PULLEY_TIMING 2 1 1 1 3092007102-002
143 4M150265 MOTOR_AC-SERVO 2 1 1 1 3092007102-003
144 221AA031 ROHS:BOLT_HEX-SCT 8 4 4 4 M5L16
3092007102-004
145 221FA009 NUT_HEX 8 4 4 4 M5 3092007102-005
146 221HA005 WASHER 8 4 4 4 SW5 3092007102-006
147 221HA105 WASHER 16 8 8 8 FW5 3092007102-007
148 221CA027 SET_SCREW 4 2 2 2 SET
M4L4 3092007102-008
Fig. C2
1104-004
Fig. C2-2
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-2
Fig. C2
CUTTER 1
218
220
221
See Fig C2-4
Key No.311
236
233
232
233
212
213
214
235
235
201
215
204
216
217
219
231
203
234
208
209
207
220
221
09207107
B6302
X6307

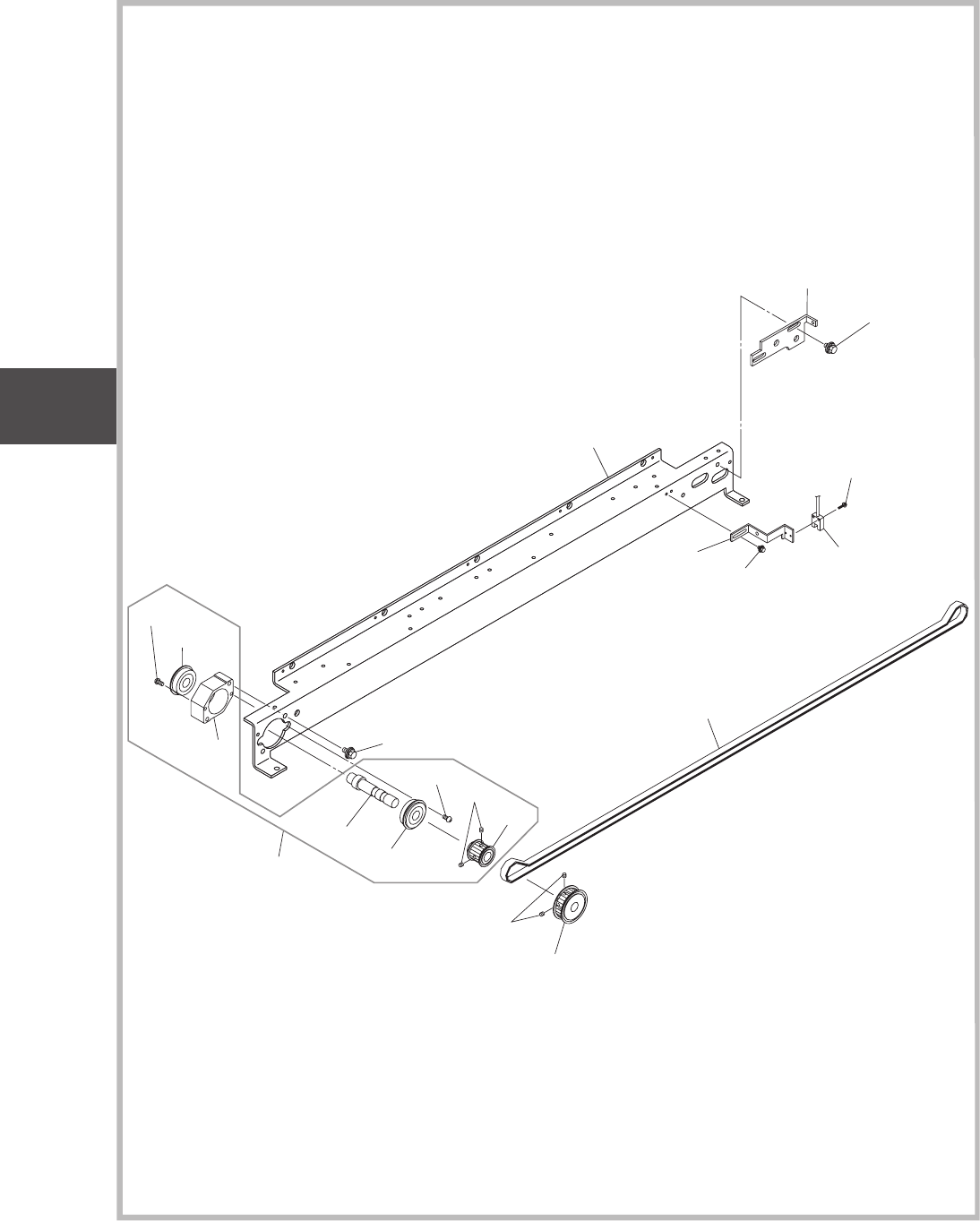

Fig. C2-3
プーリ、ベルト
Pully, Belt
1104-003
Fig. C2
カッタ部
CUTTER SECTION
UNIT-2
Fig.C2
CUTTER 1
