P-310-004(1_2) - 第104页
317 306 307 308 303 301 31 1 302 See Fig C2-3 Key No.201 320 321 322 304 316 312 319 323 318 315 314 318 313 305 09207103 09207104 Fig. C2-4 プーリー２ Pully 2 1 104-003 Fig. C2 カッタ部 CUTTER SECTION UNIT -2 Fig.C2 CUTTER 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
201 210B4423 FRAME 2 1 1 1 1092007108-001
203 211FD982 BRACKET 2 1 1 1
1092007108-003
204 09207200 ASSY_SENSOR 2 1 1 1
1092007108-004
207 223Q0766 PULLEY_TIMING 2 1 1 1
1092007108-007
208 223L0386 BELT_TIMING 2 1 1 1
1092007108-008
209 221CA027 SET_SCREW 4 2 2 2
SET M4L4 1092007108-009
212 221DA004 MACHINE SCREW 4 2 2 2
PAN M2L10 1092007108-012
213 221HA001 WASHER 4 2 2 2
SW2 1092007108-013
214 221HA101 WASHER 4 2 2 2
FW2 1092007108-014
215 221AA005 ROHS:BOLT_HEX-SCT 4 2 2 2
M3L6 1092007108-015
216 221HA003 WASHER 4 2 2 2
SW3 1092007108-016
217 221HA103 WASHER 4 2 2 2
FW3 1092007108-017
218 221AA029 ROHS:BOLT_HEX-SCT 4 2 2 2
M5L10 1092007108-018
219 221AA030 ROHS:BOLT_HEX-SCT 4 2 2 2
M5L12 1092007108-019
220 221HA005 WASHER 8 4 4 4
SW5 1092007108-020
221 221HA105 WASHER 8 4 4 4
FW5 1092007108-021
231 213A1604 SHAFT 2 1 1 1
3092007107-001
232 211G5997 BLOCK 2 1 1 1
3092007107-002
233 222D0086 BEARING_RADIAL 4 2 2 2
3092007107-003
234 223Q0751 PULLEY_TIMING 2 1 1 1
3092007107-004
235 221DA208 MACHINE SCREW 8 4 4 4
TRS M4L8 3092007107-005
236 221CA027 SET_SCREW 4 2 2 2
SET M4L4 3092007107-006
Fig. C2
1104-004
Fig. C2-3
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-2
Fig. C2
CUTTER 1
317
306
307
308
303
301
311
302
See Fig C2-3
Key No.201
320
321
322
304
316
312
319
323
318
315
314
318
313
305
09207103
09207104

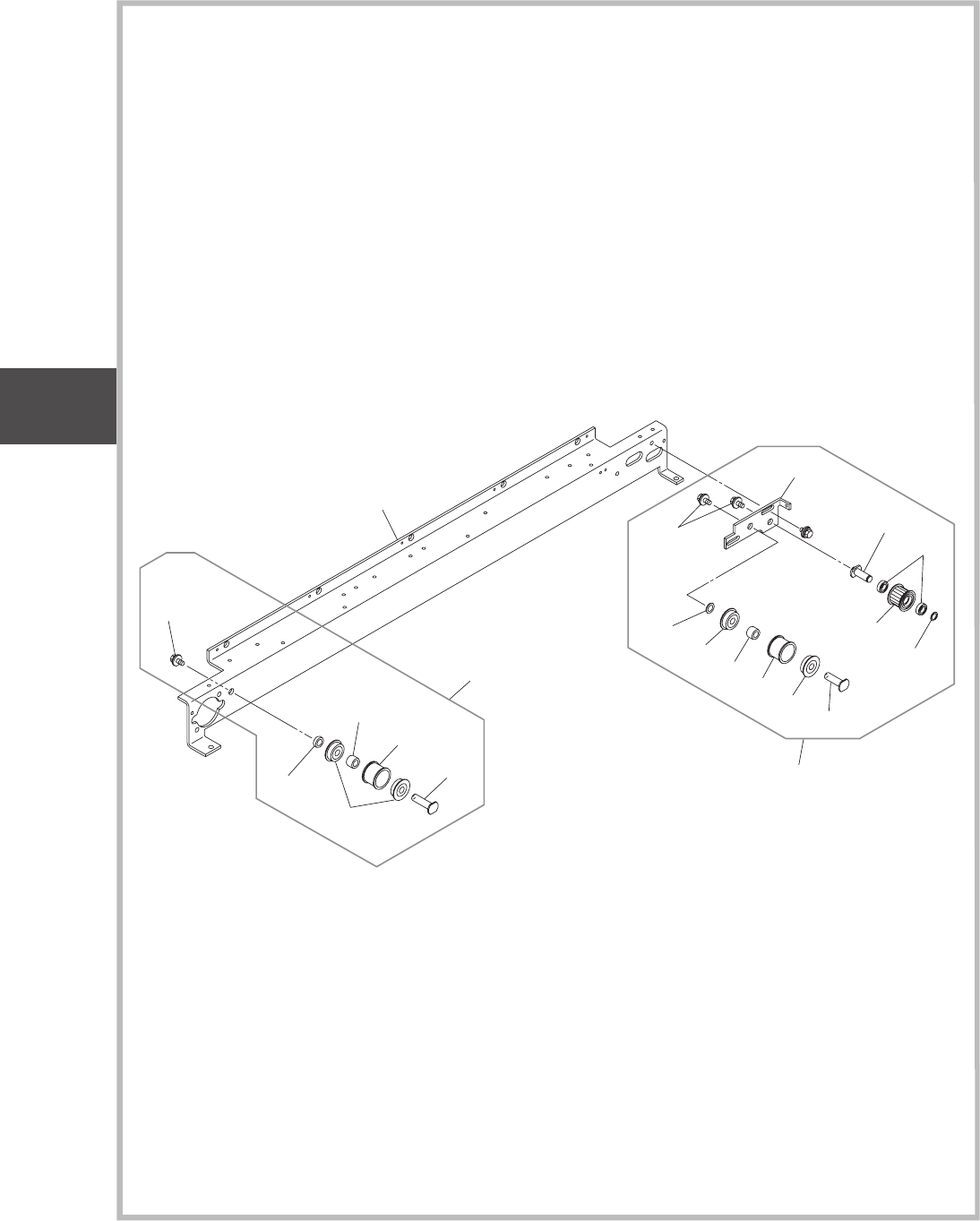

Fig. C2-4
プーリー２
Pully 2
1104-003
Fig. C2
カッタ部
CUTTER SECTION
UNIT-2
Fig.C2
CUTTER 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
301 213A1571 SHAFT 2 1 1 1 4092007103-001
302 216A1598 COLLAR 2 1 1 1
4092007103-002
303 216A1596 COLLAR 2 1 1 1
4092007103-003
304 216A1597 COLLAR 2 1 1 1
4092007103-004
305 222D0343 BEARING_RADIAL 4 2 2 2
4092007103-005
306 221AA030 ROHS:BOLT_HEX-SCT 2 1 1 1
M5L12 4092007103-006
307 221HA005 WASHER 2 1 1 1
SW5 4092007103-007
308 221HA105 WASHER 2 1 1 1
FW5 4092007103-008
311 211DE427 PLATE 2 1 1 1
3092007104-001
312 213A1602 SHAFT 2 1 1 1
3092007104-002
313 213A1573 SHAFT 2 1 1 1
3092007104-003
314 216A1598 COLLAR 2 1 1 1
3092007104-004
315 216A1596 COLLAR 2 1 1 1
3092007104-005
316 216A1599 COLLAR 2 1 1 1
3092007104-006
317 222D0429 BEARING_RADIAL 4 2 2 2
3092007104-007
318 222D0343 BEARING_RADIAL 4 2 2 2
3092007104-008
319 223Q0750 PULLEY_TIMING 2 1 1 1
3092007104-009
320 221AA030 ROHS:BOLT_HEX-SCT 4 2 2 2
M5L12 3092007104-010
321 221HA005 WASHER 4 2 2 2
SW5 3092007104-011
322 221HA105 WASHER 4 2 2 2
FW5 3092007104-012
323 221K0007 RING 2 1 1 1
3092007104-013
Fig. C2
1104-004
Fig. C2-4
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-2
Fig. C2
CUTTER 1
