P-310-004(1_2) - 第106页
419 417 418 406 403 409 415 401 405 415 404 414 414 408 432 415 410 414 406 415 403 416 417 418 416 417 418 431 407 414 405 402 41 1 404 419 417 418 441 407 442 0920715E 09207152 Fig. C2-5 クランプバー Clump Bar 1 104-004 Fig.…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
301 213A1571 SHAFT 2 1 1 1 4092007103-001
302 216A1598 COLLAR 2 1 1 1
4092007103-002
303 216A1596 COLLAR 2 1 1 1
4092007103-003
304 216A1597 COLLAR 2 1 1 1
4092007103-004
305 222D0343 BEARING_RADIAL 4 2 2 2
4092007103-005
306 221AA030 ROHS:BOLT_HEX-SCT 2 1 1 1
M5L12 4092007103-006
307 221HA005 WASHER 2 1 1 1
SW5 4092007103-007
308 221HA105 WASHER 2 1 1 1
FW5 4092007103-008
311 211DE427 PLATE 2 1 1 1
3092007104-001
312 213A1602 SHAFT 2 1 1 1
3092007104-002
313 213A1573 SHAFT 2 1 1 1
3092007104-003
314 216A1598 COLLAR 2 1 1 1
3092007104-004
315 216A1596 COLLAR 2 1 1 1
3092007104-005
316 216A1599 COLLAR 2 1 1 1
3092007104-006
317 222D0429 BEARING_RADIAL 4 2 2 2
3092007104-007
318 222D0343 BEARING_RADIAL 4 2 2 2
3092007104-008
319 223Q0750 PULLEY_TIMING 2 1 1 1
3092007104-009
320 221AA030 ROHS:BOLT_HEX-SCT 4 2 2 2
M5L12 3092007104-010
321 221HA005 WASHER 4 2 2 2
SW5 3092007104-011
322 221HA105 WASHER 4 2 2 2
FW5 3092007104-012
323 221K0007 RING 2 1 1 1
3092007104-013
Fig. C2
1104-004
Fig. C2-4
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-2
Fig. C2
CUTTER 1
419
417
418
406
403
409
415
401
405
415
404
414
414
408
432
415
410
414
406
415
403
416
417
418
416
417
418
431
407
414
405
402
411
404
419
417
418
441
407
442
0920715E
09207152

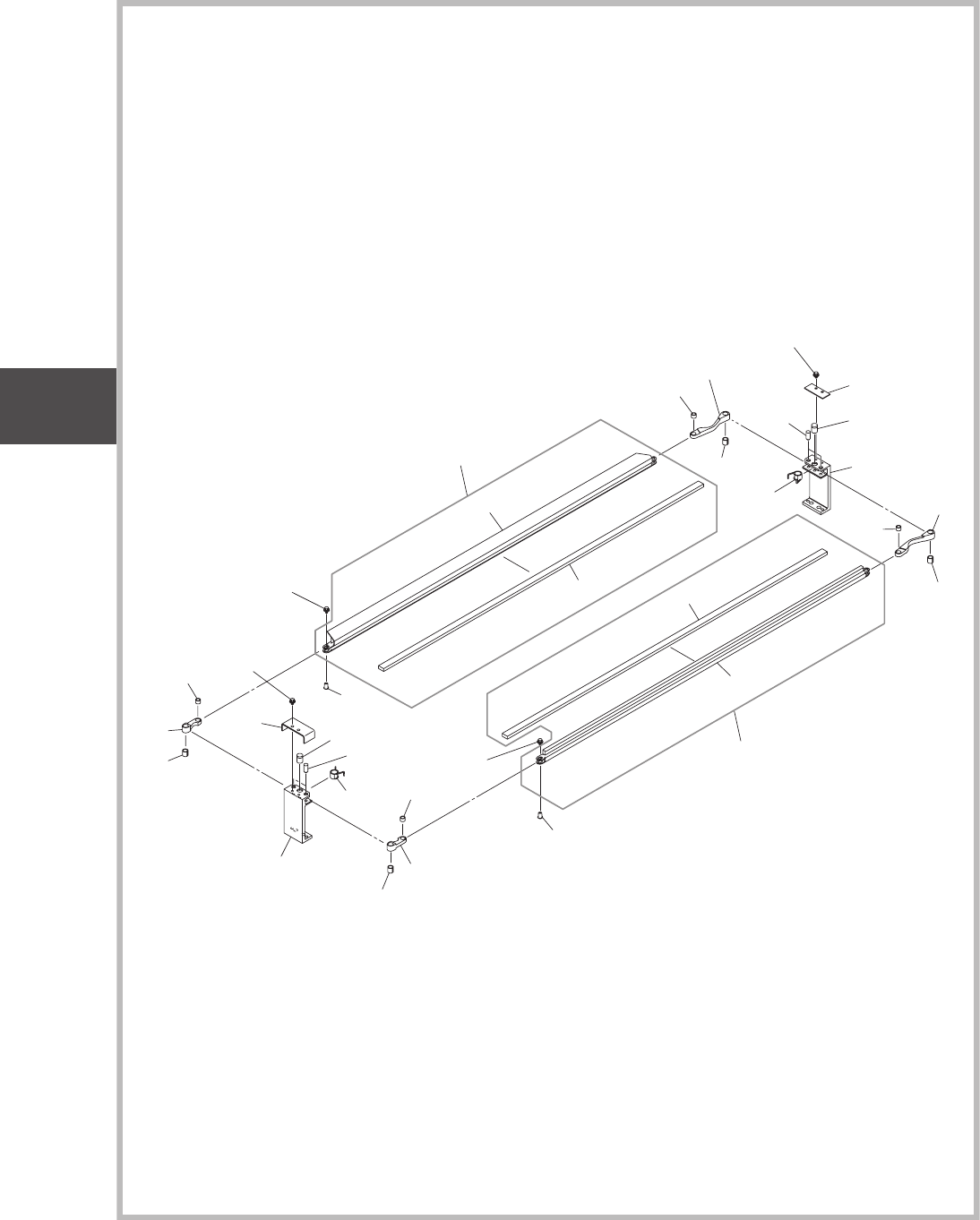

Fig. C2-5
クランプバー
Clump Bar
1104-004
Fig. C2
カッタ部
CUTTER SECTION
UNIT-2
Fig.C2
CUTTER 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
401 211DE955 PLATE 2 1 1 1 209200715S-001
402 211FE952 BRACKET 2 1 1 1
209200715S-002
403 211G6341 BLOCK 4 2 2 2
209200715S-003
404 222P0203 SPRING_TORSION 4 2 2 2
209200715S-004
405 216D0443 PIN_HINGE 8 4 4 4
209200715S-005
406 216D0444 PIN_HINGE 4 2 2 2
209200715S-006
407 216D0608 PIN_HINGE 8 4 4 4
209200715S-007
408 0920H15Q LEVER 2 1 1 1
209200715S-008
409 0920H15R LEVER 2 1 1 1
209200715S-009
410 216S2820 LEVER 2 1 1 1
209200715S-010
411 216S2821 LEVER 2 1 1 1
209200715S-011
414 222A0150 BUSH_BEARING 8 4 4 4
209200715S-014
415 222A0149 BUSH_BEARING 8 4 4 4
209200715S-015
416 221AA005 ROHS:BOLT_HEX-SCT 8 4 4 4
M3L6 209200715S-016
417 221HA003 WASHER 16 8 8 8
SW3 209200715S-017
418 221HA103 WASHER 16 8 8 8
FW3 209200715S-018
419 221AA004 ROHS:BOLT_HEX-SCT 8 4 4 4
M3L4 209200715S-019
431 0920H15G LEVER 2 1 1 1
409200715E-001
432 0920H12X MECH_PARTS 2 1 1 1
409200715E-002
441 0920H150 LEVER 2 1 1 1
4092007152-001
442 0920H153 CLAMP_GUM 2 1 1 1
4092007152-002
Fig. C2
1104-004
Fig. C2-5
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-2
Fig. C2
CUTTER 1
