P-310-004(1_2) - 第109页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 501 0920H147 BASE 2 1 1 1 109200712V -001 502 0920H13U BLOCK 2 1 1 1 109200712V -002 503 216B1514 HOLDER 2 1 1 1 109200712V -003 504 0920H12A HOLDER 2 1 1 1 109200712V -00…
503
515
512
508
507
524
504
505
543
539
509
513
517
510
501
506
541
540
542
502
511
516
514
523
522
521
517
519
518
520
525
528
534
530
538
538
529
529
544
537
537
548
547
546
545
537
536
535
533
528
531
527
533
529
531
537

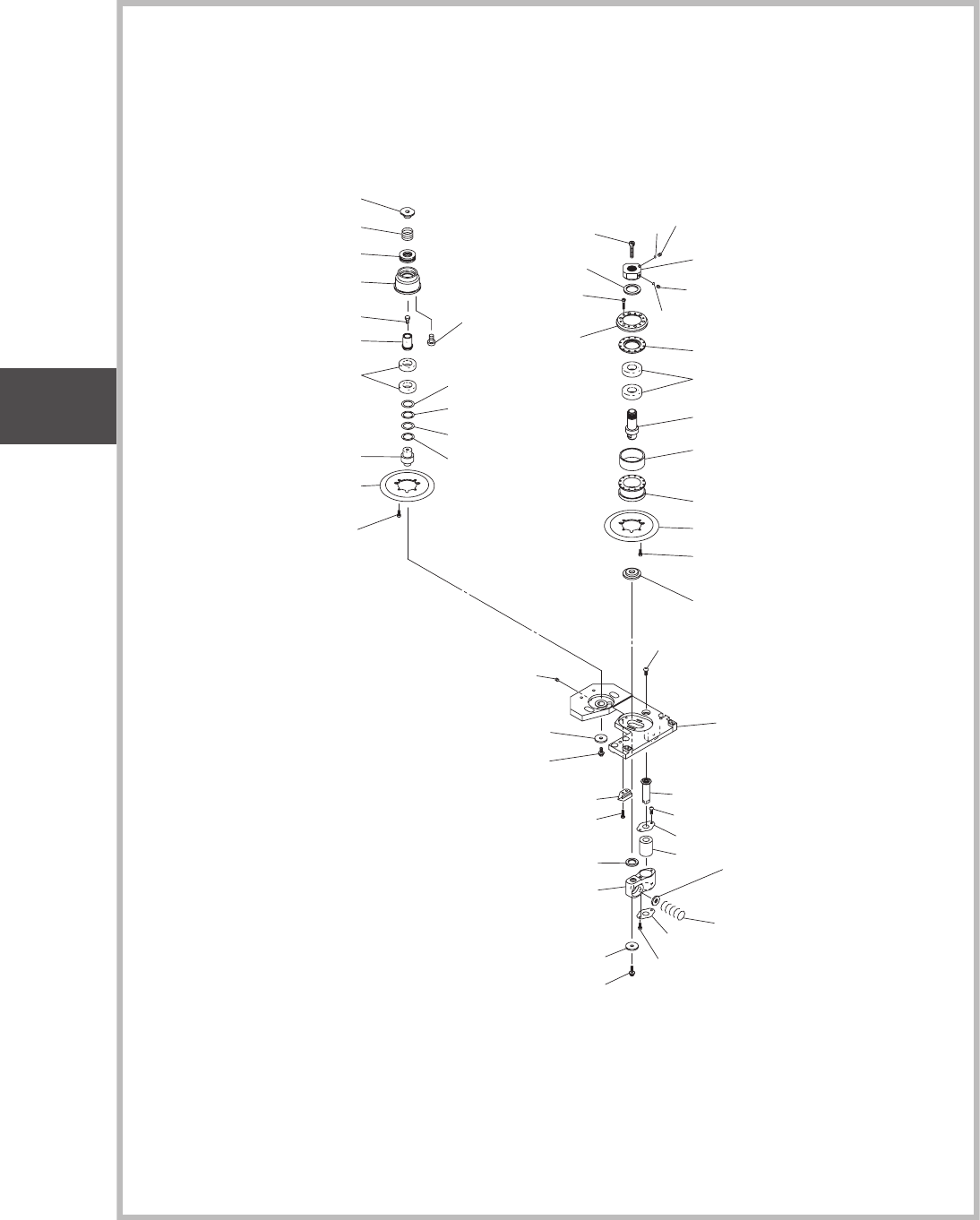

Fig. C2-6
カッタ
Cutter
1007-003
Fig. C2
カッタ部
CUTTER SECTION
UNIT-2
Fig.C2
CUTTER 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
501 0920H147 BASE 2 1 1 1 109200712V-001
502 0920H13U BLOCK 2 1 1 1
109200712V-002
503 216B1514 HOLDER 2 1 1 1
109200712V-003
504 0920H12A HOLDER 2 1 1 1
109200712V-004
505 0920H156 HOLDER 2 1 1 1
109200712V-005
506 0920H12H PIN 2 1 1 1
109200712V-006
507 213A1411 SHAFT 2 1 1 1
109200712V-007
508 213A1610 SHAFT 2 1 1 1
109200712V-008
509 0920H14Z SHAFT 2 1 1 1
109200712V-009
510 0920H12L GUIDE 2 1 1 1
109200712V-010
511 0920H13F GUIDE 2 1 1 1
109200712V-011
512 0920H12T GUIDE 2 1 1 1
109200712V-012
513 0920H15H GUIDE 2 1 1 1
109200712V-013
514 0920H12K SPRING_COMP 2 1 1 1
109200712V-014
515 222M1378 SPRING_COMP 2 1 1 1
109200712V-015
516 0920H14G LEVER 2 1 1 1
109200712V-016
517 0920H127 DISK 4 2 2 2
109200712V-017
518 222D0376 BEARING_RADIAL 4 2 2 2
109200712V-018
519 222E0017 BEARING_THRUST 2 1 1 1
109200712V-019
520 222D0412 BEARING,RADIAL(ANGYURA) 4 2 2 2 109200712V-020
521 21
1DC026 PLATE 2 1 1 1
109200712V-021
522 211DC027 PLATE 2 1 1 1
109200712V-022
523 211DC028 PLATE 2 1 1 1
109200712V-023
524 211DC029 PLATE 2 1 1 1
109200712V-024
525 0920H159 SEAL 2 1 1 1
109200712V-025
527 221AA115 ROHS:BOLT_HEX-SCT 4 2 2 2
M2L8 109200712V-027
528 221AA006 ROHS:BOLT_HEX-SCT 4 2 2 2
M3L8 109200712V-028
529 221CB002 ROHS:BOLT_HEX-SCT 4 2 2 2
109200712V-029
530 0920H15J ROHS:BOLT_HEX-SCT 2 1 1 1
M4L25 109200712V-030
531 221HA003 WASHER 2 1 1 1
SW3 109200712V-031
533 221HA301 BW03W 2 1 1 1
BW3 109200712V-033
534 221DA218 ROHS:MACHINE SCREW 8 4 4 4 TRS M2L3 109200712V-034
535 221CA001 SET SCREW 2 1 1 1
SET M3L4 109200712V-035
536 0920H11N BOLT_HEX-SCT 2 1 1 1
BUTTAN M5L10 109200712V-036
537 221A0231 BOLT_HEX-SCT 20 10 10 10
BUTTAN M3L4 109200712V-037
538 0920H12B LOCKING_METAL 4 2 2 2
109200712V-038
539 0920H12D COLLER 2 1 1 1
109200712V-039
540 0920H12E BEARING 2 1 1 1
109200712V-040
541 0920H12F COVER1 2 1 1 1
109200712V-041
542 0920H12G COVER2 2 1 1 1
109200712V-042
543 0920H15A SEAL_COVER 2 1 1 1
109200712V-043
544 0920H158 BOLT_HEX-SCT 24 12 12 12
M1.6L5 109200712V-044
545 0920H15K COLLAR05 4 2 2 2
109200712V-045
546 0920H15L COLLAR03 4 2 2 2
109200712V-046
547 0920H15M COLLAR02 2 1 1 1
109200712V-047
Fig. C2
1104-004
Fig. C2-6
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-2
Fig. C2
CUTTER 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
548 0920H15N COLLAR01 2 1 1 1 109200712V-048
