P-310-004(1_2) - 第127页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 201 21 1B1507 BOX 1 1 1 1 2091401A00-001 202 21 1DE285 PLA TE 1 1 1 1 2091401A00-002 204 21 1AD718 COVER 1 1 1 1 2091401A00-004 205 4B1 1 1618 PCB_MOUNT(UB82) 1 1 1 1 2091…

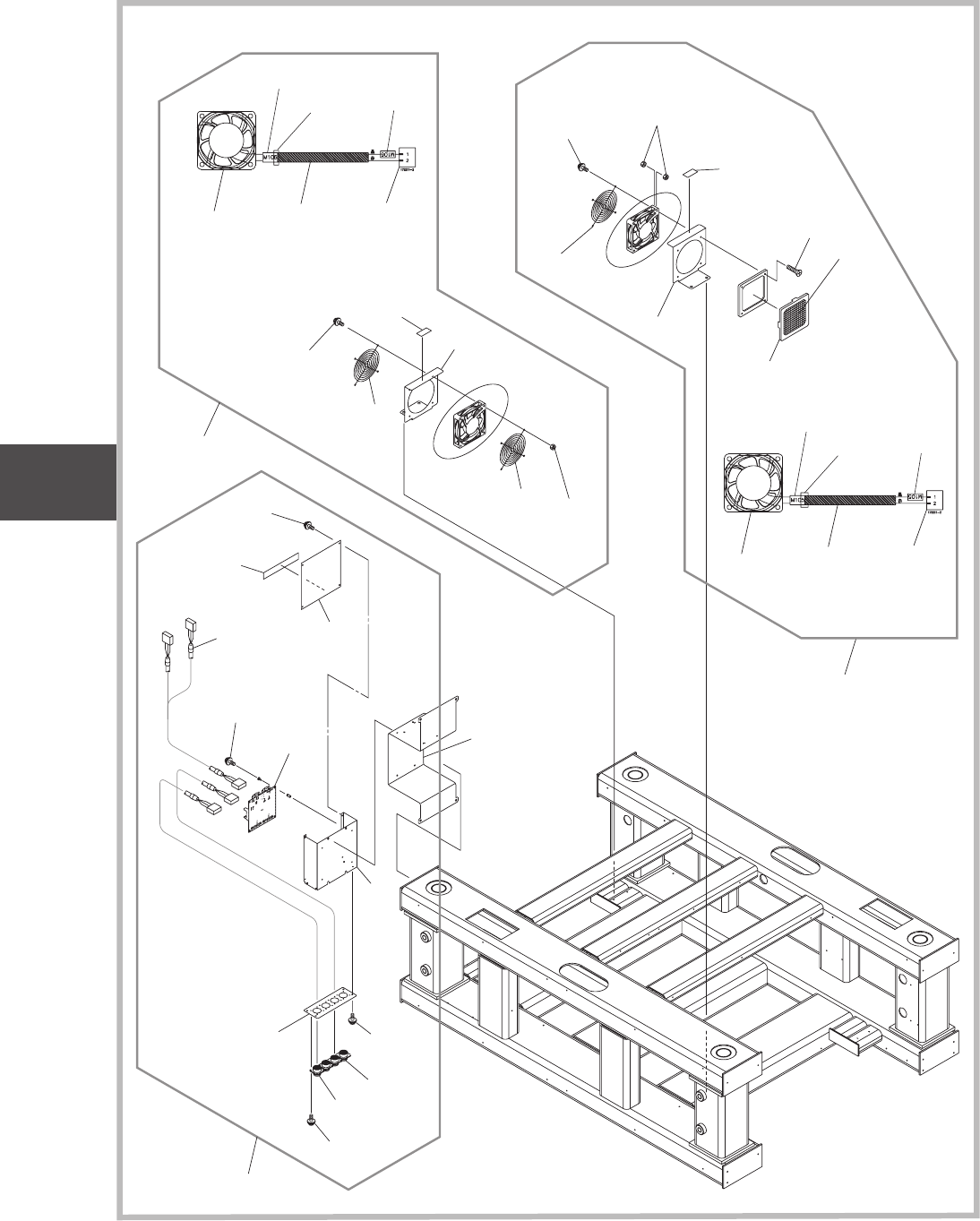

Fig. D1-3
ファン、
I/F
ボード
Fan, I/F Board
1104-004
201
202
205
204
209
208
216
210
212
218
206
207
215
X0702A-F
X0702B-F
X0702A-R
X0702B-R
X0702F
X0702R
X0701
X10701
X20701
See Fig. D1-1
Key No.10
254
255
256
226
227
236
251
253
253
226
227
228
247
255
256
257
221
245
232
229
230
233
224
246
223
235
265
A
DETAIL”B”
DETAIL”A”
231
234
252
261
258
259
262
260
263
B
M105
U07
M106
09141A03
09141A04
09141A00
Fig. D1
電装部１
ELECTRICAL SECTION 1
UNIT-3
Fig. D1
ELEC1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
201 211B1507 BOX 1 1 1 1 2091401A00-001
202 211DE285 PLATE 1 1 1 1
2091401A00-002
204 211AD718 COVER 1 1 1 1
2091401A00-004
205 4B111618 PCB_MOUNT(UB82) 1 1 1 1
2091401A00-005
206 9W210356 CABLE 1 1 1 1
2091401A00-006
207 9W210357 CABLE 1 1 1 1
2091401A00-007
208 221DA058 MACHINE SCREW 4 4 4 4
PAN M3L18 SW+FW
2091401A00-008
209 221DA053 MACHINE SCREW 4 4 4 4
PAN M4L6 SW+FW
2091401A00-009
210 221DA207 MACHINE SCREW 6 6 6 6
TRS M4L6 2091401A00-010
212 9W210340 CABLE 1 1 1 1
2091401A00-012
215 221DA056 MACHINE SCREW 16 16 16 16
PAN M3L8 SW+FW
2091401A00-015
216 221HA203 WASHER 4 4 4 4
FWS3 2091401A00-016
218 09141A0D NAME PLATE 1 1 1 1
2091401A00-018
221 211FE680 BRACKET 1 1 1 1
3091401A03-001
223 23M00062 ACCESSORY_MOT-M 1 1 1 1
3091401A03-003
224 23M00064 ACCESSORY_MOT-M 1 1 1 1
3091401A03-004
226 221HA004 WASHER 10 10 10 10
SW4 3091401A03-006
227 221HA104 WASHER 10 10 10 10
FW4 3091401A03-007
228 221FA007 NUT_HEX 8 8 8 8
M4 3091401A03-008
229 4J300191 CABLE JOINT,TERMINAL 2 2 2 2 3091401A03-009
230 23K10421 CASE,CONN 1 1 1 1
3091401A03-010
231 23N20103 TUBE WIRING 1 1 1 1
3091401A03-011
232 23N20113 TUBE,WIRING 1 1 1 1
3091401A03-012
233 23N20109 TUBE WIRING 1 1 1 1
3091401A03-013
234 23N30737 ACCESSORY,WIRING(M 1 1 1 1
3091401A03-014
235 09141A10 NAME PLATE 1 1 1 1
3091401A03-015
236 221AA019 ROHS:BOLT_HEX-SCT 4 4 4 4
M4L14 3091401A03-016
245 4M130042 MOTOR_DC(DC FAN MOTOR) 1 1 1 1 M105 3091401A03-025
246 0914BA17 FAN_SUPPORT 1 1 1 1
3091401A03-026
247 221DB007 MACHINE SCREW 4 4 4 4
3091401A03-027
251 211FE680 BRACKET 1 1 1 1
3091401A04-001
252 4M130043 MOTOR_DC(DC FAN MOTOR) 1 1 1 1 M106 3091401A04-002
253 23M00062 ACCESSORY_MOT-M 2 2 2 2
3091401A04-003
254 221DA031 MACHINE SCREW 4 4 4 4
PAN M4L40 3091401A04-004
255 221HA004 WASHER 8 8 8 8
SW4 3091401A04-005
256 221HA104 WASHER 8 8 8 8
FW4 3091401A04-006
257 221FA007 NUT_HEX 4 4 4 4
M4 3091401A04-007
258 4J300191 CABLE JOINT,TERMINAL 2 2 2 2 3091401A04-008
259 23K10421 CASE,CONN 1 1 1 1
3091401A04-009
260 23N20103 TUBE WIRING 1 1 1 1
3091401A04-010
261 23N20113 TUBE,WIRING 1 1 1 1
3091401A04-011
262 23N20109 TUBE WIRING 1 1 1 1
3091401A04-012
Fig. D1
1104-004
Fig. D1-3
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-3
Fig. D1
ELEC1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
263 23N30737 ACCESSORY,WIRING(M 1 1 1 1 3091401A04-013
265 09141A11 NAME PLATE 1 1 1 1
3091401A04-015
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
Fig. D1-3
1104-004
Fig. D1
UNIT-3
Fig. D1
ELEC1
