P-310-004(1_2) - 第154页
Fig. D3-3 ドライバ、基板 Driver , PCB 1 104-003 2B2 2C4 2B2 2C4 2C0 2C8 2C9 2B5 2B2 2B4 214 21 1 212 216 217 221 254 256 257 222 202 221 222 220 269 269 268 268 2B2 2C4 257 269 268 2B2 2C4 257 269 268 2C1 2C8 2C7 2A5 2A6 2B7 2B…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
128 211C1546 PANEL 1 1 1 1 1091401300-028
129 211C1489 PANEL 1 1 1 1 1091401300-029
130 4S230093 BREAKER 1 1 1 1 1091401300-030
135 4S250386 CIRCUIT PROTECTOR 1 1 1 1 1091401300-035
136 4S210127 EM-CONTACTOR 1 1 1 1 1091401300-036
137 4S210127 EM-CONTACTOR 1 1 1 1 1091401300-037
138 4S230110 BREAKER 1 1 1 1 1091401300-038
139 4S210127 EM-CONTACTOR 1 1 1 1 1091401300-039
140 0914B32M AC-DC_ASSY 1 1 1 1 1091401300-040
141 4J320241 TERMINAL 1 1 1 1 1091401300-041
142 211FE676 BRACKET 1 1 1 1 1091401300-042
143 4S250322 CIRCUIT PROTECTOR 2 2 2 2 1091401300-043
144 23N30652 ACCESSORY_WIRING 2 2 2 2 1091401300-044
145 23N30653 ACCESSORY_WIRING 2 2 2 2 1091401300-045
146 4S250323 CIRCUIT PROTECTOR 4 4 4 4 1091401300-046
147 23N30651 ACCESSORY_WIRING 7 7 7 7 1091401300-047
148 4S250321 CIRCUIT PROTECTOR 1 1 1 1 1091401300-048
149 4V360007 SEMICONDUCTOR_VARISTOR 1 1 1 1 1091401300-049
150 4S300006 FUSE,SPECIAL 3 3 3 3 1091401300-050
151 4J200032 FUSE HOLDER 3 3 3 3 1091401300-051
155 0914B32K P.C.B,MOUNT 1 1 1 1 1091401300-055
159 23N10027 BRACKET_WIRING 6 6 6 6 1091401300-059
160 23N30612 ACCESS_WIRING 1 1 1 1 1091401300-060
166 23N00103 RAIL_WIRING 2 2 2 2 1091401300-066
182 221DA058 MACHINE SCREW 6 6 6 6 PAN M3L18 SW+FW
1091401300-182
183 221DA053 MACHINE SCREW 6 6 6 6 PAN M4L6 SW+FW 1091401300-183
187 221DA207 MACHINE SCREW 12 12 12 12 TRS M4L6 1091401300-187
192 221AA030 ROHS:BOLT_HEX-SCT 5 5 5 5 M5L12 1091401300-192
195 221HA004 WASHER 1 1 1 1 SW4 1091401300-195
196 221HA104 WASHER 1 1 1 1 FW4 1091401300-196
197 221HA303 ROHS:WASHER 5 5 5 5 SW5 1091401300-197
198 221HA005 WASHER 5 5 5 5 SW5 1091401300-198
1A0 221AA021 ROHS_HEX-SCT 1 1 1 1 M4L20 1091401300-200
Fig. D3
1104-004
Fig. D3-2
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-3
Fig. D3
ELEC2

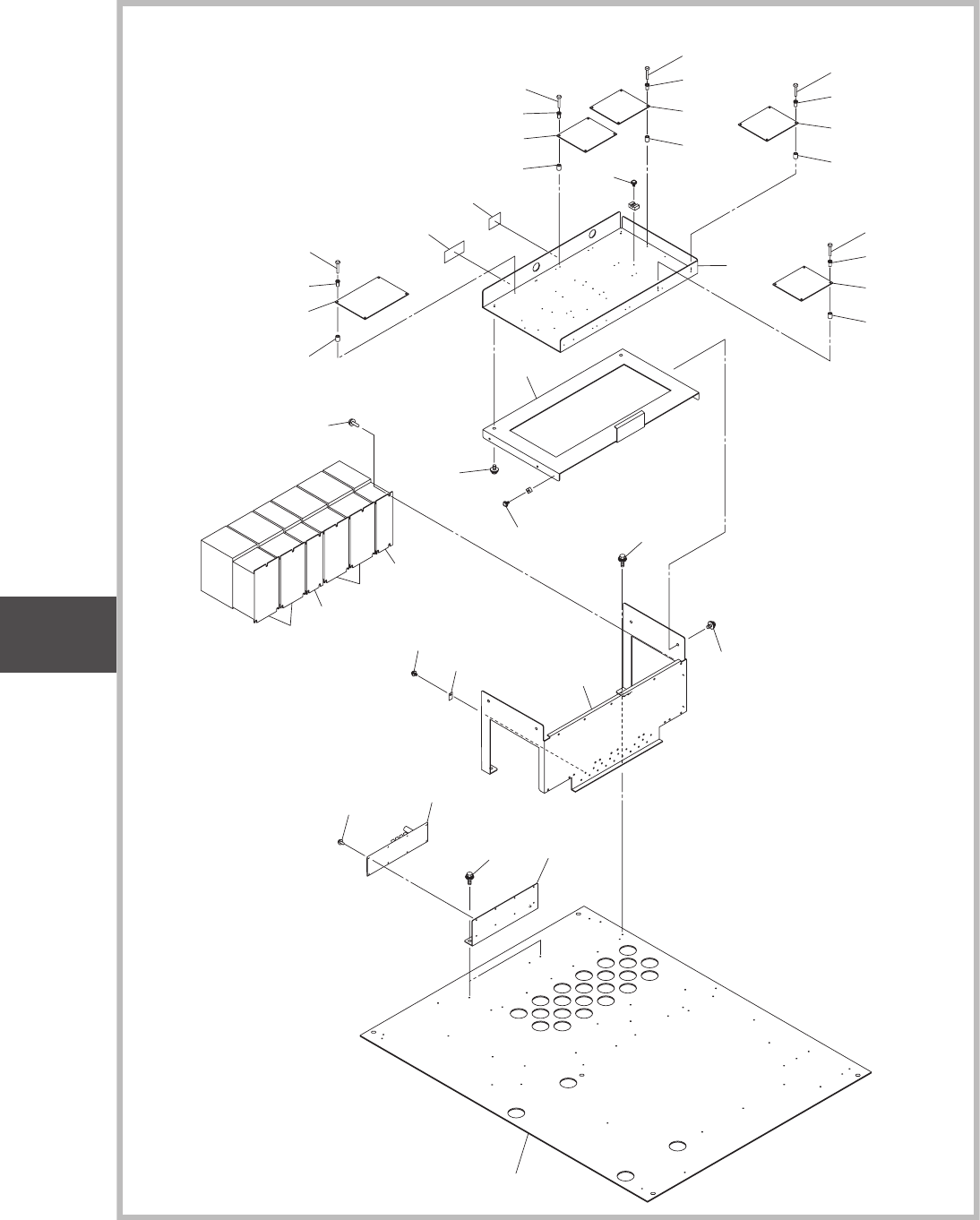

Fig. D3-3
ドライバ、基板
Driver, PCB
1104-003
2B2
2C4
2B2
2C4
2C0
2C8
2C9
2B5
2B2
2B4
214
211
212
216
217
221
254
256
257
222
202
221
222
220
269
269
268
268
2B2
2C4
257
269
268
2B2
2C4
257
269
268
2C1
2C8
2C7
2A5
2A6
2B7
2B7
2C0
2C8
2C9
2C0
2C8
2C9
U24
A21F
A22F
A23F
A21R
A22R
A23R
U01
U12
U05
U09
2B2
2C4
257
269
268
U06
Fig. D3
電装部２
ELECTRICAL SECTION 2
UNIT-3
Fig. D3
ELEC2
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
202 4W410049 WIRE PARTS 6 6 6 6 1091401300-002
211 211DE827 PLATE 1 1 1 1 1091401300-011
212 211C1555 PANEL 1 1 1 1 1091401300-012
214 211C1549 PANEL 2 2 2 2 1091401300-014
216 211B1459 BOX 1 1 1 1 1091401300-016
217 211DE806 PLATE 1 1 1 1 1091401300-017
220 4B111617 PCB_MOUNT 2 2 2 2 1091401300-020
221 4U240485 UNIT_DRIVER 2 2 2 2 1091401300-021
222 0914B32J UNIT_DRIVER 4 4 4 4 1091401300-022
254 24000136 PROGRAM ROM 1 1 1 1 1091401300-054
256 4B111616 PCB_MOUNT 1 1 1 1 1091401300-056
257 4B111516 P.C.B,MOUNT 4 4 4 4 1091401300-057
268 23L10024 ACCESSORY_P_C_B 22 22 22 22 1091401300-068
269 23L10025 ACCESSORY_P_C_B 22 22 22 22 1091401300-069
2A5 09141316 NAME PLATE 1 1 1 1 1091401300-115
2A6 09141317 NAME PLATE 1 1 1 1 1091401300-116
2B2 221DA058 MACHINE SCREW 22 22 22 22 PAN M3L18 SW+FW
1091401300-182
2B4 221DA062 MACHINE SCREW 6 6 6 6 PAN M4L8 SW+FW 1091401300-184
2B5 221DA055 MACHINE SCREW 22 22 22 22 PAN M5L12 SW+FW
1091401300-185
2B7 221DA207 MACHINE SCREW 4 4 4 4 TRS M4L6 1091401300-187
2C0 221AA028 ROHS:BOLT_HEX-SCT 10 10 10 10 M5L8 1091401300-190
2C1 221AA029 ROHS:BOLT_HEX-SCT 2 2 2 2 M5L10 1091401300-191
2C4 221HA203 WASHER 22 22 22 22 FWS3 1091401300-194
2C7 221HA303 ROHS:WASHER 2 2 2 2 SW5 1091401300-197
2C8 221HA005 WASHER 12 12 12 12 SW5 1091401300-198
2C9 221HA105 WASHER 10 10 10 10 FW5 1091401300-199
Fig. D3
1104-004
Fig. D3-3
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-3
Fig. D3
ELEC2
