P-310-004(1_2) - 第157页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 313 21 1K3315 SUPPORT 7 7 7 7 1091401300-013 386 21 1C1551 P ANEL 1 1 1 1 1091401300-086 390 21 1DE607 PLA TE 1 1 1 1 1091401300-090 392 4B1 1 1606 PCB_MOUNT 1 1 1 1 10914…

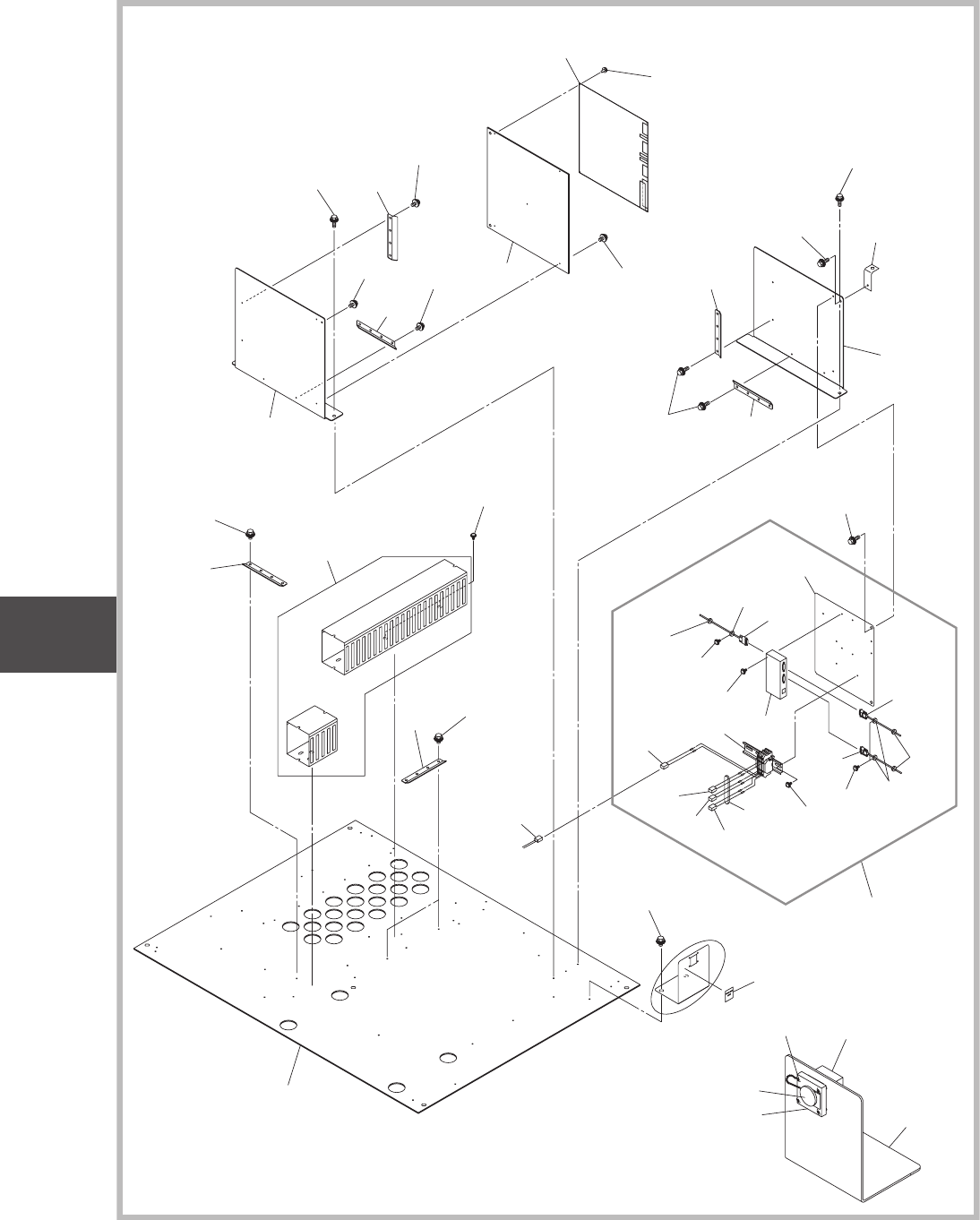

Fig. D3-4
照明基板、
LAN
パネル
Lighting PCB, LAN Panel
1104-004
3F3
3G1
3G5
3G1
3G5
3F5
3F1
3F4
3F6
3F9
3G6
3F8
3F7
3G0
3A1
3C0
3D1
3B8
3C8
3C9
3C0
3C8
3C9
3C0
3C8
3C9
3C0
3C8
3C9
313
313
3E0
313
313
313
313
3F2
3C0
3C8
3C9
3C0
3C7
See Fig. D3-3
Key No. 211
394
390
386
3C2
3C8
3C7
3C2
3C8
3C7
393
3C4
3A7
3E6
3E1
3E2
3E3
392
3C0
3C8
3C9
3C2
3C7
3C8
3G3
3G2
3G6
3G3
3G2
3G6
3G4
3G3
3B3
3B2
A
DETAIL”A
3C0
3C8
3C9
U165
X16501
5J1
5OP02
5OP03
5OP04
X16502
X7307
X16503
U95
09141A0U
Fig. D3
電装部２
ELECTRICAL SECTION 2
UNIT-3
Fig. D3
ELEC2
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
313 211K3315 SUPPORT 7 7 7 7 1091401300-013
386 211C1551 PANEL 1 1 1 1 1091401300-086
390 211DE607 PLATE 1 1 1 1 1091401300-090
392 4B111606 PCB_MOUNT 1 1 1 1 1091401300-092
393 211FE322 BRACKET 1 1 1 1 1091401300-093
394 211C1550 PANEL 1 1 1 1 1091401300-094
3A1 0914B31Y 5VCORD 1 1 1 1 1091401300-101
3A7 0914B32W ACCESSORY_WIRING 1 1 1 1 1091401300-117
3B2 221DA058 MACHINE SCREW 5 5 5 5 PAN M3L18 SW+FW
1091401300-182
3B3 221DA053 MACHINE SCREW 1 1 1 1 PAN M4L6 SW+FW 1091401300-183
3B8 221DA221 ROHS:MACHINE SCREW 2 2 2 2 TRS M5L8 1091401300-188
3C0 221AA028 ROHS:BOLT_HEX-SCT 18 18 18 18 M5L8 1091401300-190
3C2 221AA030 ROHS:BOLT_HEX-SCT 5 5 5 5 M5L12 1091401300-192
3C4 221HA203 WASHER 5 5 5 5 FWS3 1091401300-194
3C7 221HA303 ROHS:WASHER 7 7 7 7 SW5 1091401300-197
3C8 221HA005 WASHER 21 21 21 21 SW5 1091401300-198
3C9 221HA105 WASHER 16 16 16 16 FW5 1091401300-199
3D1 221DA011 MACHINE SCREW 4 4 4 4 PAN M3L8 1091401300-201
3E0 0914B33V PANEL 1 1 1 1 1091401300-210
3E1 23K20118 ACCESSORY_CONN 1 1 1 1 1091401300-211
3E2 23K20117 ACCESSORY_CONN 1 1 1 1 1091401300-212
3E3 4J100919 CONNECTOR 1 1 1 1 1091401300-213
3E6 09141351 NAME PLATE 1 1 1 1 1091401300-216
3F1 0914BA1T VIDEO SPLITTER 1 1 1 1 3091401A0U-001
3F2 0914BA1G PLATE_VGA 1 1 1 1 3091401A0U-002
3F3 0914BA1H 5V_DINSET 1 1 1 1 3091401A0U-003
3F4 0918B0CE VGA_CABLE2M 1 1 1 1 3091401A0U-004
3F5 0914B31D VGA_CABLE3M 1 1 1 1 3091401A0U-005
3F6 0914B31E VGA_CABLE5M 1 1 1 1 3091401A0U-006
3F7 0914BA1J 5VOP2_CORD 1 1 1 1 3091401A0U-007
3F8 0914BA1K 5VOP3_CORD 1 1 1 1 3091401A0U-008
3F9 0914BA1L 5VOP4_CORD 1 1 1 1 3091401A0U-009
3G0 0914BA1M 5V_OP_TB_CORD 1 1 1 1 3091401A0U-010
3G1 23N30738 ACCESS_WIRING(M 3 3 3 3 3091401A0U-011
3G2 23N30632 WIRING 3 3 3 3 3091401A0U-012
3G3 221DA053 MACHINE_SCREW 5 5 5 5 PAN M4L6 SW+FW 3091401A0U-013
3G4 221DB023 MACHINE_SCREW 4 4 4 4 PAN M4L12 3091401A0U-014
3G5 23N20103 TUBE_WIRING 3 3 3 3 3091401A0U-015
3G6 23N30737 ACCESS_WIRING(M 4 4 4 4 3091401A0U-016
Fig. D3
1104-004
Fig. D3-4
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-3
Fig. D3
ELEC2

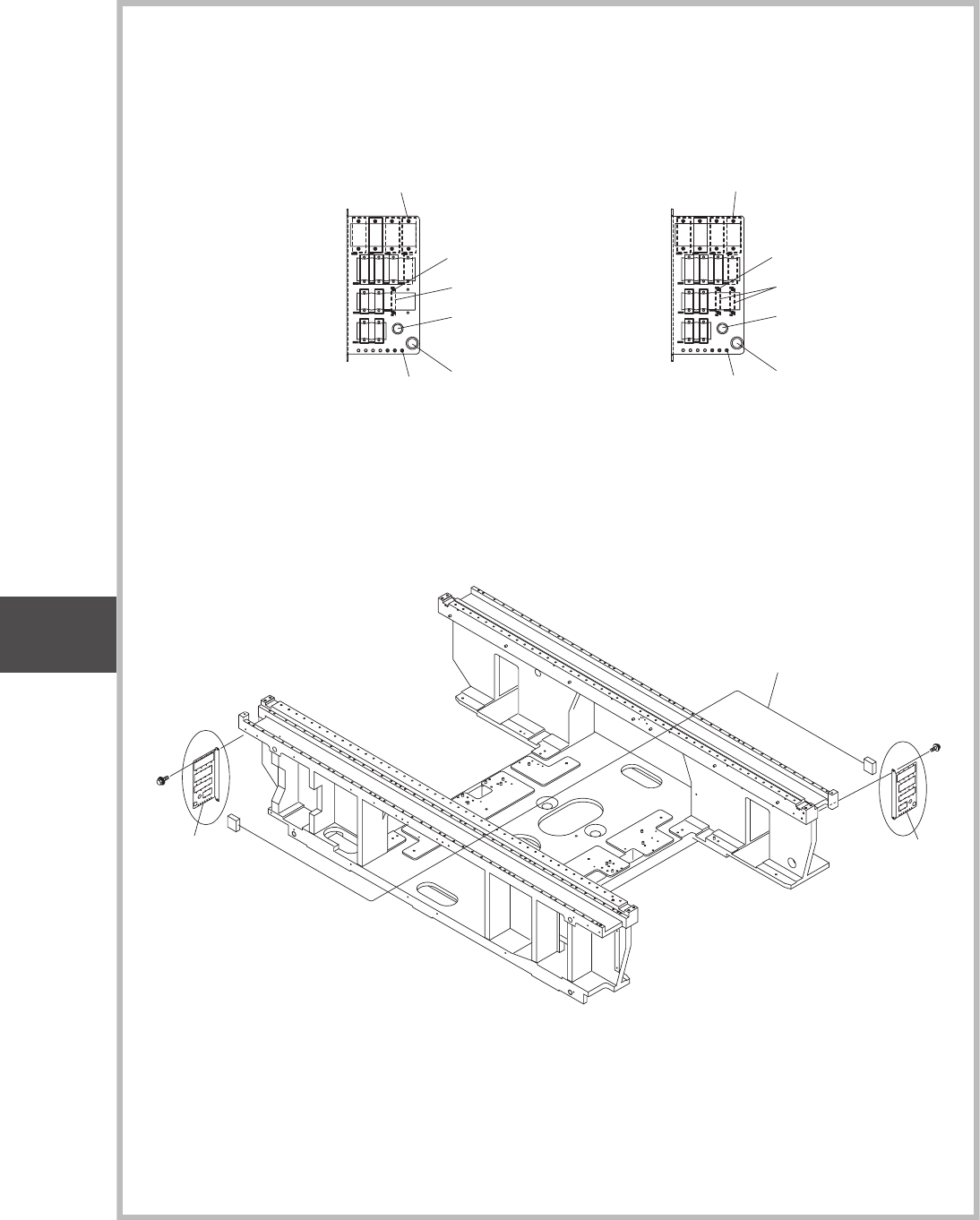

Fig. D3-5
中継パネル
Relay Panel
1104-003
A
DETAIL”A” DETAIL”B”
B
X2300
X2200
X2100
X231P1
X12102
X22507
X12201
X12301
X22501
X13601
X1311A
X131
X1311B
X1311B
1B
X1E39
X12410
X2300
X2200
X2100
X231P1
X12102
X22507
X12201
X12301
X22501
X13601
X1311A
X1E39
X12410
415
415
4C8
4C8
4C8
4B0
4A9
418
4C8
4C8
4C8
4B0
4D6
4A9
418
Fig. D3
電装部２
ELECTRICAL SECTION 2
UNIT-3
Fig. D3
ELEC2
