P-310-004(1_2) - 第235页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 401 221E0456 BOL T 6 6 6 6 3091403A12-001 402 23L10044 ACCESSOR Y_P_C_B(BUSH) 6 6 6 6 3091403A12-002 403 21 1DF001 PLA TE 2 2 2 2 3091403A12-003 404 21 1DF000 PLA TE 2 2 2…
425
424
426
427
409
424
426
427
422
421
425
411
412
413
410
402
423
422
425
423
410
412
413
402
407
406
405
403
408
401
404
B36
E39
09143A12
09143A01
Fig. E1-5
基板認識カメラ
PCB Recognition Camera
1104-003
Fig. E1
ビーム部
BEAM SECTION
UNIT-4
Fig. E1
BEAM
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
401 221E0456 BOLT 6 6 6 6 3091403A12-001
402 23L10044 ACCESSORY_P_C_B(BUSH) 6 6 6 6 3091403A12-002
403 211DF001 PLATE 2 2 2 2 3091403A12-003
404 211DF000 PLATE 2 2 2 2 3091403A12-004
405 0914DA14 BLOCK 2 2 2 2 3091403A12-005
406 4Z100175 SCOPE_UNIT 2 2 2 2 3091403A12-006
407 4U220103 UNIT_CAMERA 2 2 2 2 3091403A12-007
408 4Z110220 LIGHTING UNIT 2 2 2 2 3091403A12-007
409 221AA202 ROHS:BOLT,HEX-SCT(BLACK) 6 6 6 6 M3L8 3091403A12-008
410 221AA020 ROHS:BOLT_HEX-SCT 4 4 4 4 M4L16 3091403A12-009
411 221AA022 ROHS:BOLT_HEX-SCT 4 4 4 4 M4L25 3091403A12-010
412 221HA291 ROHS:WASHER(BLACK) 6 6 6 6 FW4 3091403A12-011
413 221HA004 WASHER 6 6 6 6 SW4 3091403A12-012
421 211DE998 PLATE 2 2 2 2 3091403A01-001
422 211FD927 BRACKET 4 4 4 4 3091403A01-002
423 211FD871 BRACKET 4 4 4 4 3091403A01-003
424 221AA017 ROHS:BOLT_HEX-SCT 8 8 8 8 M4L10 3091403A01-004
425 221DA208 MACHINE SCREW 8 8 8 8 TRS M4L8 3091403A01-005
426 221HA291 ROHS:WASHER(BLACK) 8 8 8 8 FW4 3091403A01-006
427 221HA004 WASHER 8 8 8 8 SW4 3091403A01-007
Fig. E1
1104-004
Fig. E1-5
UNIT-4
Fig. E1
BEAM
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD

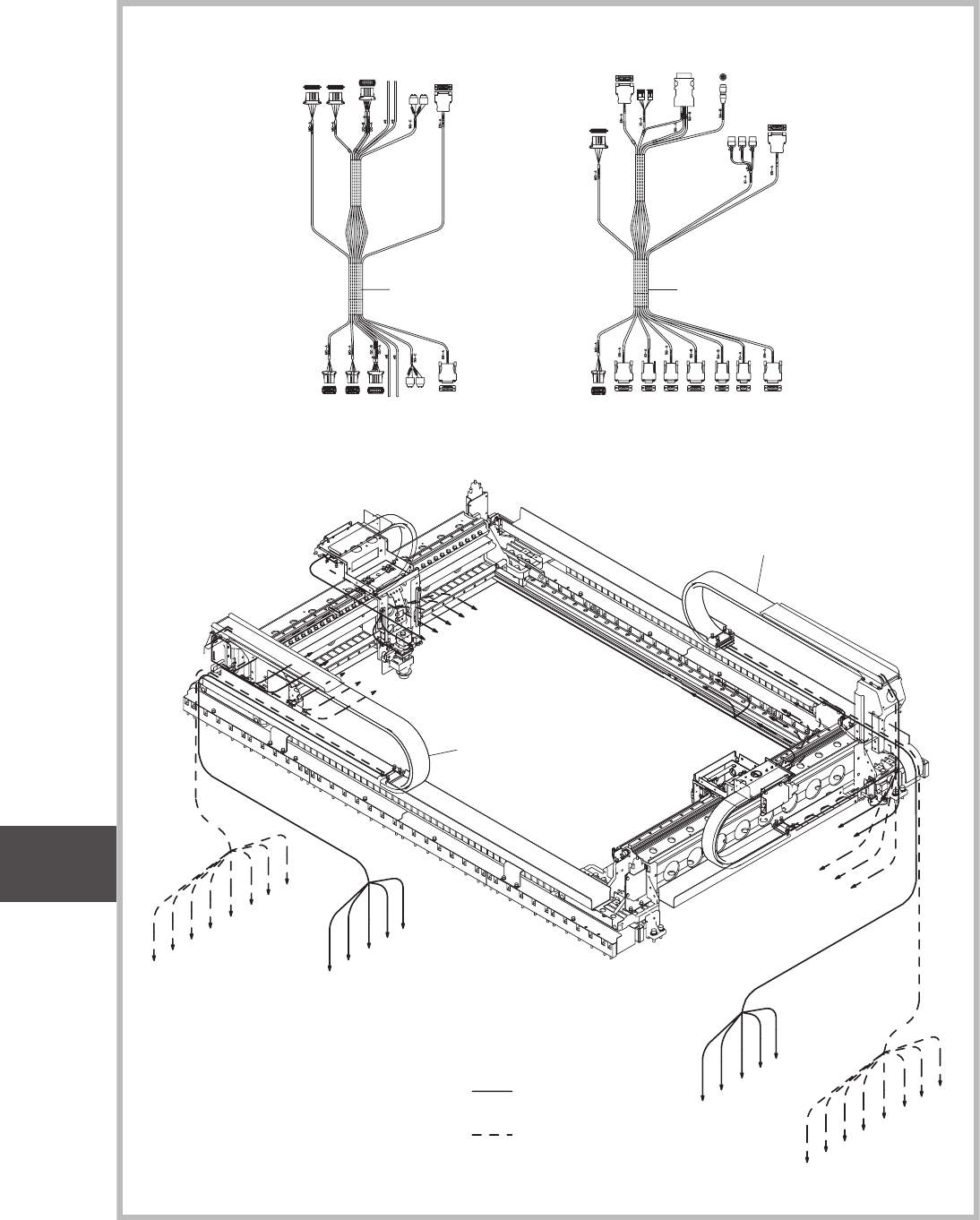

Fig. E1-6
ロボットケーブル
Robot Cable
534
535
534
535
534
535
X22501
X12201
X13601
X12410
X12102
X22507
X12301
X1E39
X1311A
X1311B
X12501
X231P1
X2200
X22501 X12201X13601 X12410X12102 X22507X1E39
X2200
X2100
X2300
X12301
X1311A
X1311B
X231P1
X2100X2300
M23
U23
X12301
X1311A
X1311B
X231P1
X2100
X2300
M22
U22
B2101
B2102
B2202
M22
U22
B2101
B2102
B2202
M23
U23
534
535
X22501
X12201
X13601
X12410
X12102
X22507
X1E39
X2200
U21
E39
X3601
X311A
X311B
M21
X131P1
X12501
M23
U23
M22
U22
B2101
B2102
B2202
U21
E39
X3601
X311A
X311B
M21
X131P1
X311A
X311B
M21
X131P1
X12501
U21
E39
X3601
ブーュチアエ6φ
ブーュチアエ8φ
1104-004
Fig. E1
ビーム部
BEAM SECTION
UNIT-4
Fig. E1
BEAM
