Fig. E4-4 フレームＲ Frame R 306 316 324 322 306 306 315 327 302 317 303 321 320 305 319 323 326 325 31 1 329 328 312 313 314 329 371 355 356 371 355 356 362 363 361 366 355 356 370 369 364 318 364 371 355 356 365 367 368 359…
MEMO

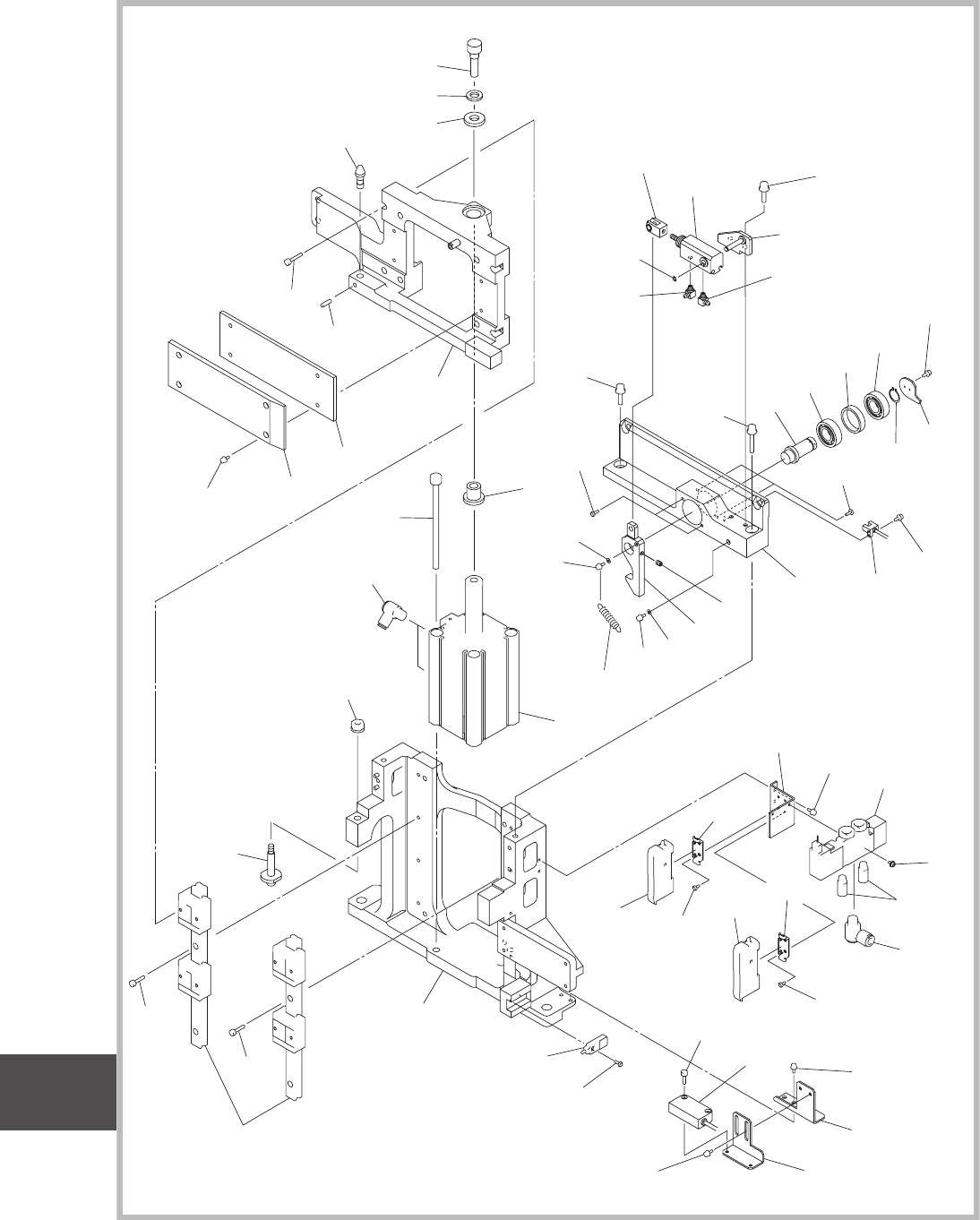

Fig. E4-4
フレームＲ
Frame R
306
316
324
322
306
306
315
327
302
317
303
321
320
305
319
323
326
325
311
329
328
312
313
314
329
371
355
356
371
355
356
362
363
361
366
355
356
370
369
364
318
364
371
355
356
365
367
368
359
365
367
368
358
360
309
372
373
334
340
313
314
353
313
314
354
339
341
340
345
331
343
332
343
344
333
346
352
348
349
350
352
330
336
374
354
312
375
316
357
347
349
350
B0613(F)
B0913(B)
B0614,0615(F)
B0914,0915(B)
B0611(F)
B0911(B)
Y0642(F)
Y0942(B)
1104-004
Fig. E4
位置決め部
POSITIONING UNIT
UNIT-4
Fig. E4
POSITION
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
302 0929E00R BASE 2 2 2 2 109290400C-002
303 222L0694 GUIDE_LINEAR 2 2 2 2
109290400C-003
305 0929E01C BASE 2 2 2 2
109290400C-005
306 221AA020 ROHS:BOLT_HEX-SCT 32 32 32 32
M4L16 109290400C-006
309 221AA030 ROHS:BOLT_HEX-SCT 4 4 4 4
M5L12 109290400C-009
311 09141D03 ASSY_SENSOR 1 1 1 1
front 109290400C-011
311 09141D01 ASSY_SENSOR 1 1 1 1
rear 1092904016-011
312 221FA011 NUT_HEX 4 4 4 4
M6 109290400C-012
313 221HA006 WASHER 6 6 6 6
SW6 109290400C-013
314 221HA106 WASHER 6 6 6 6
FW6 109290400C-014
315 216F0999 PIN_GUIDE 2 2 2 2
109290400C-015
316 221CA007 SETSCREW 4 4 4 4
SET M5L6 109290400C-016
317 213A1568 SHAFT 2 2 2 2
109290400C-017
318 09141D09 ASSY_SENSOR 1 1 1 1
front 109290400C-018
318 09141D08 ASSY_SENSOR 1 1 1 1
rear 1092904016-018
319 09141D05 ASSY_CYLINDER 1 1 1 1
front 109290400C-019
319 09141D04 ASSY_CYLINDER 1 1 1 1
rear 1092904016-019
320 221AA069 ROHS:BOLT_HEX-SCT 2 2 2 2
M10L35 109290400C-020
321 221HA008 WASHER 2 2 2 2
SW10 109290400C-021
322 221HA108 WASHER 2 2 2 2
FW10 109290400C-022
323 225F0558 PIPEFITTINGS 4 4 4 4
109290400C-023
324 221AA151 ROHS:BOLT_HEX-SCT 4 4 4 4
M8L12 109290400C-024
325 211DD872 PLATE 2 2 2 2
109290400C-025
326 211DD870 PLATE 2 2 2 2
109290400C-026
327 216B1382 HOLDER 2 2 2 2
109290400C-027
328 221DA011 MACHINESCREW 2 2 2 2
PAN M3L8 109290400C-028
329 221AA018 ROHS:BOLT_HEX-SCT 12 12 12 12
M4L12 109290400C-029
330 0929E00X LEVER 2 2 2 2
109290400C-030
331 0929E00W SHAFT 2 2 2 2
109290400C-031
332 0929E00Y COLLAR 2 2 2 2
109290400C-032
333 0929E01D PLATE 2 2 2 2
109290400C-033
334 0929E00V BRACKET 2 2 2 2
109290400C-034
336 0929E01H TENSIONSPRING 2 2 2 2
109290400C-036
339 0929E01L PINCYLINDER 2 2 2 2
109290400C-039
340 225F0260 PIPEFITTINGS 4 4 4 4
109290400C-040
341 0929E01M DKNUCKLEJOINT 2 2 2 2
109290400C-041
343 222D0008 BEARING_RADIAL 4 4 4 4
109290400C-043
344 221K0079 RINGC15 2 2 2 2
RING C 15 109290400C-044
345 221KB001 RING E 2 2 2 2
109290400C-045
346 09294020 ASSY_SENSOR 1 1 1 1
front 109290400C-046
346 0929401Y ASSY_SENSOR 1 1 1 1
rear 109290400C-046
347 221DA003 MACHINESCREW 2 2 2 2
PAN M2L8 1092904016-047
348 221AA001 ROHS:BOLT_HEX-SCT 4 4 4 4
M2L6 109290400C-048
349 221HA001 WASHER 6 6 6 6
SW2 109290400C-049
350 221HA101 WASHER 6 6 6 6
FW2 109290400C-050
Fig. E4
1104-004
Fig. E4-4
UNIT-4
Fig. E4
POSITION
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
