144 147 148 145 146 144 147 148 145 146 See Fig F1-1 Key No.1 134 140 139 141 138 135 136 137 142 184 190 187 188 189 174 174 172 177 177 178 179 180 178 179 180 186 185 164 170 167 168 169 154 152 154 157 157 158 159 16…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. F1
1104-004
Fig. F1-1
1 0914B81R TENITA_FRAME 1 1 1 1 109140181S-001
2 0914B81N YAGURA SIDE COV 2 2 2 2
109140181S-002
4 0914B80T BRACKET 2 2 2 2
109140181S-004
8 222R0057 SPRING(GUS) 4 4 4 4
109140181S-008
9 221C0109 SET SCREW 4 4 4 4
109140181S-009
12 9W210424 CABLE 1 1 1 1
109140181S-012
13 9W210425 CABLE 1 1 1 1
109140181S-013
14 9W210426 CABLE 1 1 1 1
109140181S-014
15 221AA100 ROHS:BOLT_HEX-SCT 8 8 8 8
M4L8 SW+FW 109140181S-015
16 221AA030 ROHS:BOLT_HEX-SCT 2 2 2 2
M5L12 109140181S-016
17 221AA240 ROHS:BOLT_HEX-SCT 12 12 12 12
M6L14 109140181S-017
18 221AA043 ROHS:BOLT_HEX-SCT 8 8 8 8
M6L16 109140181S-018
19 221HA005 WASHER 2 2 2 2
SW5 109140181S-019
20 221HA006 WASHER 20 20 20 20
SW6 109140181S-020
21 221HA105 WASHER 2 2 2 2
FW5 109140181S-021
22 221HA106 WASHER 12 12 12 12
FW6 109140181S-022
23 221HA304 BW06W 8 8 8 8
BW6 109140181S-023
31 0914B80B H HOLD BRACKET 4 4 4 4
3091301101-001
32 211FE109 BRACKET 4 4 4 4
3091301101-002
33 216D0546 PIN_HINGE 4 4 4 4
3091301101-003
34 221KB003 RING E 06W 8 8 8 8
3091301101-004
UNIT-5
Fig. F1
PANEL
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
144
147
148
145
146
144
147
148
145
146
See Fig F1-1
Key No.1
134
140
139
141
138
135
136
137
142
184
190
187
188
189
174
174
172
177
177
178
179
180
178
179
180
186
185
164
170
167
168
169
154
152
154
157
157
158
159
160
158
159
160
166
165
09141805
09141805
0914180D
09141807
09141804
0914180C
09141806
H1
H11B
M101
M102
H11F

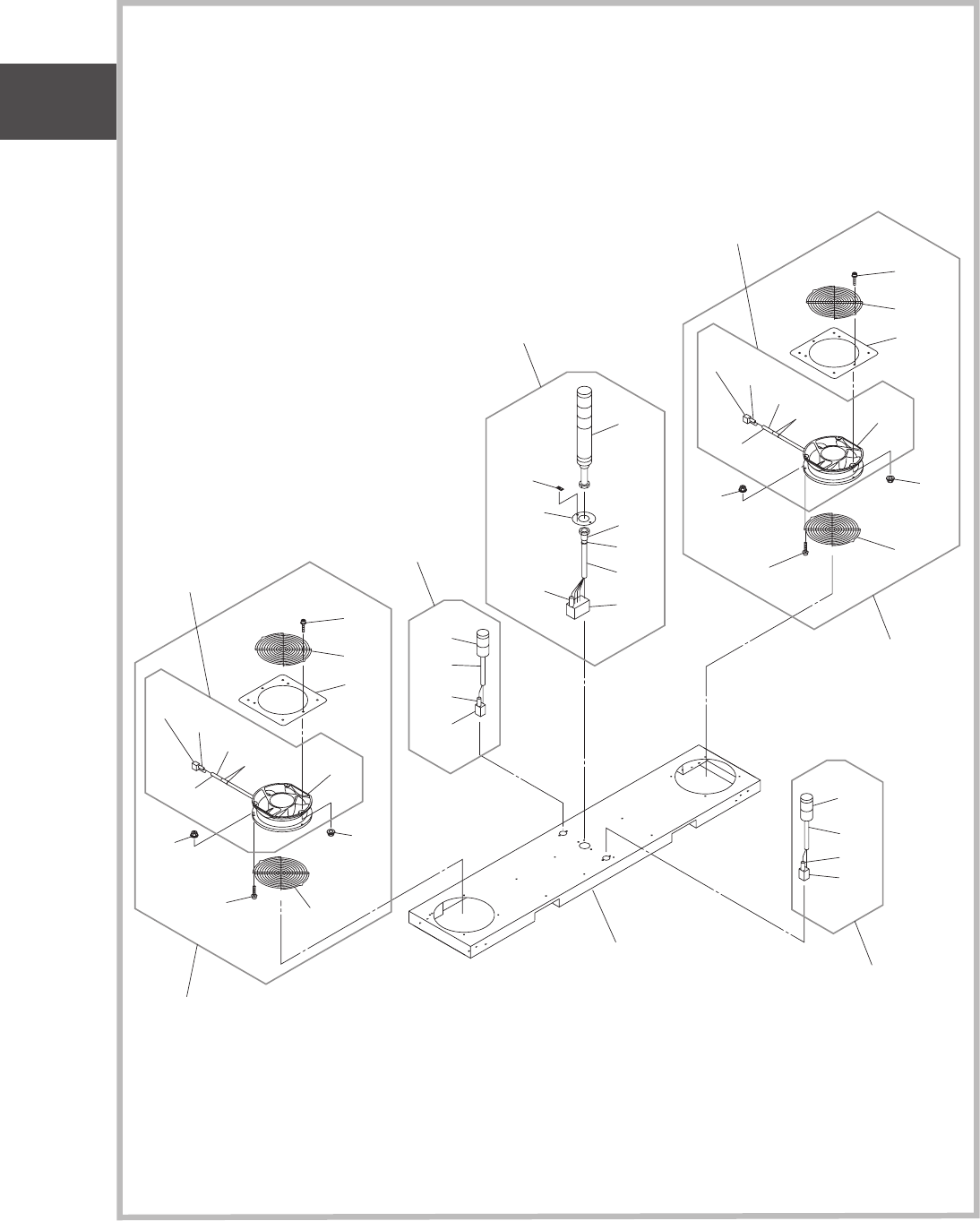

Fig. F1-2
ファン、表示灯
Fan, Indicator lamp
1104-003
Fig. F1
パネル、中央フレーム部
Panel, Frame SECTION
UNIT-5
Fig. F1
PANEL
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. F1
1104-004
Fig. F1-2
134 4T3A0235 PILOT_LAMP 1 1 1 1 3091401804-004
135 23K10406 CASE_CONN 1 1 1 1
3091401804-005
136 4J300191 CAB_JOINTTERMIN 5 5 5 5
3091401804-006
137 23N20111 TUBE_WIRING 4 4 4 4
3091401804-007
138 23N20119 TUBE_WIRING 1 1 1 1
3091401804-008
139 23N20103 TUBE_WIRING 1 1 1 1
3091401804-009
140 211DE366 PLATE 1 1 1 1
3091401804-010
141 23N30737 ACCESS_WIRING(M 1 1 1 1
3091401804-011
142 0914180N NAME_PLATE 1 1 1 1
3091401804-012
144 4T3A0218 PILOT LAMP 1 1 1 1
3091401805-004
145 23K10421 CASE,CONN 1 1 1 1
3091401805-005
146 4J300191 CABLE JOINT,TERMINAL 2 2 2 2 3091401805-006
147 23N20118 TUBE WIRING 1 1 1 1
3091401805-007
148 23N20103 TUBE WIRING 1 1 1 1
3091401805-008
152 0914B80S FAN_HUNG_PLATE 1 1 1 1
309140180C-002
154 23M00070 ACCESSORY_MOT-M 2 2 2 2
309140180C-004
157 221AA105 ROHS_HEX-SCT 6 6 6 6
M4L18 SW+FW 309140180C-007
158 221FA007 NUT_HEX 6 6 6 6
M4 309140180C-008
159 221HA004 WASHER 6 6 6 6
SW4 309140180C-009
160 221HA104 WASHER 6 6 6 6
FW4 309140180C-010
164 4M130038 MOTOR_DC(FAN MOTOR) 1 1 1 1 3091401806-004
165 23K10421 CASE,CONN 1 1 1 1
3091401806-005
166 4J300191 CABLE JOINT,TERMINAL 2 2 2 2 3091401806-006
167 23N20106 TUBE WIRING 1 1 1 1
3091401806-007
168 23N20103 TUBE WIRING 1 1 1 1
3091401806-008
169 23N20105 TUBE WIRING 1 1 1 1
3091401806-009
170 23N30737 ACCESSORY,WIRING(M 1 1 1 1
3091401806-010
172 0914B80S FAN_HUNG_PLATE 1 1 1 1
309140180D-002
174 23M00070 ACCESSORY_MOT-M 2 2 2 2
309140180D-004
177 221AA105 ROHS_HEX-SCT 6 6 6 6
M4L18 SW+FW 309140180D-008
178 221FA007 NUT_HEX 6 6 6 6
M4 309140180D-009
179 221HA004 WASHER 6 6 6 6
SW4 309140180D-010
180 221HA104 WASHER 6 6 6 6
FW4 309140180D-011
184 4M130038 MOTOR_DC(FAN MOTOR) 1 1 1 1 3091401807-004
185 23K10421 CASE,CONN 1 1 1 1
3091401807-005
186 4J300191 CABLE JOINT,TERMINAL 1 1 1 1 3091401807-006
187 23N20106 TUBE WIRING 1 1 1 1
3091401807-007
188 23N20103 TUBE WIRING 1 1 1 1
3091401807-008
189 23N20105 TUBE WIRING 1 1 1 1
3091401807-009
190 23N30737 ACCESSORY,WIRING(M 1 1 1 1
3091401807-010
UNIT-5
Fig. F1
PANEL
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
