P-310-004(1_2) - 第294页
1 104-004 207 208 221 21 1 215 216 217 210 21 1 212 210 210 210 204 203 210 214 202 209 201 B 21 1 DET AIL ”B” 244 264 256 256 264 264 266 271 266 266 264 264 255 256 265 266 271 255 260 268 263 267 266 256 264 254 264 2…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. F1
1104-004
Fig. F1-2
134 4T3A0235 PILOT_LAMP 1 1 1 1 3091401804-004
135 23K10406 CASE_CONN 1 1 1 1
3091401804-005
136 4J300191 CAB_JOINTTERMIN 5 5 5 5
3091401804-006
137 23N20111 TUBE_WIRING 4 4 4 4
3091401804-007
138 23N20119 TUBE_WIRING 1 1 1 1
3091401804-008
139 23N20103 TUBE_WIRING 1 1 1 1
3091401804-009
140 211DE366 PLATE 1 1 1 1
3091401804-010
141 23N30737 ACCESS_WIRING(M 1 1 1 1
3091401804-011
142 0914180N NAME_PLATE 1 1 1 1
3091401804-012
144 4T3A0218 PILOT LAMP 1 1 1 1
3091401805-004
145 23K10421 CASE,CONN 1 1 1 1
3091401805-005
146 4J300191 CABLE JOINT,TERMINAL 2 2 2 2 3091401805-006
147 23N20118 TUBE WIRING 1 1 1 1
3091401805-007
148 23N20103 TUBE WIRING 1 1 1 1
3091401805-008
152 0914B80S FAN_HUNG_PLATE 1 1 1 1
309140180C-002
154 23M00070 ACCESSORY_MOT-M 2 2 2 2
309140180C-004
157 221AA105 ROHS_HEX-SCT 6 6 6 6
M4L18 SW+FW 309140180C-007
158 221FA007 NUT_HEX 6 6 6 6
M4 309140180C-008
159 221HA004 WASHER 6 6 6 6
SW4 309140180C-009
160 221HA104 WASHER 6 6 6 6
FW4 309140180C-010
164 4M130038 MOTOR_DC(FAN MOTOR) 1 1 1 1 3091401806-004
165 23K10421 CASE,CONN 1 1 1 1
3091401806-005
166 4J300191 CABLE JOINT,TERMINAL 2 2 2 2 3091401806-006
167 23N20106 TUBE WIRING 1 1 1 1
3091401806-007
168 23N20103 TUBE WIRING 1 1 1 1
3091401806-008
169 23N20105 TUBE WIRING 1 1 1 1
3091401806-009
170 23N30737 ACCESSORY,WIRING(M 1 1 1 1
3091401806-010
172 0914B80S FAN_HUNG_PLATE 1 1 1 1
309140180D-002
174 23M00070 ACCESSORY_MOT-M 2 2 2 2
309140180D-004
177 221AA105 ROHS_HEX-SCT 6 6 6 6
M4L18 SW+FW 309140180D-008
178 221FA007 NUT_HEX 6 6 6 6
M4 309140180D-009
179 221HA004 WASHER 6 6 6 6
SW4 309140180D-010
180 221HA104 WASHER 6 6 6 6
FW4 309140180D-011
184 4M130038 MOTOR_DC(FAN MOTOR) 1 1 1 1 3091401807-004
185 23K10421 CASE,CONN 1 1 1 1
3091401807-005
186 4J300191 CABLE JOINT,TERMINAL 1 1 1 1 3091401807-006
187 23N20106 TUBE WIRING 1 1 1 1
3091401807-007
188 23N20103 TUBE WIRING 1 1 1 1
3091401807-008
189 23N20105 TUBE WIRING 1 1 1 1
3091401807-009
190 23N30737 ACCESSORY,WIRING(M 1 1 1 1
3091401807-010
UNIT-5
Fig. F1
PANEL
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
1104-004
207
208
221
211
215
216
217
210
211
212
210
210
210
204
203
210
214
202
209
201
B
211
DETAIL ”B”
244
264
256
256
264
264
266
271
266
266
264
264
255
256
265
266
271
255
260
268
263
267
266
256
264
254
264
265
265
264
255
246
252
265
264
247
248
249
250
253
251
264
258
260
259
260
261
262
257
260
256
265
245
270
264
09141906
S101F
S101B
N74F
N74B
S103F
S103B
S105F
S105B
S102F
(H102F)
S102B
(H102B)
S104F
(H104AF)
S104B
(H104AB)
H104BF
H104BB

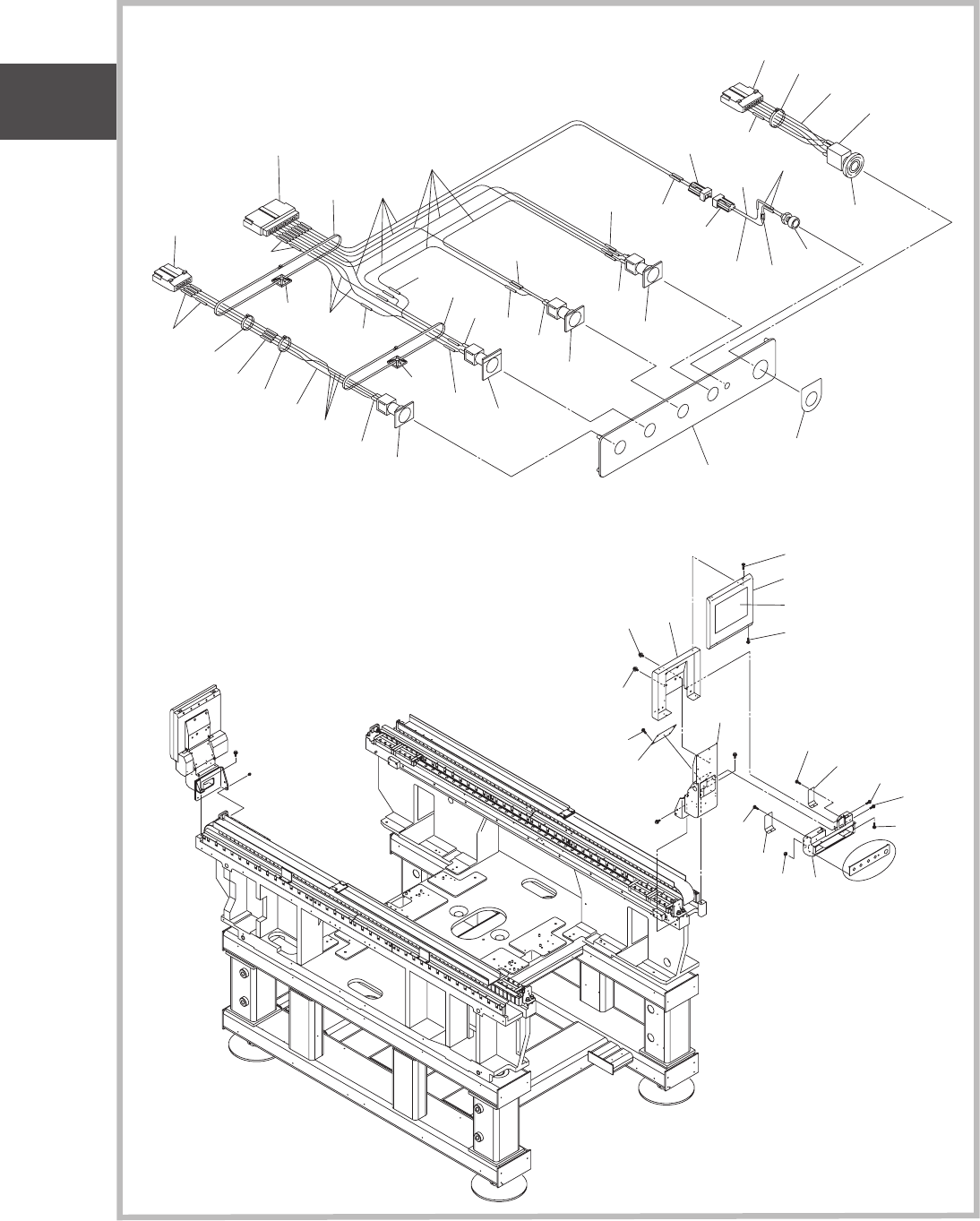

Fig. F1-3
パネル、スイッチ
Panel, Switch
Fig. F1
パネル、中央フレーム部
Panel, Frame SECTION
UNIT-5
Fig. F1
PANEL
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. F1
1104-004
Fig. F1-3
201 0914B90X MONITOR BASE F 1 1 1 1 1091401911-001
202 0914B90R COVER 1 1 1 1
1091401911-002
203 4U210136 UNIT DISPLAY 1 1 1 1
1091401911-003
204 211AD957 COVER 1 1 1 1
1091401911-004
207 211AD970 COVER 1 1 1 1
1091401911-007
208 211AD969 COVER 1 1 1 1
1091401911-008
209 211AE094 MONITOR_B_PLATE 1 1 1 1
1091401911-009
210 221DA062 MACHINE_SCREW 16 16 16 16
PAN M4L8 SW+FW
1091401911-010
211 221DA051 SEMS_PANHEADSCR 4 4 4 4
M3L6 1091401911-011
212 221DA053 MACHINE_SCREW 2 2 2 2
PAN M4L6 SW+FW
1091401911-012
214 221DA113 MACHINE SCREW 4 4 4 4
FLT M4L6 1091401911-014
215 221FA007 NUT_HEX 4 4 4 4
M4 1091401911-015
216 221HA004 WASHER 4 4 4 4
SW4 1091401911-016
217 221HA104 WASHER 4 4 4 4
FW4 1091401911-017
221 0914B90S MONITOR ANDER C 1 1 1 1
1091401911-021
244 0914B90F MONITOR_PANEL 1 1 1 1
1091401906-004
245 0914B90L LED SLP-721F 1 1 1 1
1091401906-005
246 4R600004 CARBONRESISTOR 1 1 1 1
1091401906-006
247 4S1B0085 SWITCH_BUTTON 1 1 1 1
1091401906-007
248 4T400003 DISPLAY ELEMENT 1 1 1 1
1091401906-008
249 23H20029 ACCESSORY_SW 1 1 1 1
1091401906-009
250 4S1B0032 SWITCH_BUTTON 1 1 1 1
1091401906-010
251 4S1B0012 SWITCH_BUTTON 1 1 1 1
1091401906-011
252 4S1B0035 SWITCH_BUTTON 1 1 1 1
1091401906-012
253 23H20003 ACCESSORY_SW 1 1 1 1
1091401906-013
254 4S1B0180 SWITCH_BUTTON 1 1 1 1
1091401906-014
255 9W310121 CORD 1 1 1 1
1091401906-015
256 9W310122 CORD 1 1 1 1
1091401906-016
257 23K10421 CASE,CONN 1 1 1 1
1091401906-017
258 23K10437 CASE,CONN 1 1 1 1
1091401906-018
259 23K10434 CASE,CONN 1 1 1 1
1091401906-019
260 4J300179 CABLE JOINT,TERMINAL 21 21 21 21 1091401906-020
261 23K10263 CASE_CONN 1 1 1 1
1091401906-021
262 4J300194 CABEL JOINT TERMINAL 2 2 2 2 1091401906-022
263 0914B907 TERMINAL 6 6 6 6
1091401906-023
264 23N20103 TUBE WIRING 35 35 35 35
1091401906-024
265 23N20117 TUBE WIRING 16 16 16 16
1091401906-025
266 23N30737 ACCESSORY,WIRING(M 5 5 5 5
1091401906-026
267 23N20115 TUBE,WIRING 6 6 6 6
1091401906-027
268 23K10433 CASE,CONN 1 1 1 1
1091401906-028
270 0914511K NAME_PLATE 1 1 1 1
1091401906-030
271 23N30011 ACCESSORY WRING 2 2 2 2
1091401906-031
UNIT-5
Fig. F1
PANEL
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
