P-310-004(1_2) - 第307页
MEMO
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
5 0916D10V COVER 2 2 1 1 109160320S-005
7 0916D20L COVER 2 2 1 1
109160320S-007
8 4U240493 UNIT_DRIVER 2 2 1 1
109160320S-008
9 0916D315 BRACKET 2 2 1 1
109160320S-009
10 0916D316 BRACKET 2 2 1 1
109160320S-010
11 211FE542 BRACKET 2 2 1 1
109160320S-011
12 211FE243 BRACKET 2 2 1 1
109160320S-012
21 09163007 ASSY_BOARD 2 2 1 1
109160320S-101
22 4W204781 CORD 2 2 1 1
109160320S-102
23 4W204785 CORD 2 2 1 1
109160320S-103
24 0916D201 FERRITE CORE 2 2 1 1
109160320S-104
25 23N30172 ACCESSORY,WIRING 2 2 1 1
109160320S-105
26 23N30632 WIRING 6 6 3 3
109160320S-106
27 0916D209 ACCESSORY_WRING
240 240 120 120
109160320S-107
28 23N30005 WIRING 4 4 2 2
109160320S-108
29 0916320K NAME PLATE 2 2 1 1
109160320S-109
31 221DA106 MACHINE SCREW 2 2 1 1
FLT M3L6 109160320S-201
32 221DA052 MACHINE SCREW 2 2 1 1
PAN M4L10 SW+FW
109160320S-202
33 221AA002 ROHS:BOLT_HEX-SCT 4 4 2 2
M2.5L8 109160320S-203
34 221HA102 WASHER 4 4 2 2
FW2.5 109160320S-204
35 221HA002 WASHER 4 4 2 2
SW2.5 109160320S-205
36 221AA100 ROHS:BOLT_HEX-SCT 16 16 8 8
M4L8 SW+FW 109160320S-206
37 221AA092 ROHS:BOLT_HEX-SCT 12 12 6 6
M3L8 SW+FW 109160320S-207
39 221AA102 ROHS:BOLT_HEX-SCT 8 8 4 4
M4L12 SW+FW 109160320S-209
40 221DA051 MACHINE SCREW 42 42 21 21
M3L6 109160320S-210
41 221DA050 MACHINE SCREW 12 12 6 6
109160320S-211
42 221DA052 MACHINE SCREW 4 4 2 2
PAN M4L10 SW+FW
109160320S-212
51 0916D332 SENSOR_PELEC 2 2 1 1
109160320S-301
66 09140126 ASSY_NAMEPLATE 2 2 1 1
1091603100-006
1104-004
Fig. G1-1
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-6
Fig. G1
HEAD 1
GS-HH100(DDH V5)
Fig. G1
高速ヘッド部
(DDH V5)
HIGH SPEED HEAD SECTION(DDH V5)
MEMO
1104-003

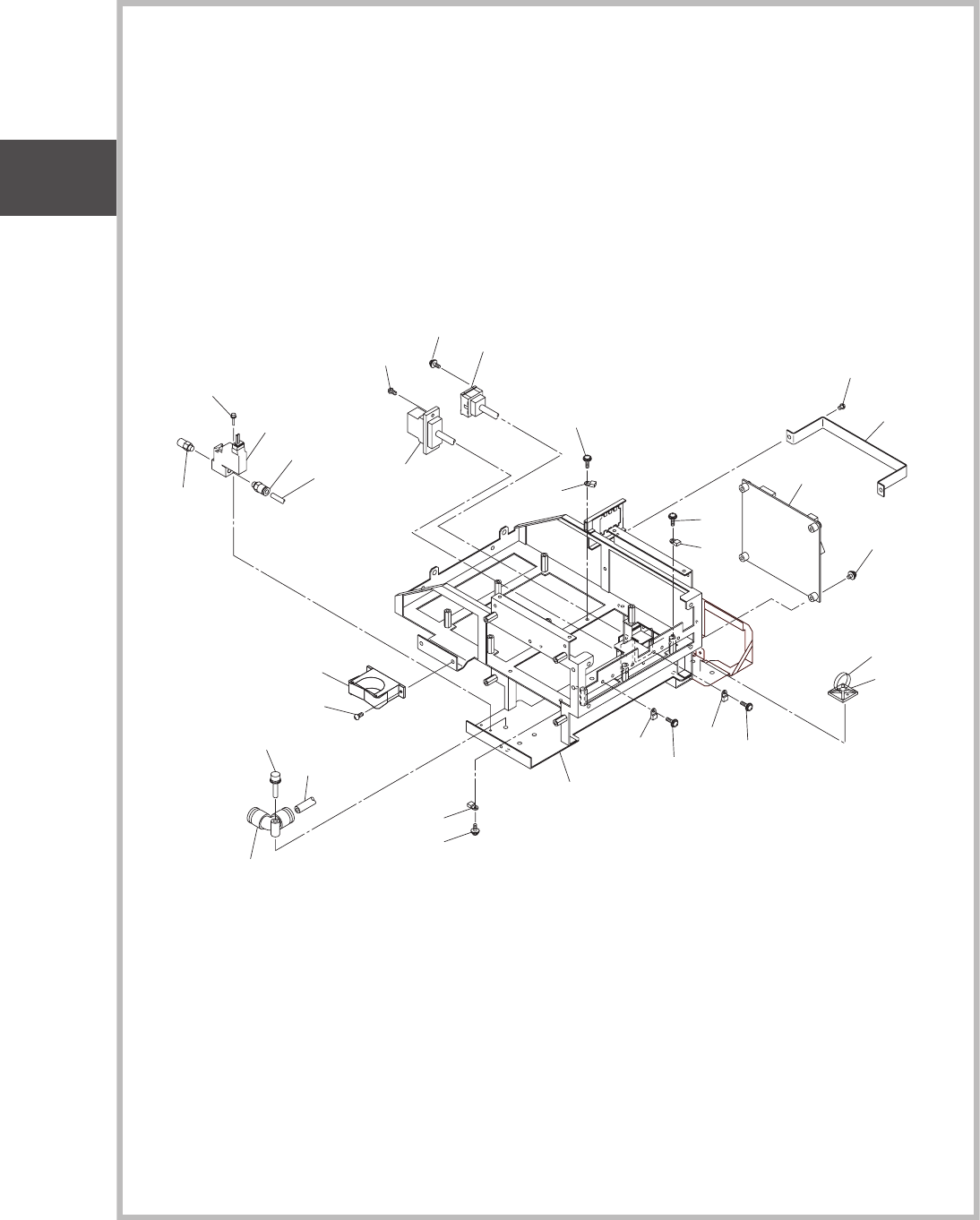

Fig. G1-2
電装ボックス
Electrical Box
139
134
131
136
141
U03
Y0902
X0307
X0305
X0306
U25
X2503
X2501
X25B2
X25X1
X25X2
X3105
X3103
X31P1
X131P1
X12501
Y0902
U25
X131P1
X12501
X31P3
A31
5NC
A
2PN
C
B
2
P
N
C
C
2PN
C
D
2PNC
A
2
N
C
B2
NC
C2NC
D2NC
3P
NC
1
P
N
C
D4N
C C
4
NC
B
4NC 3N
C
X3104D
X3104B
X3104C
X331P1
X13701
X23701
7
NC
1
NC
2N
C
3N
C
2
0
X
1
0
X
1
0B
4
NC
2
0B
6
NC 5NC
135
133
132
108
114
117
110
116
119
113
109
102
105
104
103
101
107
106
151
142
152
108
108
108
108
139
139
108
139
139
139
120
108
136
134
140
141
120
UNIT-6
Fig. G1
HEAD 1
GS-HH100(DDH V5)
Fig. G1
高速ヘッド部
(DDH V5)
HIGH SPEED HEAD SECTION(DDH V5)
