Fig. G1'-3 ベース部 Base Section 1 104-002 224 201 226 208 204 219 220 217 218 229 217 218 229 220 205 227 228 211 222 223 230 222 223 221 217 218 216 203 212 210 202 215 213 214 206 209 225 B3106 B3103 M32 GS-HH150(DDH…
MEMO

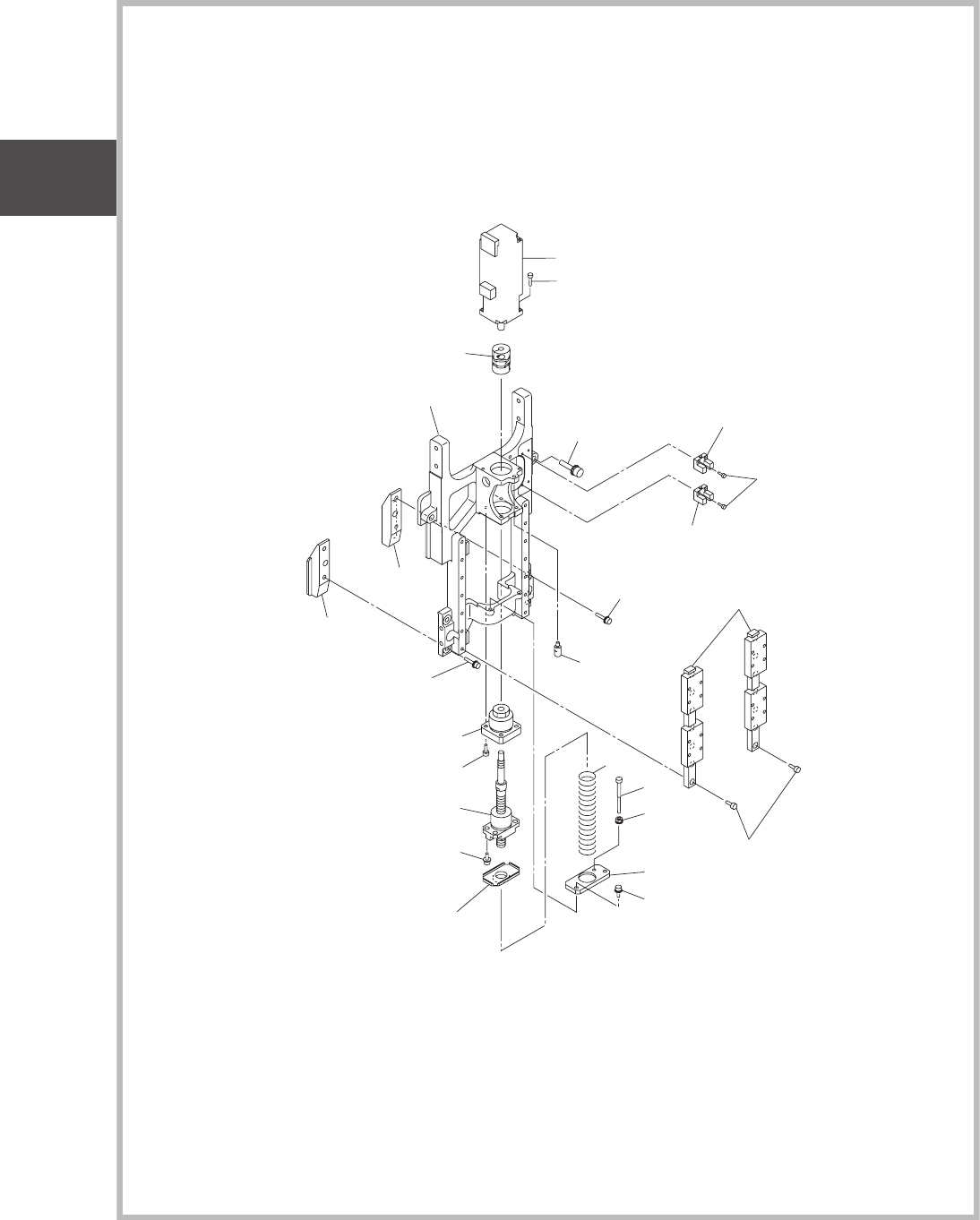

Fig. G1'-3
ベース部
Base Section
1104-002
224
201
226
208
204
219
220
217
218
229
217
218
229
220
205
227
228
211
222
223
230
222
223
221
217
218
216
203
212
210
202
215
213
214
206
209
225
B3106
B3103
M32
GS-HH150(DDH V6)
UNIT-6
Fig. G1'
HEAD
1'
Fig. G1'
高速ヘッド部
(DDH V6)
HIGH SPEED HEAD SECTION(DDH V6)
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
201 0916DL1K MOTOR 2 2 1 1 1091603L00-001
202 226J2537 STOPPER 2 2 1 1 1091603L00-002
203 0916DK19 COUPLING 2 2 1 1 1091603L00-003
204 222F0090 BEARING_UNIT 2 2 1 1 1091603L00-004
205 0916DL1E HL_BALL-SCREW 2 2 1 1 1091603L00-005
206 221AA012 BOLT_HEX-SCT 2 2 1 1 M3L25 1091603L00-006
208 0916DL1F HL_GUIDE_LINEAR 2 2 1 1 1091603L00-008
209 0916DL1Q PLATE 2 2 1 1 1091603L00-009
210 0916DL1B BASE 2 2 1 1 1091603L00-010
211 221A0468 BOLT_HEX-SCT 4 4 2 2 1091603L00-011
212 0916DL1R PLATE 2 2 1 1 1091603L00-012
213 0916DL1C SPRING_COMP 2 2 1 1 1091603L00-013
214 0916DL14 PLATE 2 2 1 1 1091603L00-014
215 0916DL1J PLATE 2 2 1 1 1091603L00-015
216 221FA005 NUT_HEX 2 2 1 1 M3 1091603L00-016
217 221HA003 WASHER 14 14 7 7 SW3 1091603L00-017
218 221HA103 WASHER 14 14 7 7 FW3 1091603L00-018
219 221AA115 ROHS_HEX-SCT 8 8 4 4 M2L8 1091603L00-019
220 221AA006 ROHS_HEX-SCT 36 36 18 18 M3L8 1091603L00-020
221 221AA020 ROHS_HEX-SCT 4 4 2 2 M4L16 1091603L00-021
222 221HA004 WASHER 8 8 4 4 SW4 1091603L00-022
223 221HA104 WASHER 8 8 4 4 FW4 1091603L00-023
224 221AA321 ROHS_HEX-SCT 4 4 2 2 M2.5L10 1091603L00-024
225 09163004 ASSY_SENSOR 2 2 1 1 1091603L00-025
226 09163005 ASSY_SENSOR 2 2 1 1 1091603L00-026
227 221HA006 WASHER 4 4 2 2 SW6 1091603L00-027
228 221HA106 WASHER 4 4 2 2 FW6 1091603L00-028
229 221AA007 ROHS_HEX-SCT 12 12 6 6 M3L10 1091603L00-029
230 221AA018 ROHS_HEX-SCT 4 4 2 2 M4L12 1091603L00-030
Fig. G1'
1104-002
Fig. G1'-3
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
GS-HH150(DDH V6)
UNIT-6
Fig. G1'
