Fig. H1-6 固定ベース Fixed Base 1 104-003 Fig. H1 シングルコンベア部 SINGLE CONVEYOR SECTION 533 534 523 529 535 536 51 1 512 518 524 513 535 539 527 506 505 517 519 531 532 525 530 535 520 531 532 520 531 532 503 501 508 507 522 5…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
401 0948C20E PLATE 1 1 1 1 1091702202-001
402 0917C20G MOTOR_STEPPING 2 2 2 2 1091702202-002
403 211FD904 BRACKET 2 2 2 2 1091702202-003
404 223Q0775 PULLEY_TIMING 2 2 2 2 1091702202-004
405 223B0456 BALL_SCREW 2 2 2 2 1091702202-005
406 221B0133 BOLT_HEX 2 2 2 2 1091702202-006
407 216B1817 HOLDER 2 2 2 2 1091702202-007
408 223Q0773 PULLEY_TIMING 2 2 2 2 1091702202-008
409 0948C202 COLLAR 2 2 2 2 1091702202-009
410 225F0566 PIPE FITTINGS 2 2 2 2 1091702202-010
411 211FD378 BRACKET 2 2 2 2 1091702202-011
412 9W210406 CABLE 2 2 2 2 1091702202-012
413 23G10001 SENSOR_PHOTO 2 2 2 2 1091702202-013
414 222D0343 BEARING_RADIAL 4 4 4 4 1091702202-014
415 216A1552 COLLAR 2 2 2 2 1091702202-015
416 216A1586 COLLAR 2 2 2 2 1091702202-016
417 216A1631 COLLAR 2 2 2 2 1091702202-017
418 221AA005 ROHS:BOLT_HEX-SCT 4 4 4 4 M3L6 1091702202-018
419 221DA013 MACHINE SCREW 4 4 4 4 PAN M3L12 1091702202-019
420 221AA017 ROHS:BOLT_HEX-SCT 8 8 8 8 M4L10 1091702202-020
421 221AA018 ROHS:BOLT_HEX-SCT 4 4 4 4 M4L12 1091702202-021
422 221AA019 ROHS:BOLT_HEX-SCT 6 6 6 6 M4L14 1091702202-022
423 221AA021 ROHS:BOLT_HEX-SCT 12 12 12 12 M4L20 1091702202-023
424 221AA031 ROHS:BOLT_HEX-SCT 8 8 8 8 M5L16 1091702202-024
425 221AA044 ROHS:BOLT_HEX-SCT 6 6 6 6 M6L20 1091702202-025
426 221AA336 ROHS:BOLT_HEX-SCT 2 2 2 2 M8L55 1091702202-026
427 221HA003 WASHER 8 8 8 8 SW3 1091702202-027
428 221HA004 WASHER 22 22 22 22 SW4 1091702202-028
429 221HA005 WASHER 8 8 8 8 SW5 1091702202-029
430 221HA006 WASHER 6 6 6 6 SW6 1091702202-030
431 221HA007 WASHER 2 2 2 2 SW8 1091702202-031
432 221HA103 WASHER 8 8 8 8 FW3 1091702202-032
433 221HA104 WASHER 14 14 14 14 FW4 1091702202-033
434 221HA106 WASHER 6 6 6 6 FW6 1091702202-034
435 221HA107 WASHER 2 2 2 2 FW8 1091702202-035
436 221HA303 ROHS:WASHER 8 8 8 8 BW5 1091702202-036
437 221CA007 SET SCREW 4 4 4 4 SET M5L6 1091702202-037
438 221BB008 ROHS:BOLT_HEX-SCT 2 2 2 2 M10L55 1091702202-038
439 221FA015 NUT_HEX 2 2 2 2 M10 1091702202-039
440 221HA204 WASHER 8 8 8 8 FWS4 1091702202-040
441 0917C303 TUBE D4 1 1 1 1 1091702202-041
442 0948C203 BLOCK(BACKUP) 2 2 2 2 1091702202-042
Fig. H1
1104-004
Fig. H1-5
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-7
Fig. H1
CONVEYOR
Fig. H1-6
固定ベース
Fixed Base
1104-003

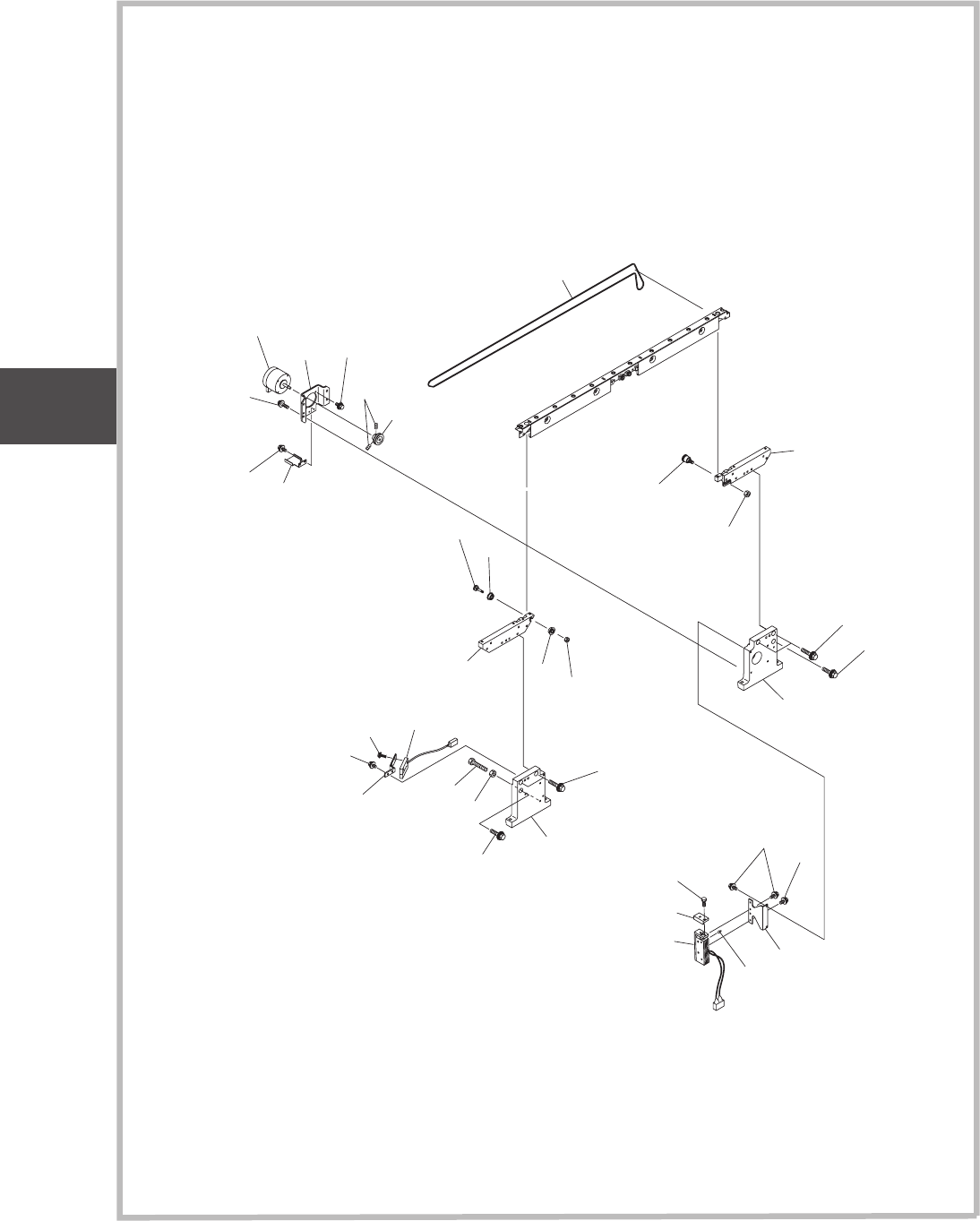

Fig. H1
シングルコンベア部
SINGLE CONVEYOR SECTION
533
534
523
529
535
536
511
512
518
524
513
535
539
527
506
505
517
519
531
532
525
530
535
520
531
532
520
531
532
503
501
508
507
522
509
510
533
534
521
533
534
539
519
531
532
502
504
531
532
526
516
514
517
515
538
537
529
535
522
531
532
528
M48
B4502
B1416
B1417
UNIT-7
Fig. H1
CONVEYOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. H1
1104-004
Fig. H1-6
501 211FE557 BRACKET(KL) 1 1 1 1 1091702400-001
502 211FE558 BRACKET(KR) 1 1 1 1 1091702400-002
503 211FE458 BRACKET(KL) 1 1 1 1 1091702400-003
504 211FE459 BRACKET(KR) 1 1 1 1 1091702400-004
505 0917C40R BRACKET 1 1 1 1 1091702400-005
506 09172502 ASSY_SENSOR 1 1 1 1 1091702400-006
507 09172507 ASSY_CYLINDER 1 1 1 1 1091702400-007
508 211G5843 BLOCK 1 1 1 1 1091702400-008
509 211FE532 BRACKET 1 1 1 1 1091702400-009
510 225F0240 PIPE FITTINGS 2 2 2 2 1091702400-010
511 211FE801 BRACKET 1 1 1 1 1091702400-011
512 4M140178 MOTOR_STEPPING 1 1 1 1 1091702400-012
513 223Q0749 PULLEY_TIMING 1 1 1 1 1091702400-013
514 223Q0755 PULLEY_TIMING 1 1 1 1 1091702400-014
515 223L0383 BELT_TIMING 1 1 1 1 1091702400-015
516 223M0059 PULLEY_FLAT 1 1 1 1 1091702400-016
517 222D0016 BEARING_RADIAL 2 2 2 2 1091702400-017
518 211FD663 BRACKET 1 1 1 1 1091702400-018
519 221AA031 ROHS:BOLT_HEX-SCT 4 4 4 4 M5L16 1091702400-019
520 221AA030 ROHS:BOLT_HEX-SCT 2 2 2 2 M5L12 1091702400-020
521 221AA016 ROHS:BOLT_HEX-SCT 2 2 2 2 M4L8 1091702400-021
522 221AA006 ROHS:BOLT_HEX-SCT 4 4 4 4 M3L8 1091702400-022
523 221AA018 ROHS:BOLT_HEX-SCT 2 2 2 2 M4L12 1091702400-023
524 221CA005 SET_SCREW 2 2 2 2 SET M4L6 1091702400-024
525 221FA005 NUT_HEX 1 1 1 1 M3 1091702400-025
526 221FA009 NUT_HEX 1 1 1 1 M5 1091702400-026
527 221DA013 MACHINE SCREW 2 2 2 2 PAN M3L12 1091702400-027
528 221AA029 ROHS:BOLT_HEX-SCT 2 2 2 2 M5L10 1091702400-028
529 221HA103 WASHER 6 6 6 6 FW3 1091702400-029
530 221HA203 WASHER 1 1 1 1 FWS3 1091702400-030
531 221HA005 WASHER 8 8 8 8 SW5 1091702400-031
532 221HA105 WASHER 8 8 8 8 FW5 1091702400-032
533 221HA004 WASHER 4 4 4 4 SW4 1091702400-033
534 221HA104 WASHER 4 4 4 4 FW4 1091702400-034
535 221HA003 WASHER 7 7 7 7 SW3 1091702400-035
536 221AA005 ROHS:BOLT_HEX-SCT 2 2 2 2 M3L6 1091702400-036
537 221BA008 ROHS:BOLT_HEX 1 1 1 1 1091702400-037
538 221FA007 NUT_HEX 1 1 1 1 M4 1091702400-038
539 221A0229 ROHS:BOLT_HEX-SCT 2 2 2 2 BUTTAN M4L8 1091702400-039
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-7
Fig. H1
CONVEYOR
