1 104-004 230 210 209 209 205 227 222 21 1 See Fig B1-4 Key No.301 See Fig B1-4 Key No.321 235 236 234 235 236 234 228 228 G H 210 229 229 204 226 21 1 229 223 221 225 223 224 213 214 212 213 214 212 213 214 212 208 206 …
MEMO
1104-004
230
210
209
209
205
227
222
211
See Fig B1-4
Key No.301
See Fig B1-4
Key No.321
235
236
234
235
236
234
228
228
G
H
210
229
229
204
226
211
229
223
221
225
223
224
213
214
212
213
214
212
213
214
212
208
206
232
233
231
207
09135238

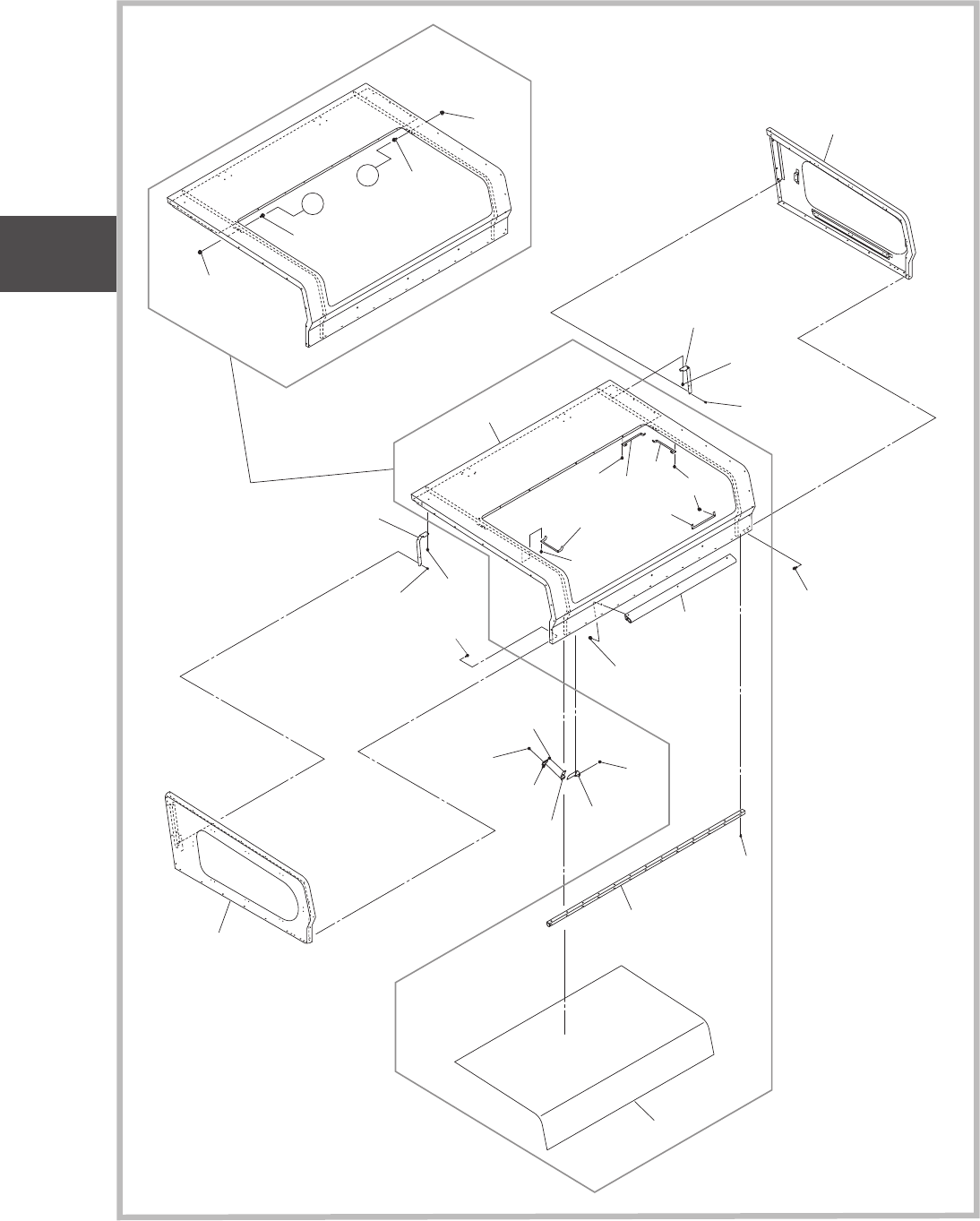

Fig. B1-3
開閉扉
C
O/C Door C
Fig. B1
カバー部
COVER SECTION
UNIT-1
Fig. B1
COVER
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. B1
1104-004
Fig. B1-3
204 0913F21A GUL COV HOKYO A 1 1 1 1 1091305200-004
205 0913F21B GUL COV HOKYO B 1 1 1 1 1091305200-005
206 0913F21C ROCK KEY BRA A 1 1 1 1 1091305200-006
207 0913F21D ROCK KEY BRA B 1 1 1 1 1091305200-007
208 23H20053 ACCESSORY_SW (KEY) 1 1 1 1 1091305200-008
209 221AA095 ROHS:BOLT_HEX-SCT 20 20 20 20 M3L10 SW+FW 1091305200-009
210 221AA100 ROHS:BOLT_HEX-SCT 10 10 10 10 M4L8 SW+FW 1091305200-010
211 221AA106 ROHS:BOLT_HEX-SCT 4 4 4 4 M4L10 SW+FW 1091305200-011
212 221EA100 ROHS:BOLT 6 6 6 6 BUTTAN M4L10 1091305200-012
213 221HA004 WASHER 6 6 6 6 SW4 1091305200-013
214 221HA104 WASHER 6 6 6 6 FW4 1091305200-014
221 0913F21R F GUL MIDDLE 1 1 1 1 1091305238-001
222 0913F21U F GUL TOP WIND 1 1 1 1 1091305238-002
223 0913F234 TOP WIND OSAE H 6 6 6 6 1091305238-003
224 0913F232 TOP WIND OSAE B 4 4 4 4 1091305238-004
225 0913F233 TOP WIND OSAE G 4 4 4 4 1091305238-005
226 211J1659 STAY 1 1 1 1 1091305238-006
227 0913F20U UNDER COUSION D 1 1 1 1 1091305238-007
228 221C0111 SET SCREW 2 2 2 2 1091305238-008
229 221DA051 SEMS_PANHEADSCR 28 28 28 28 M3L6 1091305238-009
230 221DA059 MACHINE_SCREW 13 13 13 13 M3L10 SW+FW 1091305238-010
231 221AA030 ROHS:BOLT_HEX-SCT 3 3 3 3 M5L12 1091305238-011
232 221HA005 WASHER 3 3 3 3 SW5 1091305238-012
233 221HA105 WASHER 3 3 3 3 FW5 1091305238-013
234 221FA011 NUT_HEX 2 2 2 2 M6 1091305238-014
235 221HA006 WASHER 2 2 2 2 SW6 1091305238-015
236 221HA106 WASHER 2 2 2 2 FW6 1091305238-016
UNIT-1
Fig. B1
COVER
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
