Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 4 21 1AD638 COVER 2 1 1 1 109200400C-004 5 221AA028 ROHS:BOL T_HEX-SCT 8 4 4 4 M5L8 109200400C-005 6 221HA005 W ASHER 38 19 19 19 SW5 109200400C-006 7 221HA105 W ASHER 38 …
1104-004

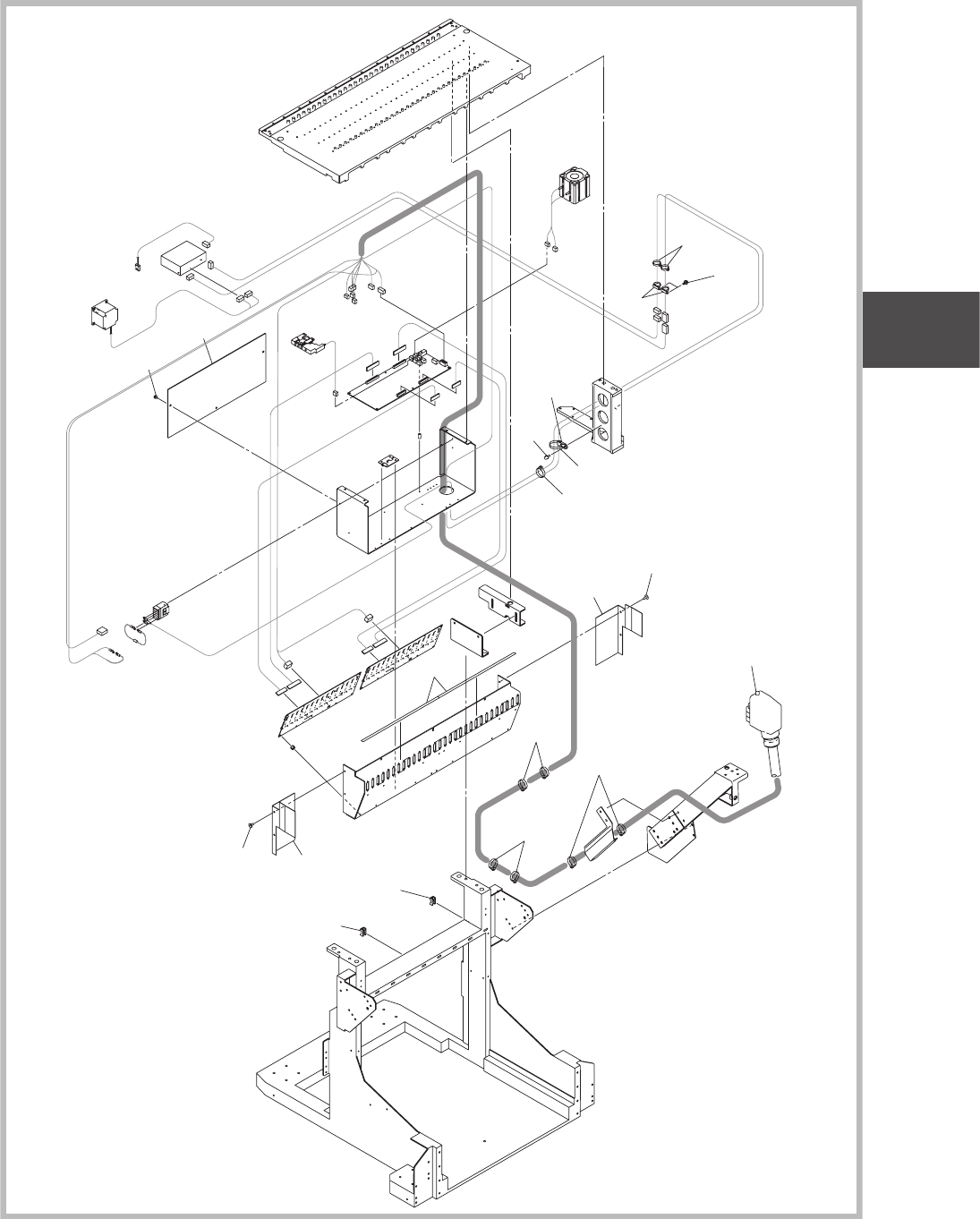

Fig. C1
Fig. C1-1
12
13
14
14
21
14
25
23
29
X6910
X6914
26
29
23
26
28
32
30
31
24
27
27
24
24
See Fig C1-4
Key No.3A4
32
28
31
X6901
X6903
X6902
X6904
X6913
Y6913
X6908
X69
X6912
X6915
X6906
B6910
B6914
X68101B
X68102
X68100B
U68
U69
X68101A
X68102
X68100A
U68
K52
X300
41
X16301
X6301
A63
X16302
X6302
M63
X6303
X6305
B6302
X6307
UNIT-2
Fig. C1
CART
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
4 211AD638 COVER 2 1 1 1 109200400C-004
5 221AA028 ROHS:BOLT_HEX-SCT 8 4 4 4
M5L8 109200400C-005
6 221HA005 WASHER 38 19 19 19
SW5 109200400C-006
7 221HA105 WASHER 38 19 19 19
FW5 109200400C-007
8 0920E20T COVER 2 1 1 1
109200400C-008
9 221DA212 MACHINE SCREW 4 2 2 2
TRS M5L6 109200400C-009
12 211AD617 COVER 2 1 1 1
109200400C-012
13 211AD618 COVER 2 1 1 1
109200400C-013
14 221DA207 MACHINE SCREW 18 9 9 9
TRS M4L6 109200400C-014
15 221AA029 ROHS:BOLT_HEX-SCT 22 11 11
11 M5L10 109200400C-015
16 221AA036 ROHS:BOLT_HEX-SCT 8 4 4 4
M5L40 109200400C-016
17 211AD641 COVER 2 1 1 1
109200400C-017
21 0920E10E EL BOX BACK 2 1 1 1
109200400C-021
22 23N30727 ACCESSORY_WIRING 4 2 2 2
109200400C-022
23 0916D60A ACCESSORY,WIRING(M 6 3 3 3
109200400C-023
24 0916E303 ACCESSORY,WIRING(M 12 6 6 6 109200400C-024
25 0920E303 ACCESSORY_WRING 4 2 2 2
109200400C-025
26 226J0373 MECH PARTS(MOUNTING BASE) 6 3 3 3 109200400C-026
27 23N30632 WIRING 6 3 3 3
109200400C-027
28 221DA208 MACHINE SCREW 4 2 2 2
TRS M4L8 109200400C-028
29 221DA213 MACHINE SCREW 2 1 1 1
TRS M5L10 109200400C-029
30 221DA022 MACHINE SCREW 2 1 1 1
PAN M4L8 109200400C-030
31 221HA104 WASHER 10 5 5 5
FW4 109200400C-031
32 221HA004 WASHER 10 5 5 5
SW4 109200400C-032
33 221AA017 ROHS:BOLT_HEX-SCT 8 4 4 4
M4L10 109200400C-033
36 0920E216 COVER 2 1 1 1
109200400C-036
37 0920E213 BOX 2 1 1 1
109200400C-037
38 221AA041 ROHS:BOLT_HEX-SCT 4 2 2 2
M6L10 109200400C-038
39 221HA106 WASHER 4 2 2 2
FW6 109200400C-039
40 221HA006 WASHER 4 2 2 2
SW6 109200400C-040
41 09200008 ASSY_NAMEPLATE 2 1 1 1
109200400C-041
42 0920E20Q KOTEI_KANAGU_1 2 1 1 1
109200400C-042
43 0920E20R KOTEI_KANAGU_2 2 1 1 1
109200400C-043
46 0920E11A PLATE 2 1 1 1
3092004119-001
47 211FE233 BRACKET 2 1 1 1
3092004119-002
48 211FE234 BRACKET 2 1 1 1
3092004119-003
49 221AA007 ROHS:BOLT_HEX-SCT 8 4 4 4
M3L10 3092004119-004
51 0920E10A COVER 2 1 1 1
2092004107-001
52 211AD673 COVER 2 1 1 1
2092004107-002
53 221DA208 MACHINE SCREW 8 4 4 4
TRS M4L8 2092004107-003
54 23N30735 ACCESSORY WIRING 2 1 1 1
2092004107-004
Fig. C1-1
Fig. C1
1104-004
UNIT-2
Fig. C1
CART
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
