Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 501 213A1024 SHAFT 2 1 1 1 3092004101-001 502 21 1DE170 PLA TE 10 5 5 5 3092004101-002 503 21 1E1085 SP ACER 20 10 10 10 3092004101-003 504 221K0079 RING C 15 20 10 10 10 …
Fig. C1-6
クランプレバー
Clump Lever
1104-003
542
543
535
537
538
536
537
538
546
547
548
539
545
537
540
549
532
531
541
533
533
534
544
503
502
502
502
502
502
501
504
503
504
503
504
503
504
503
504
504
521
525
522
523
512
511
514
513
See Fig C1-5
Key No.451
Y6913
B6910
B6914
09204101
0920410Q
09204103
09204102

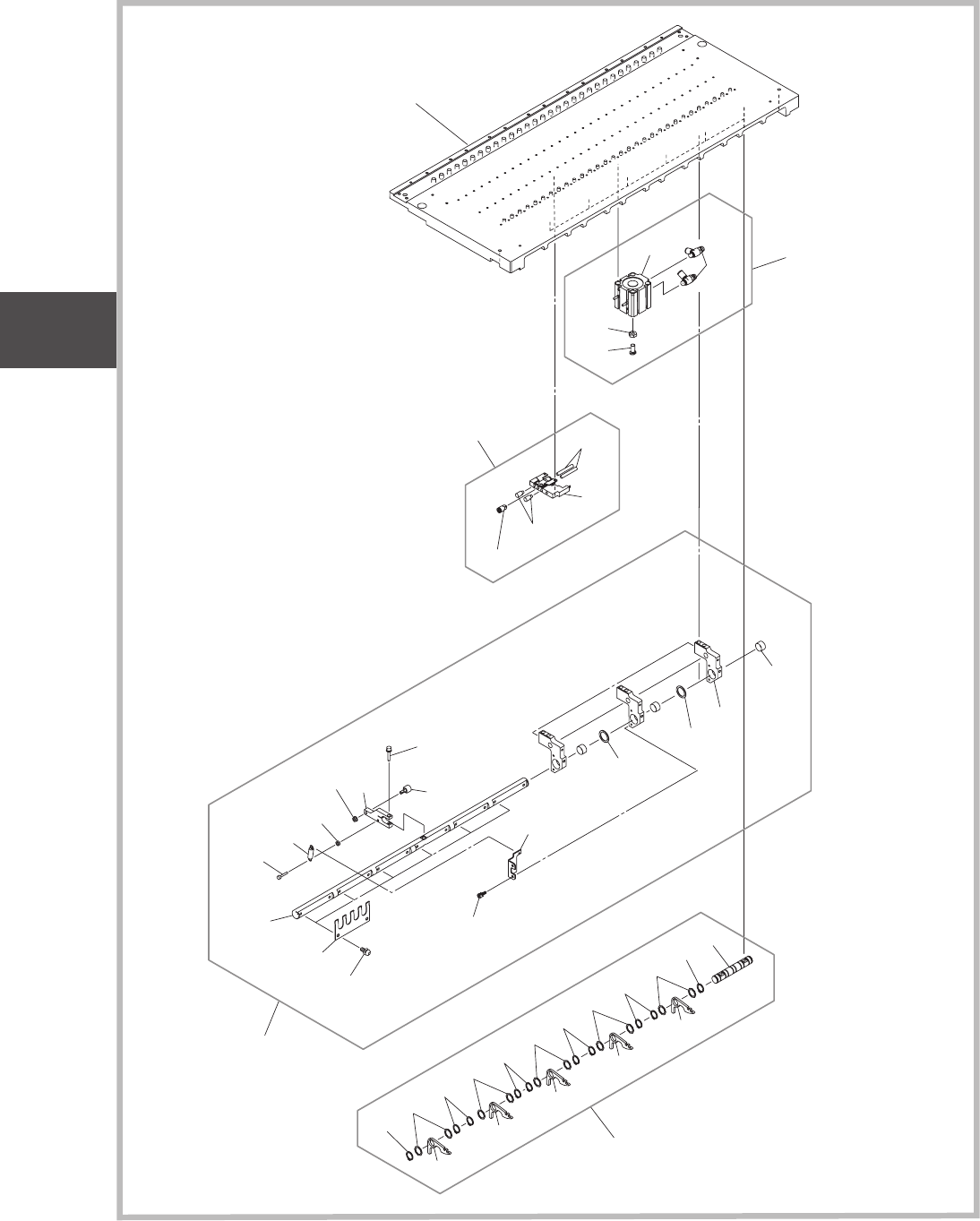

Fig. C1
カート部
CART SECTION
UNIT-2
Fig. C1
CART
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
501 213A1024 SHAFT 2 1 1 1 3092004101-001
502 211DE170 PLATE 10 5 5 5
3092004101-002
503 211E1085 SPACER 20 10 10 10
3092004101-003
504 221K0079 RING C 15 20 10 10 10
RING C 15 3092004101-004
511 09204400 ASSY_CYLINDER 2 1 1 1
3092004102-001
512 0921A058 AIR LINE EQPT 4 2 2 2
3092004102-002
513 216C0713 ROD 2 1 1 1
3092004102-003
514 221FA014 NUT_HEX 2 1 1 1
M8 3092004102-004
521 09204401 ASSY_VALVE 2 1 1 1
3092004103-001
522 225F0467 PIPE FITTINGS 2 1 1 1
3092004103-002
523 225B0059 AIR LINE EQPT 4 2 2 2
3092004103-003
525 0920E114 TUBE D6 2 1 1 1
3092004103-005
531 213A1613 SHAFT 2 1 1 1
109200410Q-001
532 222Q0211 SPRING_FLAT 24 12 12 12
109200410Q-002
533 211E1181 SPACER 4 2 2 2
109200410Q-003
534 214A0065 BUSH_BEARING 6 3 3 3
109200410Q-004
535 221A0446 BOLT,HEX-SCT 24 12 12 12
BUTTAN M5L12 109200410Q-005
536 221AA033 ROHS:BOLT_HEX-SCT 2 1 1 1
M5L25 109200410Q-006
537 221HA005 WASHER 28 14 14 14
SW5 109200410Q-007
538 221HA105 WASHER 26 13 13 13
FW5 109200410Q-008
539 221FA008 NUT_HEX 2 1 1 1
M4 109200410Q-009
540 221FA010 NUT_HEX 2 1 1 1
M5 109200410Q-010
541 216S3266 LEVER 2 1 1 1
109200410Q-011
542 222H0132 CAM FOLLOWER 2 1 1 1
109200410Q-012
543 222N0157 SPRING_TENSION 2 1 1 1
109200410Q-013
544 211FE156 BRACKET 2 1 1 1
109200410Q-014
545 221AA021 ROHS:BOLT_HEX-SCT 2 1 1 1
M4L20 109200410Q-015
546 221AA017 ROHS:BOLT_HEX-SCT 4 2 2 2
M4L10 109200410Q-016
547 221HA004 WASHER 4 2 2 2
SW4 109200410Q-017
548 221HA104 WASHER 4 2 2 2
FW4 109200410Q-018
549 222A0168 BUSH,BEARING 6 3 3 3
109200410Q-019
Fig. C1
1104-004
Fig. C1-6
UNIT-2
Fig. C1
CART
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
