P-310-004(1_2) - 第99页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 2 21 1K3639 SUPPORT 2 1 1 1 109200710A-002 3 21 1AD642 COVER 2 1 1 1 109200710A-003 4 21 1AE007 COVER 2 1 1 1 109200710A-004 5 21 1K3665 SUPPORT 2 1 1 1 109200710A-005 6 2…
28
22
23
25
26
27
32
33
29
2
19
13
14
15
13
14
15
18
22
23
13
14
15
13
14
15
13
34
34
14
15
13
14
15
13
14
15
1
1
7
4
See Fig C2-2
Key No.101
See Fig C2-3
Key No.201
8
16
16
10
3
16
10
5
17
6
12
9
16
21
20
24
24
X16302
X16301
X6302
X6301
A63

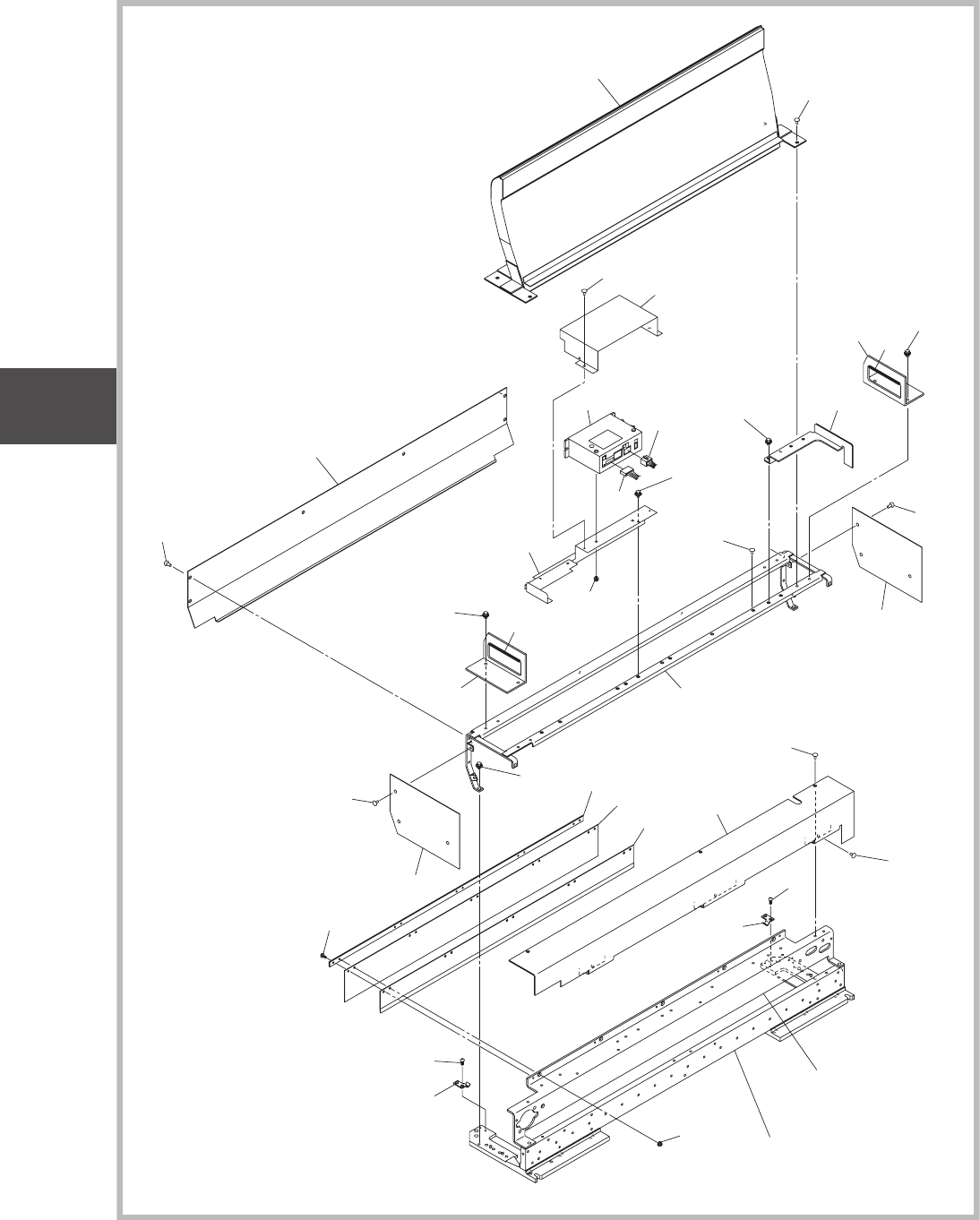

Fig. C2-1
カバー、ドライバ
Base, Driver
1104-003
Fig. C2
カッタ部
CUTTER SECTION
UNIT-2
Fig.C2
CUTTER 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
2 211K3639 SUPPORT 2 1 1 1 109200710A-002
3 211AD642 COVER 2 1 1 1
109200710A-003
4 211AE007 COVER 2 1 1 1
109200710A-004
5 211K3665 SUPPORT 2 1 1 1
109200710A-005
6 211DE428 PLATE 2 1 1 1
109200710A-006
7 211DE429 PLATE 2 1 1 1
109200710A-007
8 211FE426 BRACKET 2 1 1 1
109200710A-008
9 211FE264 BRACKET 2 1 1 1
109200710A-009
10 211AD852 COVER 4 2 2 2
109200710A-010
11 0920H10L UNIT DRIVER 2 1 1 1
109200710A-011
12 0920H10B COVER 2 1 1 1
109200710A-012
13 221AA016 ROHS:BOLT_HEX-SCT 36 18 18 18
M4L8 109200710A-013
14 221HA004 WASHER 36 18 18 18
SW4 109200710A-014
15 221HA104 WASHER 36 18 18 18
FW4 109200710A-015
16 221DA207 MACHINE SCREW 24 12 12 12
TRS M4L6 109200710A-016
17 221DA202 MACHINE SCREW 4 2 2 2
TRS M3L4 109200710A-017
18 221AA005 ROHS:BOLT_HEX-SCT 4 2 2 2
M3L6 109200710A-018
19 221AA100 ROHS:BOLT_HEX-SCT 8 4 4 4
M4L8 SW+FW 109200710A-019
20 4W204962 CORD 2 1 1 1
109200710A-020
21 0920H10W CORD 2 1 1 1
109200710A-021
22 221HA003 WASHER 14 7 7 7
SW3 109200710A-022
23 221HA103 WASHER 14 7 7 7
FW3 109200710A-023
24 0920H10K MECH PARTS 4 2 2 2
109200710A-024
25 211DE292 PLATE 2 1 1 1
109200710A-025
26 212A2743 GUIDE 2 1 1 1
109200710A-026
27 211DE291 PLATE 2 1 1 1
109200710A-027
28 221AA005 ROHS:BOLT_HEX-SCT 10 5 5 5
M3L6 109200710A-028
29 221AA095 ROHS:BOLT_HEX-SCT 10 5 5 5
M3L10 SW+FW 109200710A-029
32 0920H115 HOOK_L 2 1 1 1
109200710A-032
33 0920H116 HOOK_R 2 1 1 1
109200710A-033
34 221DA107 MACHINE SCREW 8 4 4 4
FLT M3L8 109200710A-034
Fig. C2
1104-004
Fig. C2-1
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-2
Fig. C2
CUTTER 1
128
128
See Fig C2-5
Key No.403
129
130
129
130
See Fig C2-5
Key No.403
125
126
127
144
147
128
129
130
145
146
147
141
125
128
129
130
115
125
104
114
101
See Fig C2-3
Key No.201
See Fig C2-6
Key No.501
103
120
148
142
102
135
131
109
113
143
M63
09207102
X6303
X6305
121
123
124
125
118
119
117
116

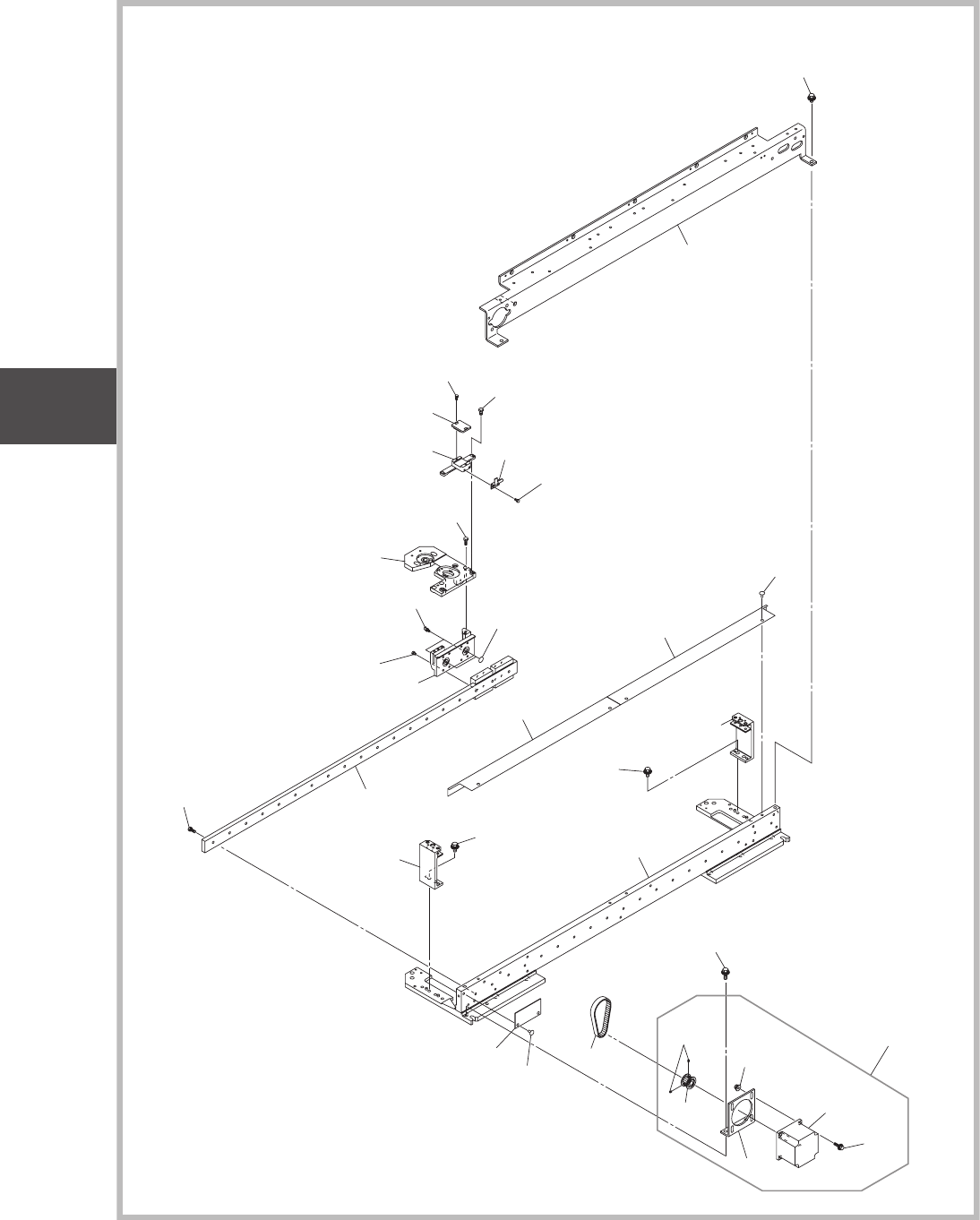

Fig. C2-2
テープガイド、モータ
Tape Guide, Motor
1104-004
Fig. C2
カッタ部
CUTTER SECTION
UNIT-2
Fig.C2
CUTTER 1
