ﾀ ﾃ x 1 7 3 . 2 0 5 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 3 - 7 1 0 9 1 3 3 2 3 2 6 5 1 7 1 4 W a s t e t a p e c u t t e r ( O p t i o n ) 残テ−プカッタ−（オプション） 1 6 1 1 1 2 8 2 1 1 9 2 0 1 8 2 2 2 3 7 4 4 …
24.PFU-3E エアー配管図(DBWB)
24.PFU-3E Pneumatic circuit diagram(DBWB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 Y3054A 1
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQL08-02S OT
2 S2173B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-01 OT
3 . 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL F15T1-F3-PL3DC24V OT
4 DBVH0180 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL OT
5 S1053E 2 SILENCER ｻｲﾚﾝｻ KM-10 OT
6 . 2 UNION ﾕﾆｵﾝ F15Z-J OT
7 K5348D 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS3001F-06 OT
8 Y3020F 2 UNION ﾕﾆｵﾝ TL6-01M OT
9 S2204A 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ MDUB40-150DM-A73HLS OT
10 Y3082F 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2VT08-02S OT
11 A4066R 1 ELBOW ｴﾙﾎﾞ KQ2L08-99 OT
12 Y3079D 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-08 OT
13 Y3069H 1 UNION ﾕﾆｵﾝ KQ2R06-08 OT
14 Y3068T 2 UNION ﾕﾆｵﾝ KQ2K06-01S OT
15 DBVH0520 2 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ AL
16 S5021M 12
SOCKET
ｿｹｯﾄ SMK-015 OT
17 H3145F 1
PLUG
ﾌﾟﾗｸﾞ KQP-08 OT .
QP-341E-MM PARTS LIST
24 - 2
24.PFU-3E エアー配管図(DBWB)
24.PFU-3E Pneumatic circuit diagram(DBWB)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
10
9
13
3
2
3
2
6
5
17
14
Waste tape cutter(Option)
残テ−プカッタ−（オプション）
16
11
12
8
21
19
20
18
22
23
7
4
4
1
15
X8
25 - 1

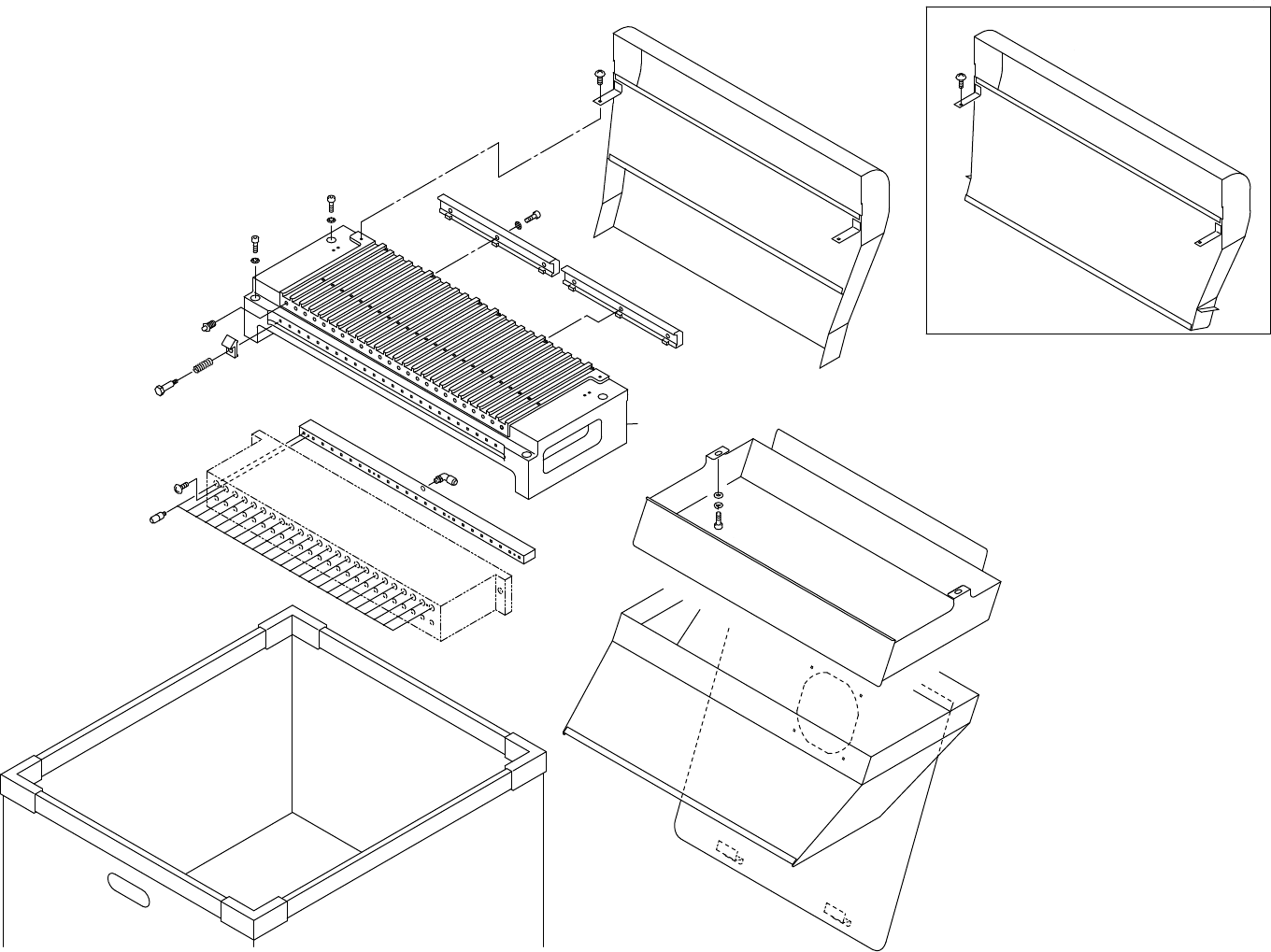

25.固定デバイス(MFタイプ)(DBUF)
25.Fixed device(MF type)(DBUF)
25.固定デバイス(MFタイプ)(DBUF)
25.Fixed device(MF type)(DBUF)
QP-341E -MM PARTS LIST
25.固定デバイス(MFタイプ)(DBUF)
25.Fixed device(MF type)(DBUF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DBUF3010 1 BASE ﾍﾞｰｽ FE
2 H5345A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M8X40L FE
3 W1014A 4
WASHER, CONICAL
ﾜｯｼｬ 皿
M-8-H FE
4 DBUF3020 2 CLAMPER ｸﾗﾝﾊﾟ FE
5 H5321A 6
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X12L FE
6 W1013A 6
WASHER, CONICAL
ﾜｯｼｬ 皿
M-6-H FE
7 DBUF3030 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ AL
8 DBUF3040 1 BOX, DUST BOX ﾀﾞｽﾄ OT
9 DBUF3052 1 DUCT ﾀﾞｸﾄ FE
10 H5299A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X12L FE
11 W1023A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
12 W1044A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
13 DBUF3061 1 DUCT ﾀﾞｸﾄ FE
14 DBUF4013 1 DUCT ﾀﾞｸﾄ FE
15 K5209A 2 SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X8L FE
16 DBUF5011 1 DUCT ﾀﾞｸﾄ FE
17 K5209A 2 SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X8L FE
18 IPA5411 24 CLAMPER ｸﾗﾝﾊﾟ FE
19 IPA5421 24 BOLT ﾎﾞﾙﾄ FE
20 IPA5430 24 SPRING ｽﾌﾟﾘﾝｸﾞ FE
21 IPA5460 24 PIN ﾋﾟﾝ FE
22 S2171B 1
JOINT, ONE-TOUCH
ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01(NYﾒｯｷ） OT
23 S5021M 24
SOCKET
ｿｹｯﾄ SMK-015 OT
24 DBUF3070 1 COVER, BLIND 蓋 ﾒｸﾗ FE
25 K5216A 2 SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M6X10L FE .
QP-341E-MM PARTS LIST
25 - 2
25.固定デバイス(MFタイプ)(DBUF)
25.Fixed device(MF type)(DBUF)
