26.2.MFU-6E(DBUN) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 DBUN0010 1 FRAME ﾌﾚｰﾑ FE 2 H5200A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X45L10.9 FE 3 W1052A 2 WASHER, FLA…

100%1 / 227
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x9
26
43
41
11
13
23
43
H=962mm
2
2
4
3
14
10
13
11
38
4
3
21
18
39
39
33
12
10
38
13
14
33
42
43
40
45
44
22
20
1
28
28
19
35
16
36
37
17
34
27
27
41
24
32
40
29
30
5
25
2
25
32
39
39
6
26
26
31
15
31
31
15
31
26
31
15
31
15
31
31
8
Waste tape cutter(Option)
残テ−プカッタ（オプション）
26 - 5
26.2.MFU-6E(DBUN)
26.2.MFU-6E(DBUN)
QP-341E -MM PARTS LIST
26.2.MFU-6E(DBUN)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DBUN0010 1 FRAME ﾌﾚｰﾑ FE
2 H5200A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X45L10.9 FE
3 W1052A 2 WASHER, FLAT ﾜｯｼｬ 平 8M/MX1.6X17(1W-8) FE
4 N1089A 2
NUT, HEX
ﾅｯﾄ 六角 M8 P=1.25 FE
5 DBUN0020 1 LINK ﾘﾝｸ FE
6 DBUN0030 1 LINK ﾘﾝｸ FE
7 DBUN0040 1 SHAFT ｼｬﾌﾄ FE
8 ADBUN8010 1 BOX, DUST BOX ﾀﾞｽﾄ DBUN1010+CGWM0380 OT
10 BHTA0860 2 BKT, ROLLER BKT ﾛｰﾗ FE
11 H5319H 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X8L H=900mm FE
12 H5324A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X20L FE
13 W1024A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
14 H5201A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X50L10.9 FE
15 BHUF0550 4 ROLLER ﾛｰﾗ FE
16 BHUF0680 1 ROD ﾛｯﾄﾞ FE
17 BHUF0690 1 COVER 蓋 FE
18 H5344A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M8X35L FE
19 BHUF0700 1 CYLINDER ｼﾘﾝﾀﾞ FE
20 BHUF0760 1 BKT BKT FE
21 H5321A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X12L FE
22 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
23 BHUF1080 2 BLOCK ﾌﾞﾛｯｸ FE
24 BHUF6210 2 BLOCK ﾌﾞﾛｯｸ FE
25 W1057A 2 WASHER, FLAT ﾜｯｼｬ 平 12M/MX2.5X24(1W-12) FE
26 S1026A 4
CIR-CLIP
ｻｰｸﾘｯﾌﾟ ST-EW-8 FE
27 H4332A 2
BEARING, DRY
ﾍﾞｱﾘﾝｸﾞ ﾄﾞﾗｲ MB1010DU FE
28 H4333A 2
BEARING, DRY
ﾍﾞｱﾘﾝｸﾞ ﾄﾞﾗｲ MB1015DU FE
29 H20151 1
PIN
ﾋﾟﾝ CCG10-45 OT
30 H20150 1
PIN
ﾋﾟﾝ CCG10-33 OT
31 W1061X 8 WASHER, FLAT ﾜｯｼｬ 平 SSWA17-2.0 FE
32 H2099T 2 PIN, SPLIT ﾋﾟﾝ 割 2.5ﾟX15 OT
33 K2023N 2 CASTER ｷｬｽﾀ PH-50 OT
34 S3003A 1
SCRAPER
ｽｸﾚｰﾊﾟ SDR-20 OT
35 A5156A 1 O RING Oﾘﾝｸﾞ P35 OT
36 H1184T 1
PACKING
ﾊﾟｯｷﾝ ISI-20 OT
37 R2063W 1 RING, BACKUP ﾘﾝｸﾞ ﾊﾞｯｸｱｯﾌﾟ GN4780V-0 OT
38 N1068A 2 NUT, U ﾅｯﾄ U M8 FE
39 H20315 4 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ ﾟ10X22 FE
40 K21405 2 CASTER, UNIVERSAL ｷｬｽﾀ 自在 No.104HB2-EP(19081) OT
41 H532OH 8
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X10L H=900mm FE
42 H5325A 8
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X22L FE
43 W1024A 8
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
44 A1022C 1 ADAPTER ｱﾀﾞﾌﾟﾀ 1033-6-1/4 OT
45 BHUF6170 1 HOSE, HYDRAULIC ﾎｰｽ 油圧 OT .
QP-341E-MM PARTS LIST
26 - 6 26.2.MFU-6E(DBUN)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x4
36
33
32
31
34
29
27
37
19
18
17
57
56
50
67
70
69
71
50
66
74
26
25
21
20
53
35
8
30
48
49
75
10
B
13
14
11
12
3
3
7
8
10
15
C
48
24
16
22
55
49
46
A
E
D
B
C
45
2
53
39
42
41
40
38
28
63
59
60
58
23
73
73
47
44
53
43
65
68
64
54
4
47
53
51
1
9
2
52
51
61
72
64
62
76
79
78
77
6
5
A
E
D
27 - 1

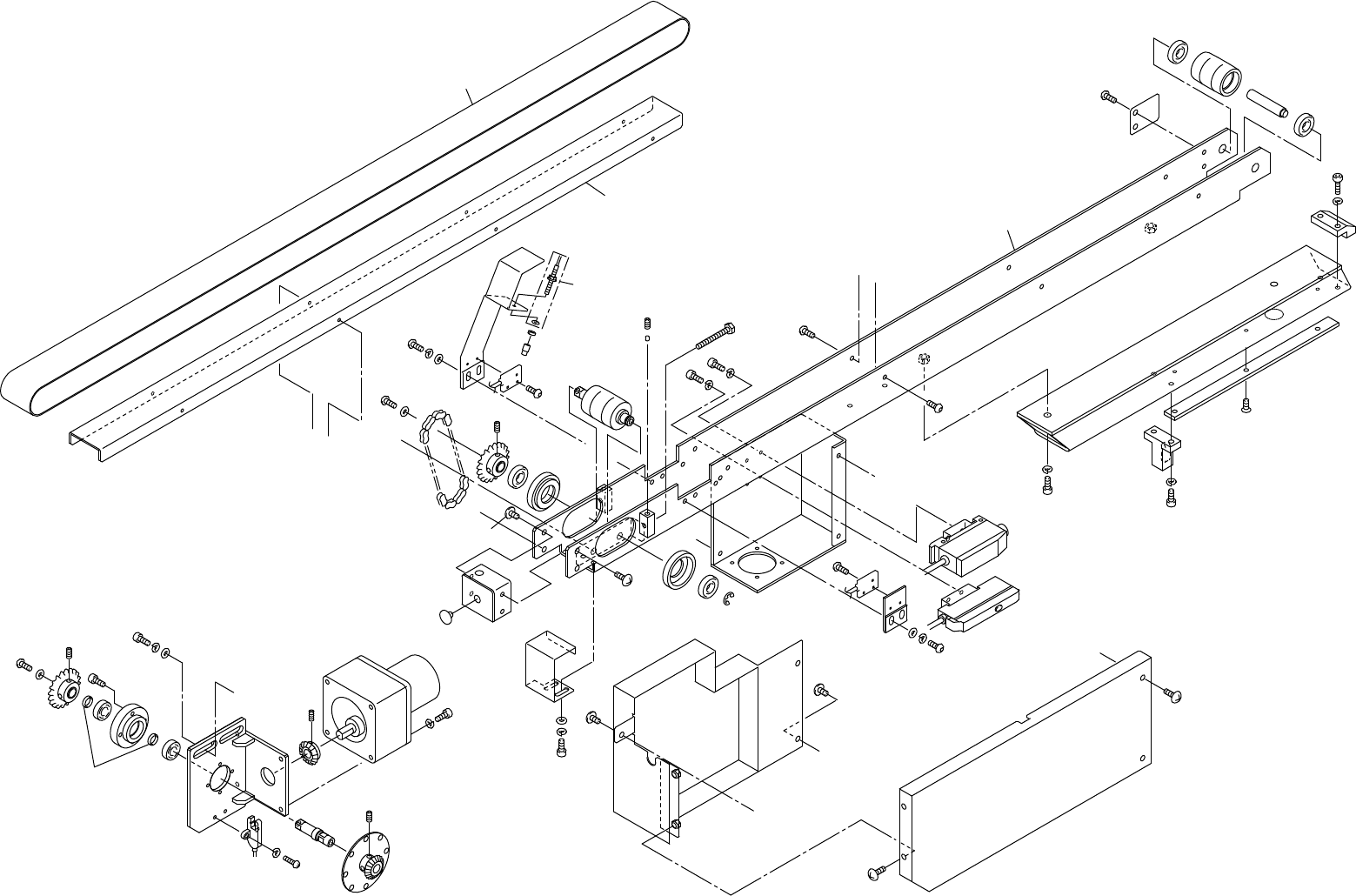

27.MFU-6E Parts eject conveyor(M)(Option)(DBQN)
27.MFU-6E NGパーツ排出コンベア(M)(オプション)(DBQN)
27.MFU-6E Parts eject conveyor(M)(Option)(DBQN)
27.MFU-6E NGパーツ排出コンベア(M)(オプション)(DBQN)
QP-341E -MM PARTS LIST
