ﾀﾃ x 1 7 3 . 2 0 5 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 3 - 7 5 6 3 6 4 3 0 5 8 5 0 4 7 4 6 4 2 6 0 5 9 4 3 5 1 4 4 4 3 1 4 4 1 3 2 3 4 3 5 3 3 2 9 8 7 5 1 0 1 1 1 2 3 8 3 9 4 0 3 7 5 0 5 8 3 4 5 4 …

37.MTU-9E シャトル(DBTN)

37.Suttle(DBTN)

番号図番 & ｺｰﾄﾞ番号個数品名規格備考材質

No. Drg.No. & Code No. QTY Description Rating Remarks Materials

174 DBTN1730 3 COLLAR BEARING ｶﾗｰﾍﾞｱﾘﾝｸﾞ FE

175 ADBTN8610 1 CLAMPER ｸﾗﾝﾊﾟ OT

176 DBTN1620 1 KNUCKLE ﾅｯｸﾙ FE

177 H5288A 1 BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X10L FE

178 W1011A 1

WASHER, CONICAL

ﾜｯｼｬ皿 M-4-L FE

179 DBTN1630 1 BKT, PIVOT BKT ｼﾃﾝ FE

180 N4019A 1 SCREW, HEX SOCKET SET ﾈｼﾞ六角穴止め M3X4L FE

181 DBTN1640 2 ARM ｱｰﾑ FE

182 H5275A 2

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴 M3X8L FE

183 W1021A 2

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 3M/M FE

184 W1042A 2 WASHER, FLAT ﾜｯｼｬ平 4W-3 FE

185 DBTN1650 1 SHAFT, PIVOT ｼｬﾌﾄｼﾃﾝ FE

186 DBTN1660 1 SHAFT, PIVOT ｼｬﾌﾄｼﾃﾝ FE

187 DBTN1670 1 BKT, SENSOR BKT ｾﾝｻ FE

188 H5275A 2

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴 M3X8L FE

189 W1021A 2

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 3M/M FE

190 DBTN1680 1 DOG ﾄﾞｯｸﾞ FE

191 H5269A 1

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴 M2.6X5L FE

192 W1020T 1

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 2.6M/M FE

193 H3063M 2 BUSHING ﾌﾞｯｼｭ 54F-0606 OT

194 S2008H 1 CYLINDER, AIR ｼﾘﾝﾀﾞｴｱ CDQSD16-2DC OT

195 H5137R 2 BOLT, STOPPER ﾎﾞﾙﾄｽﾄｯﾊﾟ STEHN7 FE

196 K5331E 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗｽﾋﾟｰﾄﾞ SSF4-M5-A-P OT

197 S40443 1 SENSOR, PHOTO ｾﾝｻﾌｫﾄ EE-SX770A OT

198 K5184H 2 SCREW, C/R PAN 小ﾈｼﾞ十穴鍋 M3X8L FE

199 W1021A 2

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 3M/M FE

200 DBTN1750 1 COVER ｶﾊﾞｰ FE

201 H5320A 2

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴 M6X10L FE

202 H5330A 2

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴 M6X40L FE

203 W1024A 2

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 6M-M FE

204 W1045A 2 WASHER, FLAT ﾜｯｼｬ平 4W-6 FE

205 DBVH0560 1 SEAL ｼｰﾙ PL .

QP-341E-MM PARTS LIST

37 - 6

37.MTU-9E シャトル(DBTN)

37.MTU-9E Suttle(DBTN)

ﾀﾃx173.205

Ref.31-1

Ref.33-7

x4.5

38 - 1

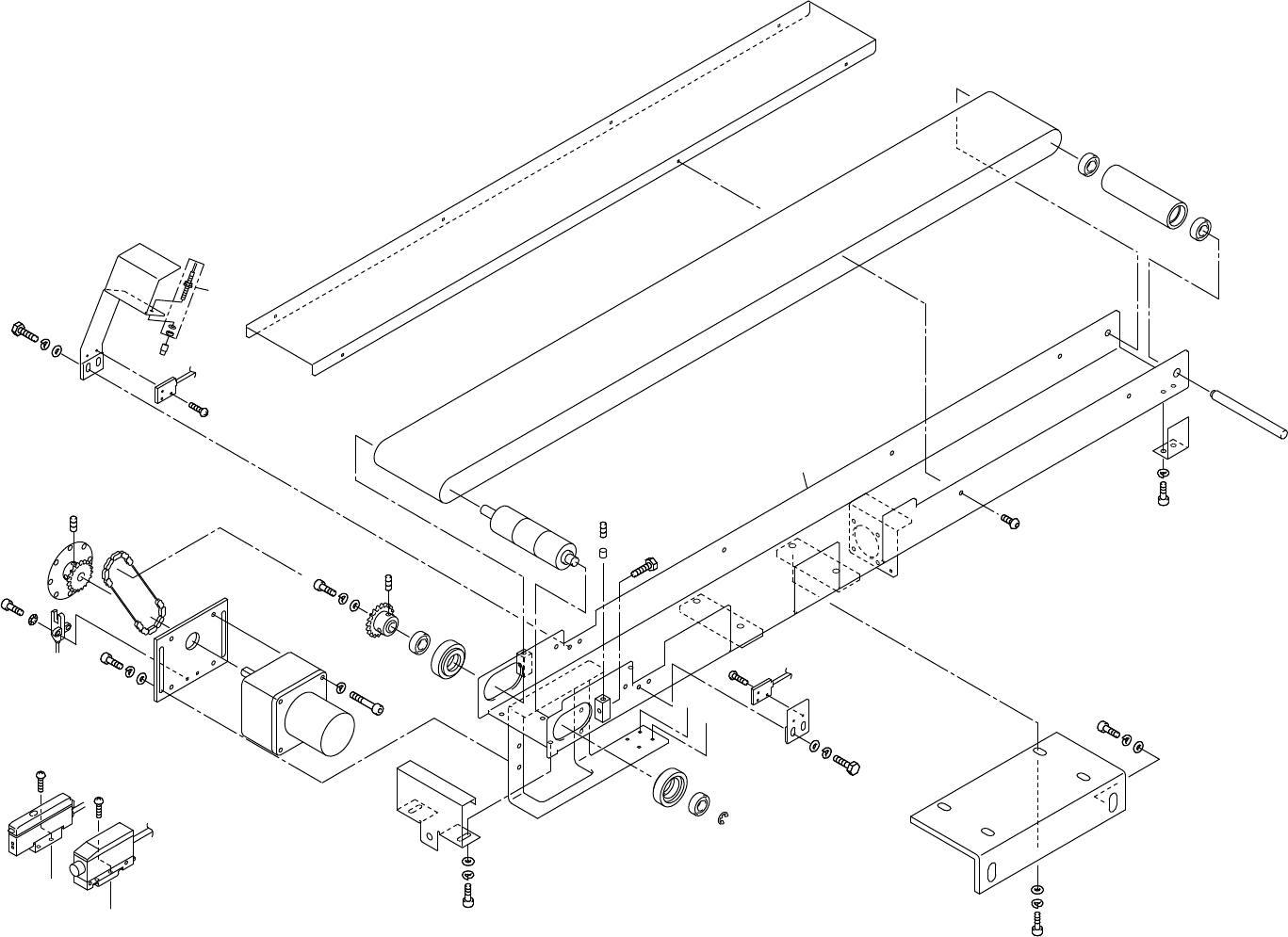

38.MTU-9E NGパーツ排出コンベア(DBTN)

38.MTU-9E Parts eject conveyor(DBTN)

38.MTU-9E NGパーツ排出コンベア(DBTN)

38.MTU-9E Parts eject conveyor(DBTN)

QP-341E -MM PARTS LIST

38.MTU-9E NGパーツ排出コンベア(DBTN)

38.MTU-9E Parts eject conveyor(DBTN)

番号図番 & ｺｰﾄﾞ番号個数品名規格備考材質

No. Drg.No. & Code No. QTY Description Rating Remarks Materials

1 DBTN5512 1 FRAME ﾌﾚｰﾑ FE

2 K5255H 7

SCREW, HEX SOCKET BUTTON

小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X5L FE

3 H5173A 2

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴 M4X35Lｾﾞﾝﾈｼﾞ FE

4 N4028A 2

SCREW, HEX SOCKET SET

ﾈｼﾞ六角穴止め M4X6L FE

5 DBTN5520 1 BKT BKT FE

7 H5341A 2

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴 M8X20L FE

8 W1025A 2

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 8M/M FE

9 W1046A 2 WASHER, FLAT ﾜｯｼｬ平 4W-8 FE

10 H5324A 4

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴 M6X20L FE

11 W1024A 4

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 6M/M FE

12 W1045A 4 WASHER, FLAT ﾜｯｼｬ平 4W-6 FE

13 DBTN5530 1 GUIDE, BELT ｶﾞｲﾄﾞﾍﾞﾙﾄ FE

14 DBTN5540 1 BELT ﾍﾞﾙﾄ OT

15 DBTN5550 1 PLATE ﾌﾟﾚｰﾄ FE

16 H5289A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X12L FE

17 W1022A 4

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 4M/M FE

18 W1043A 4 WASHER, FLAT ﾜｯｼｬ平 4W-4 FE

19 DBTN5560 1 STOPPER, WORK ｽﾄｯﾊﾟﾜｰｸ FE

20 H5287A 2

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴 M4X8L FE

21 W1022A 2

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 4M/M FE

22 W1043A 2 WASHER, FLAT ﾜｯｼｬ平 4W-4 FE

23 BHTA4030 1 SPROCKET ｽﾌﾟﾛｹｯﾄ OT

24 N4028A 2

SCREW, HEX SOCKET SET

ﾈｼﾞ六角穴止め M4X6L FE

25 BHTA4040 1 SPROCKET ｽﾌﾟﾛｹｯﾄ OT

25 H5298A 1

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴 M5X10L FE

27 W1023A 1

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 5M/M FE

28 W1050A 1 WASHER, FLAT ﾜｯｼｬ平 1W-5 FE

29 N4028A 2

SCREW, HEX SOCKET SET

ﾈｼﾞ六角穴止め M4X6L FE

30 BHTA4050 1 ROLLER ﾛｰﾗ FE

31 BHTA4060 1 ROLLER ﾛｰﾗ FE

32 BHTA4070 1 SHAFT ｼｬﾌﾄ FE

33 BHTA4150 1 RETAINER 押え FE

34 H5286A 2

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴 M4X6L FE

35 W1022A 2

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 4M/M FE

36 BHTC4140 2 BLOCK 駒 CO

37 BHQN0100 1 BKT, SENSOR BKT ｾﾝｻ FE

38 H5169A 2

BOLT, HEX

ﾎﾞﾙﾄ六角 M4X10L FE

39 W1022A 2

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 4M/M FE

40 W1043A 2 WASHER, FLAT ﾜｯｼｬ平 4W-4 FE

41 BHQN0160 2 HOLDER, BEARING ﾎﾙﾀﾞﾍﾞｱﾘﾝｸﾞ FE

42 BHQN1050 1 BKT, SENSOR BKT ｾﾝｻ FE

QP-341E-MM PARTS LIST

38 - 2

38.MTU-9E NGパーツ排出コンベア(DBTN)

38.MTU-9E Parts eject conveyor(DBTN)
