42.1.エアー機器 1(グルーヘッド)(オプション)(DBWI) 42.1.Air device 1(Glue head)(Option)(DBWI) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 Y9420DBAB0030 1 COLUMN ｺﾗﾑ FE 2 Y9420DB…

100%1 / 227
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
4
6
6
31
8
7
8
6
6
33
35
25
5
6
6
11
36
27
10
12
10
13
15
14
9
8
18
15
34
1
3
23
6
19
29
24
2
28
22
21
30
26
20
17
16
x2
32
42 - 1

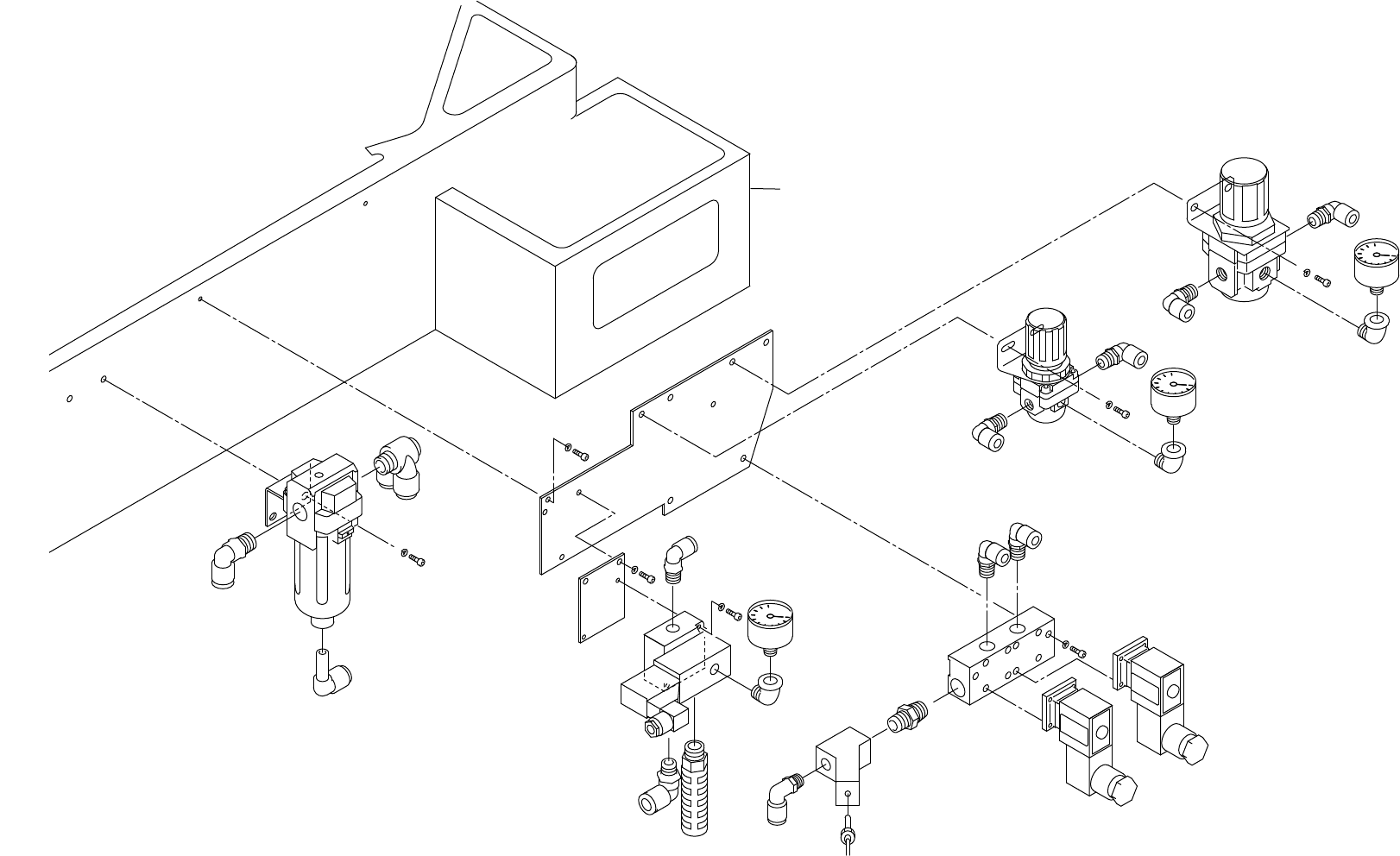

42.1.Air device 1(Glue head)(Option)(DBWI)
42.1.エアー機器 1(グルーヘッド)(オプション)(DBWI)
42.1.Air device 1(Glue head)(Option)(DBWI)
42.1.エアー機器 1(グルーヘッド)(オプション)(DBWI)
QP-341E -MM PARTS LIST
42.1.エアー機器 1(グルーヘッド)(オプション)(DBWI)
42.1.Air device 1(Glue head)(Option)(DBWI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 Y9420DBAB0030 1 COLUMN ｺﾗﾑ FE
2 Y9420DBWI0011 1 BKT BKT FE
3 Y9420DBWI0150 1 PLATE ﾌﾟﾚｰﾄ FE
4 H1027A 1
VALVE, PRESSURE REDUCING
ﾊﾞﾙﾌﾞ 減圧 ARP3000-02B OT
5 H1029A 1
VALVE, PRESSURE REDUCING
ﾊﾞﾙﾌﾞ 減圧 AR2000-02B OT
6 Y3079T 7 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L08-02S OT
7 A1029A 1 PRESSURE GAUGE 圧力計 G36-02-01 OT
8 H5061E 3
BALL, STEEL
ﾎﾞｰﾙ ｽﾁｰﾙ SL-1/8. OT
9
A1030A
1 PRESSURE GAUGE 圧力計 G36-07-01 OT
10 . 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VX2121-00-5DZ OT
11 . 1 TERMINAL ﾀｰﾐﾅﾙ VX010030A-2-4 OT
12 . 1 NIPPLE ﾆｯﾌﾟﾙ RNi3/8X1/4 OT
13 BTPZ0210 1 BLOCK ﾌﾞﾛｯｸ FE
14 . 1 SENSOR, FIBER ｾﾝｻ ﾌｧｲﾊﾞ E52-CA6D 4M OT
15 Y3080A 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L10-02S OT
16 Y3081A 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L10-03S OT
17 A4066H 1 ELBOW ｴﾙﾎﾞ KQ2L10-99 OT
18 S1059A 1
SILENCER
ｻｲﾚﾝｻ AN200-02 OT
19 . 1 VALVE, ELEC/AIR PROPORTIO ﾊﾞﾙﾌﾞ ﾃﾞﾝｸｳﾋﾚｲ VY1200-02-N OT
20 . 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFD3000-03BC OT
21 . 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2Z10-03S OT
22 H5290A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X15 FE
23 H5292A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X20 FE
24 H5297A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X8 FE
25 H5297A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X8 FE
26 H5320A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X10 FE
27 H5327A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X30 FE
28 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
29 W1023A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
30 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
31
A1030T
1 PRESSURE GAUGE 圧力計 G36-10-01 OT
32 H5320A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X10 FE
33 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
34 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
35 W1023A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
36 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE .
QP-341E-MM PARTS LIST
42 - 2
42.1.エアー機器 1(グルーヘッド)(オプション)(DBWI)
42.1.Air device 1(Glue head)(Option)(DBWI)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
1
x6
47
50
49
38
40
48
45
46
44
37
39
41
43
42
42 - 3

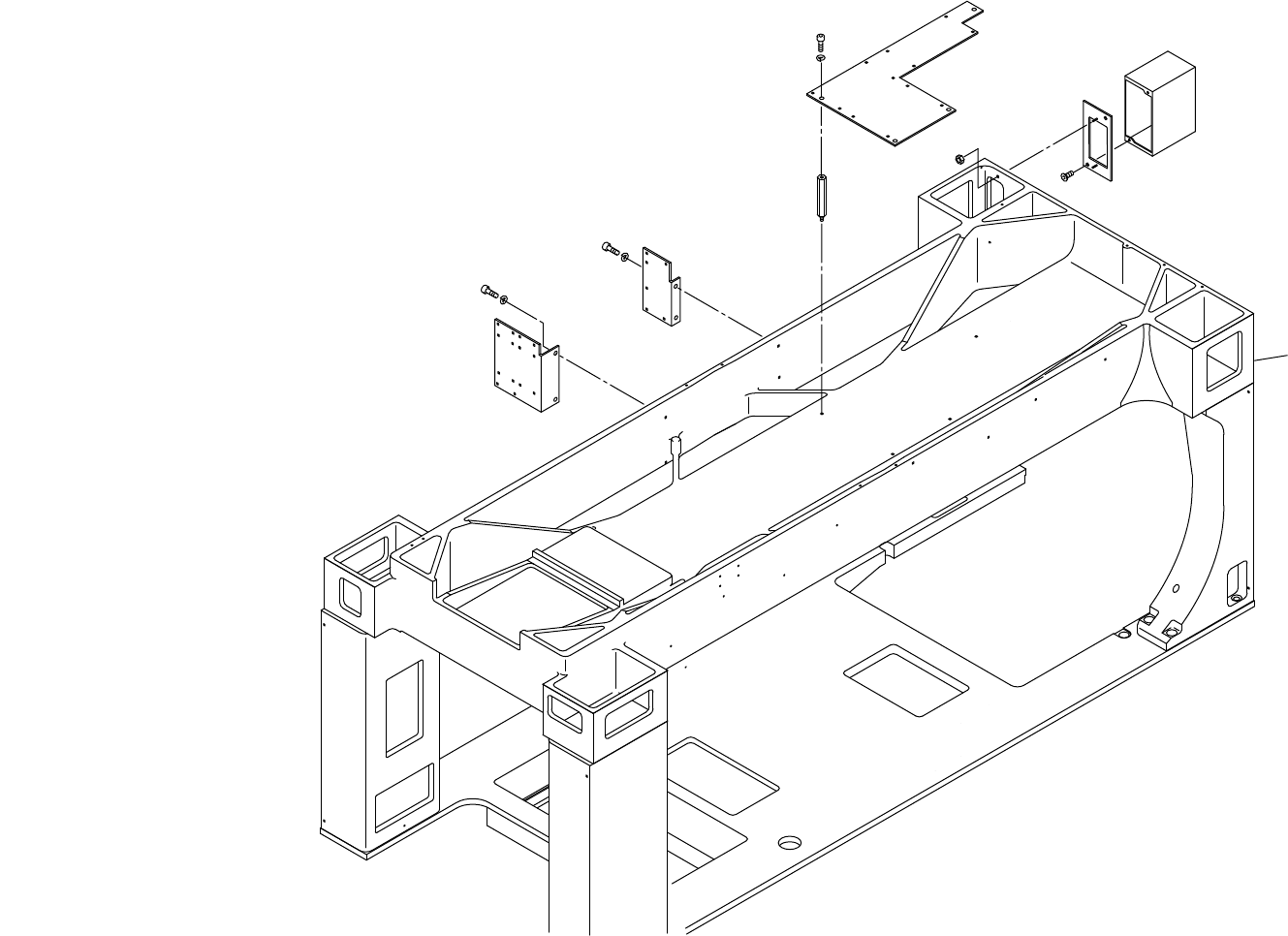

42.2.Air device 1(Glue head)(Option)(DBWI)
42.2.エアー機器 1(グルーヘッド)(オプション)(DBWI)
42.2.Air device 1(Glue head)(Option)(DBWI)
42.2.エアー機器 1(グルーヘッド)(オプション)(DBWI)
QP-341E -MM PARTS LIST
