14.Y軸スライド(DBSY) 14.Y-axis slide(DBSY) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 DBSY0010 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT 2 H5342A 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X25 FE…
T
E
N
S
I
O
N
E
D
TENSIONED
x9
A
B
B
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N･m
3.9N･m
12.8N･m
7.8N･m
7.8N･m
7.8N･m
7.8N･m
7.8N･m
7.8N･m
7.8N･m
9.3N･m
9.3N･m
7.8N･m
9.3N･m
14 - 2

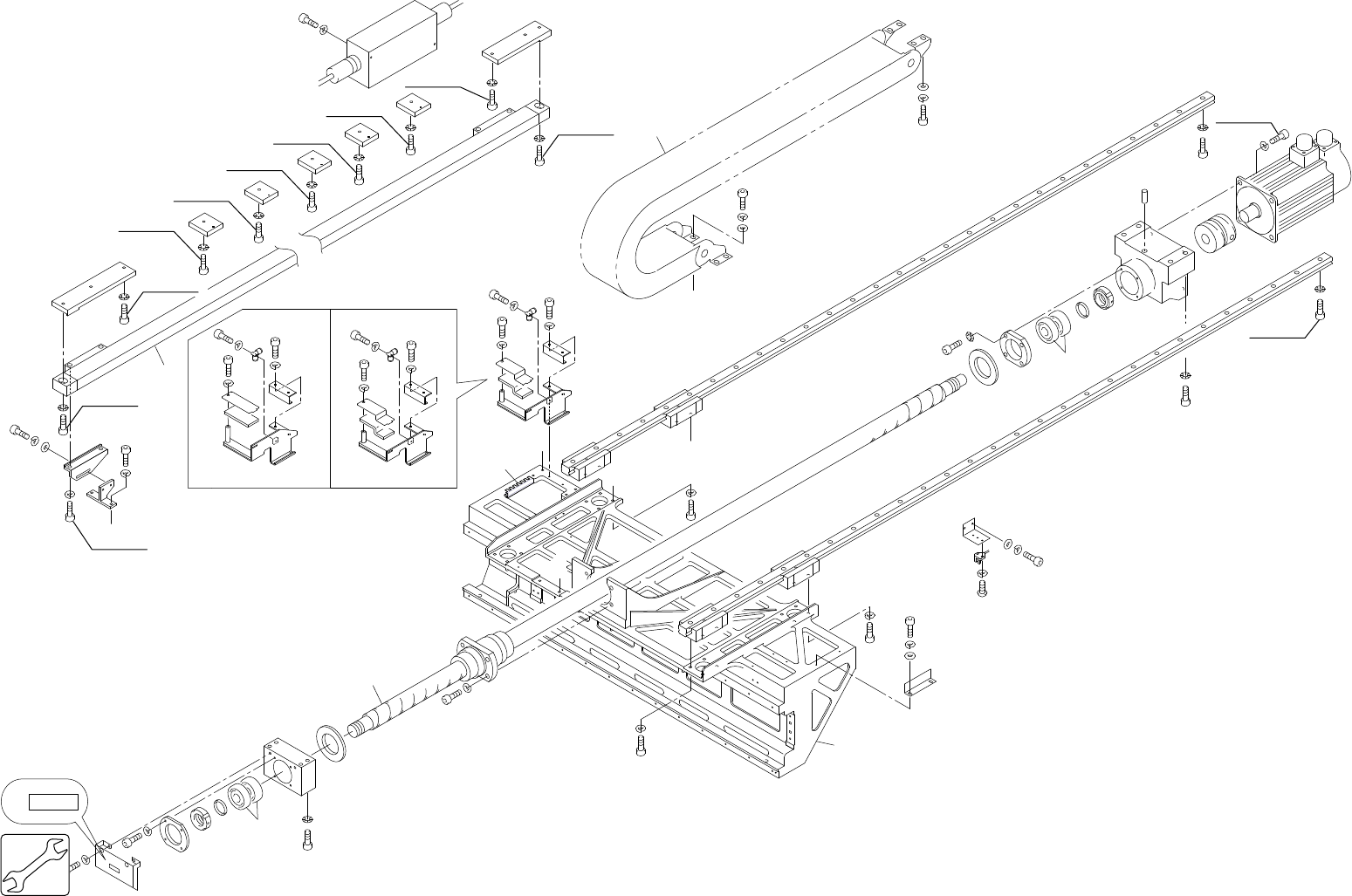

14.Y軸スライド(DBSY)
14.Y-axis slide(DBSY)
14.Y軸スライド(DBSY)
14.Y-axis slide(DBSY)
QP-341E -MM PARTS LIST
14.Y軸スライド(DBSY)
14.Y-axis slide(DBSY)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DBSY0010 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT
2 H5342A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M8X25 FE
3 W1025A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
4 DBSY0021 1 BKT, MOTOR BKT ﾓｰﾀ FE
5 H5342A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M8X25 FE
6 W1014A 4 WASHER, CONICAL ﾜｯｼｬ 皿 M-8-L FE
7 DBSY0030 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
8 H5289A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X12 FE
9 W1011A 4
WASHER, CONICAL
ﾜｯｼｬ 皿
M-4-L FE
10 DBSY0040 2 COLLAR ｶﾗｰ FE
11 DBSY0050 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
12 H5325A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X22 FE
13 W1013A 4 WASHER, CONICAL ﾜｯｼｬ 皿 M-6-L FE
14 DBSY0060 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
15 H5288A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X10 FE
16 W1022A 4
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
17 DBSY0070 2 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ LH201660AN2-P5Z1-1 OT
18 H5301A 56
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X18 FE
19 W1012A 56
WASHER, CONICAL
ﾜｯｼｬ 皿
M-5-L FE
20 DBSY0080 1 COVER ｶﾊﾞｰ FE
21 H5297A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X8 FE
22 W1023A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
23 DBSY0090 1 BKT, SENSOR BKT ｾﾝｻ FE
24 H5275A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X8 FE
25 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
26 W1042A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-3 FE
27 DBSY0100 1 DOG ﾄﾞｯｸﾞ FE
28 H5275A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X8 FE
29 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
30 W1042A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-3 FE
31 DBSY0115 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ OT
32 H5323A 8
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X18 FE
33 W1024A 8
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
34 W1045A 8 WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
35 DBSY0123 1 SLIDE, Y-AXIS ｽﾗｲﾄﾞ Y軸 FE
36 H5299A 16
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X12 FE
37 W1023A 16
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
38 DBSY0180 1 BKT BKT FE
39 H5299A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X12 FE
40 W1023A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
41 DBSY0190 1 BKT BKT FE
42 H5324A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X20 FE
QP-341E-MM PARTS LIST
14 - 3
14.Y軸スライド(DBSY)
14.Y-axis slide(DBSY)
14.Y軸スライド(DBSY)
14.Y-axis slide(DBSY)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
43 W1024A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
44 H5289A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X12 FE
45 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
46 W1043A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
47 DBSY0201 1 BLOCK ﾌﾞﾛｯｸ FE
48 H5298A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X10 FE
49 W1012A 2
WASHER, CONICAL
ﾜｯｼｬ 皿
M-5-L FE
50 DBYS0081 5 BLOCK ﾌﾞﾛｯｸ FE
51 H5298A 5
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X10 FE
52 W1012A 5
WASHER, CONICAL
ﾜｯｼｬ 皿
M-5-L FE
56 DBSY0231 1 BLOCK ﾌﾞﾛｯｸ FE
57 H5298A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X10 FE
58 W1012A 2
WASHER, CONICAL
ﾜｯｼｬ 皿
M-5-L FE
59 S3018K 2 STOPPER ｽﾄｯﾊﾟ UWFT35(TSK)ｳﾚﾀﾝ OT
60 K10073 1 COUPLING ｶｯﾌﾟﾘﾝｸﾞ SFC-050SD-24B-20B OT
61 H4218C 1 BEARING ﾍﾞｱﾘﾝｸﾞ 7005CDBC7P5 FE
62 N1026A 2 NUT, LOCK ﾅｯﾄ ﾛｯｸ ZM025 FE
63 S31207 1 SW, PHOTOELECTRIC SW 光電 EE-SX771A OT
64 K5256E 2
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M3X10 FE
65 W1021A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
66 H4218B 1 BEARING ﾍﾞｱﾘﾝｸﾞ 7005CTYDULP4 FE
67 H20952 1 PIN, PARALLEL ﾋﾟﾝ 平行 10ﾟX20ﾒﾈｼﾞﾂｷ OT
68 S3016R 1 SCALE, LINEAR ｽｹｰﾙ ﾘﾆｱ AT211-1300-539-720FJK2 OT
69 H5326A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X25 FE
70 W1013A 2
WASHER, CONICAL
ﾜｯｼｬ 皿
M-6-H FE
71 A1230D 1 AMPLIFIER ｱﾝﾌﾟ PSU200-12338 OT
72 H5286A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X6 FE
73 W1022A 2
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
74 SAM6530 1 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ OT
75 H5324A 4
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X20 FE
76 W1024A 4 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
77 DBSY0240 1 BKT, PIPING BKT 配管 FE
78 H5288A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X10 FE
79 H5293A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X25 FE
80 W1022A 3
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
81 DBSY0250 1 RETAINER, WIRING 押え 配線 FE
82 H5288A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X10 FE
83 W1022A 1
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
84 DBSY0260 1 COVER ｶﾊﾞｰ FE
85 DBSY0270 1 SEAL ｼｰﾙ OT
86 DBSY0280 1 SEAL ｼｰﾙ OT
87 Y3038A 1
UNION
ﾕﾆｵﾝ KQL10-00 OT
QP-341E-MM PARTS LIST
14 - 4
