ﾀ ﾃ x 1 7 3 . 2 0 5 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 3 - 7 5 2 2 1 3 9 4 1 4 0 4 3 1 0 4 4 9 8 5 1 5 2 5 1 1 2 3 5 5 5 4 5 4 5 5 1 9 2 0 5 0 1 6 1 5 2 1 3 2 8 2 9 2 6 6 3 2 3 1 3 7 3 8 3 3 3 3 3 …
19.2.エアー配管図(DBWB)
19.2.Pneumatic circuit diagram(DBWB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
21 H1063Z 3 VALVE, MECHANICAL ﾊﾞﾙﾌﾞ ﾒｶﾆｶﾙ VM430-01-01 OT
22 H1460A 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL GA010E1-25-PSDC24V OT
23 S21485 3 JOINT ｼﾞｮｲﾝﾄ SQE OT
24 H1459A 2 VALVE, AIR ﾊﾞﾙﾌﾞ ｴｱｰ 240-4A OT
25 S1053F 4
SILENCER
ｻｲﾚﾝｻ KM-11 OT
28 DBUF3030 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ AL
29 S5021M 26
SOCKET
ｿｹｯﾄ SMK-015 OT
32 H1063N 2 VALVE, MECHANICAL ﾊﾞﾙﾌﾞ ﾒｶﾆｶﾙ VM132-M5-33 OT
33 H1458A 2 VALVE, AIR ﾊﾞﾙﾌﾞ ｴｱｰ 110-4A2(B-PFﾂｷ) OT
34 H1457A 1 VALVE, AIR ﾊﾞﾙﾌﾞ ｴｱｰ 110-4A(N/O-PFﾂｷ) OT
35 H1456A 1 VALVE, AIR ﾊﾞﾙﾌﾞ ｴｱｰ 110-4A(N/C-PFﾂｷ) OT
36 DBUF0360 2 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ AL
70 Y3071T 4 UNION ﾕﾆｵﾝ KQ2T08-06 OT
71 K50765 2 CONNECTOR ｺﾈｸﾀ KQ2XD04-06 OT
72 Y3077S 8 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L04-01S OT
73 Y3077Z 17 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L04-M5 OT
74 Y3044N 3 UNION ﾕﾆｵﾝ M-5UN OT
75 Y30824 6 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQ2H04-M5 OT
77 Y3079T 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L08-02S OT
78 Y3079A 4 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL06-02S-X15 OT
79 S2171B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01 OT
83 Y3075A 1 UNION ﾕﾆｵﾝ KQ2U06-00 OT
84 Y3079N 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-M5 OT
85 Y3069T 1 UNION ﾕﾆｵﾝ KQ2T04-00 OT
86 Y30691 2 UNION ﾕﾆｵﾝ KQ2T04-M5 OT
91 H3145M 2 PLUG ﾌﾟﾗｸﾞ KQ2P-08 OT
92 Y3069H 2 UNION ﾕﾆｵﾝ KQ2R06-08 OT .
QP-341E-MM PARTS LIST
19 - 5
19.2.エアー配管図(DBWB)
19.2.Pneumatic circuit diagram(DBWB)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
52
21
39
41
40
43
10
44
9
8
51
5
25
11
23
55
54
54
55
19
20
50
16
15
2
13
28
29
26
6
32
31
37
38
33
33
33
33
34
36
36
36
36
35
1
24
48
45
49
47
46
30
30
30
27
27
27
18
18
18
17
14
53
53
3
9
7
22
12
42
4
残テ−プカッタ−（オプション）付きの場合は必要ありません。
Not required during the use of the optional
Waste tape cutter
エアー供給（オプション）
Air supply(Option)
56
58
57
56
58
57
x7
60
59
20 - 1

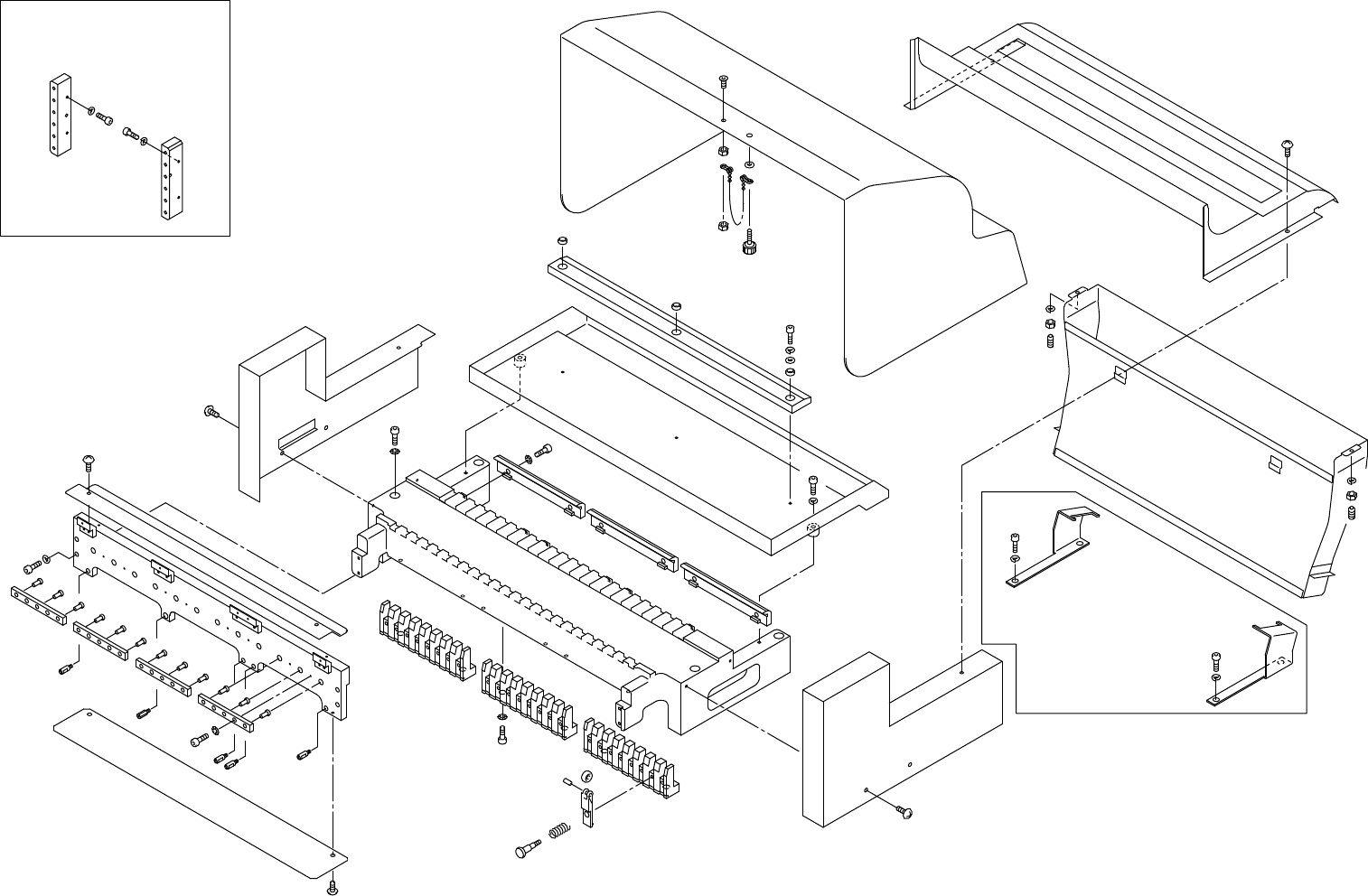

20.1.Fixed device(PF type)(DBUF)
20.1.固定デバイス(PFタイプ)(DBUF)
20.1.Fixed device(PF type)(DBUF)
20.1.固定デバイス(PFタイプ)(DBUF)
QP-341E -MM PARTS LIST
20 - 2
20.1.Fixed device(PF type)(DBUF)
20.1.固定デバイス(PFタイプ)(DBUF)
20.1.Fixed device(PF type)(DBUF)
20.1.固定デバイス(PFタイプ)(DBUF)
QP-341E -MM PARTS LIST
残テ−プカッタ−（オプション）付きの場合は必要ありません。
Not required during the use of the optional
Waste tape cutter
エアー供給（オプション）
Air supply(Option)
x7
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N･m
3.9N･m
7.8N･m
12.7N･m
7.8N･m
2.0N･m
12.7N･m
