Page 1-62

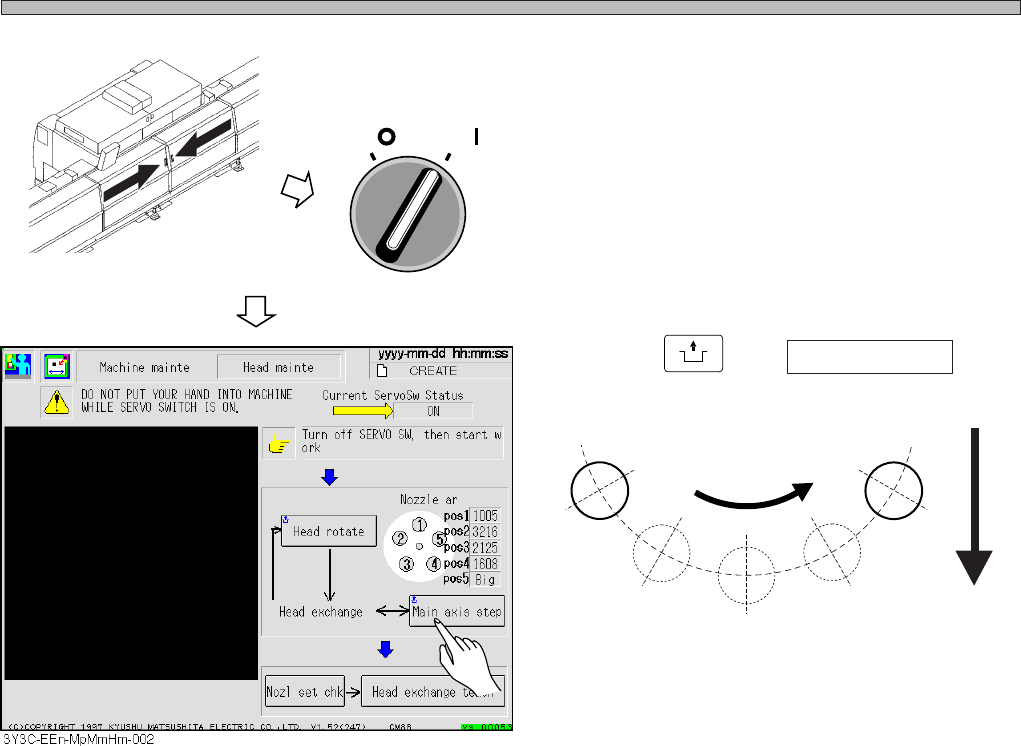

Check Every 1000 Hours (Once Two Months)
14. Close the rear center safety cover.
15. Turn on the servo switch.
16. Press
UNLOCK
and Main axis step .
• The main axis moves by step.
17. After that, repeat the procedures 4 to
16, and remove the transfer head.
OFF ( )
ON ( )
SERVO
Main axis
3Y3C-AG01
3Y3C-136E
3Y3C-E-MMD01-A06-02
Rear side
Page 1-63
REGULAR
MAINTENANCE
1
Check Every 1000 Hours (Once Two Months)

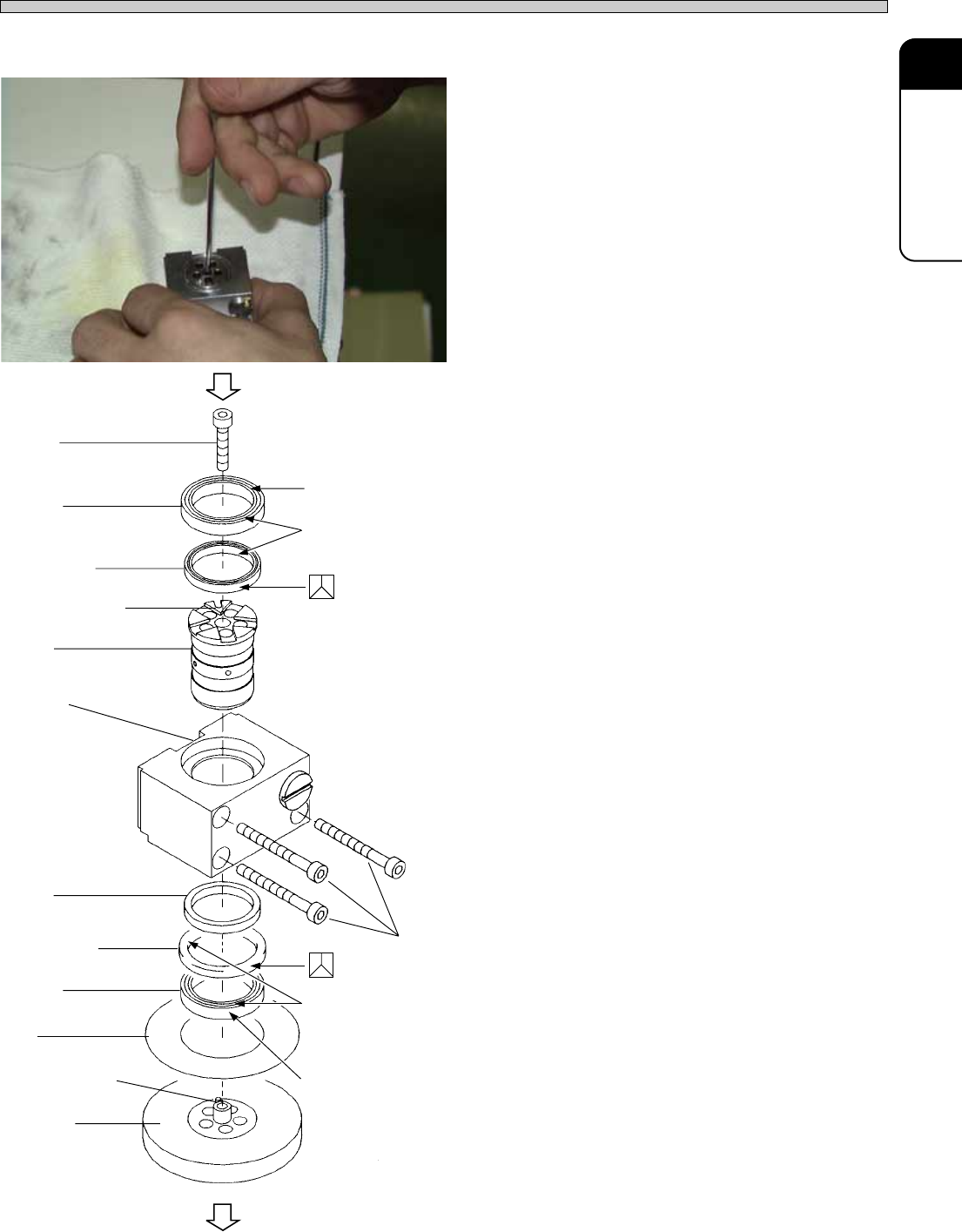

2. Cleaning and checking (changing) the transfer head
1. Remove the reflector.
∗ Loosen the bolt (A) on the top of holder with a
hexagonal wrench.
2. Remove the holder from the housing.
3. Remove the bearing, MY packing, and
O-ring.
4. Carry out cleaning, checking, and
greasing.
(Oil Grease : BARRIERTA IEL/V)
(Grease application point)
• Ball of bearing (2 points)
• Inside-diameter surface of MY packing (2
points)
5. Set the bearing, MY packing and O-
ring.
∗ Be careful of setting direction of bearing and
MY packing.
6. Set the holder to the housing.
7. Set the reflector.
∗ Adjust the positions of positioning pin of
reflector and positioning hole of holder.
To the next page
3Y3C-E-MMD01-A06-03
Put seam outside
Positioning hole
Positioning pin
Put seam outside
Bolts A
Bolt (A)
Bearing
MY packing
Holder
Housing
Reflector
Bearing
MY packing
O-ring
3Y3C-049P
3Y3C-050P
Seal
BARRIERTA IEL/V
grease application
BARRIERTA IEL/V
grease application
Page 1-64
Check Every 1000 Hours (Once Two Months)

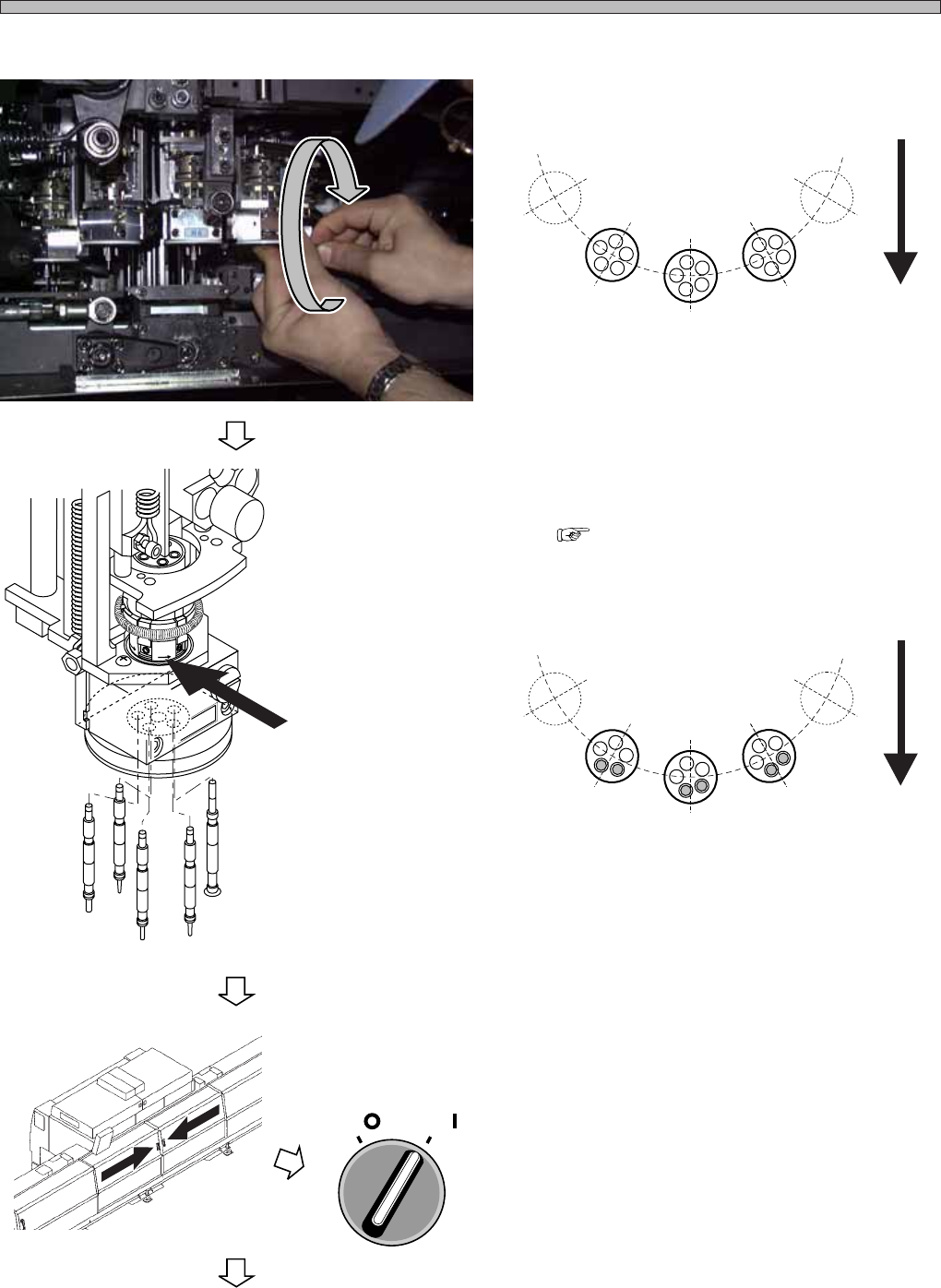

3. Setting the transfer head
1. Set the transfer head to the elevating
unit.
∗ Adjust positions of positioning hole of holder
and positioning pin at the bottom of elevating
unit.
∗ Tighten three bolts in front of the housing with
a hexagonal wrench.
2. Set the nozzle holder.
“1-4-1 Cleaning and Changing the
Nozzles”
∗ Be careful not to set the nozzle at the wrong
position (nozzle position).
3. Close the rear center safety cover.
4. Turn on the servo switch.
OFF ( )
ON ( )
SERVO
3Y3C-051
3Y3C-AG01
3Y3C-E-MMD01-A06-02
Main axis
3Y3C-122E
Rear side
Main axis
3Y3C-138E
Rear side
H11
2
3
To the next page
Nozzle position
