REGULAR
MAINTENANCE
1
Check Every 1000 Hours (Once Two Months)

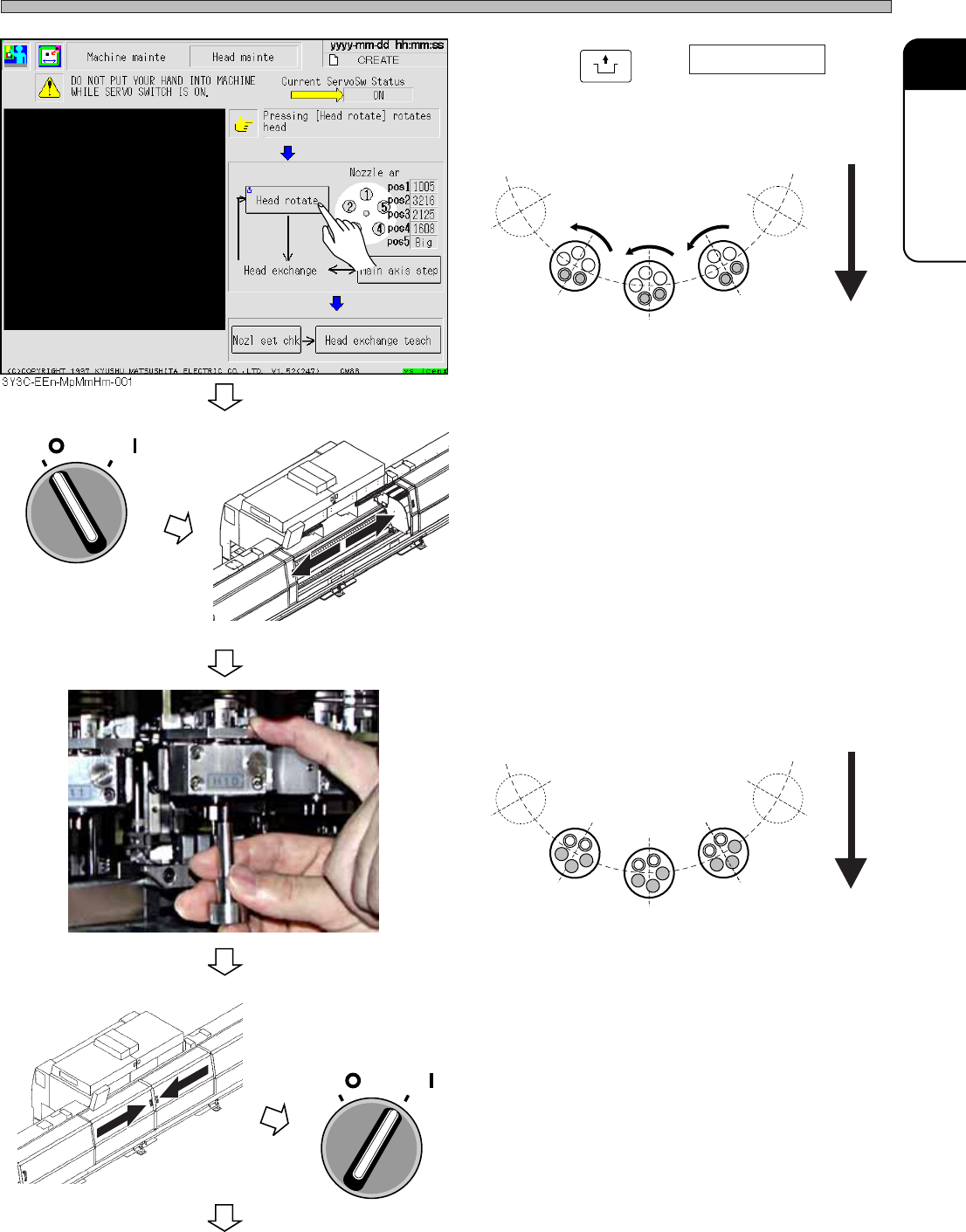

5. Press
UNLOCK
and Head rotation .
• 3 transfer heads on the rear side of machine of
main axis rotate by 180°.
6. Turn off the servo switch.
7. Open the rear center safety cover.
8. Set other nozzles.
9. Close the rear center safety cover.
10. Turn on the servo switch.
3Y3C-E-MMD01-A06-02
OFF ( )
ON ( )
SERVO
Main axis
3Y3C-AI01
3Y3C-141E
Rear side
OFF ( )
ON ( )
SERVO
3Y3C-AG01
3Y3C-112P
Main axis
3Y3C-142E
Rear side
To the next page
Page 1-66
Check Every 1000 Hours (Once Two Months)

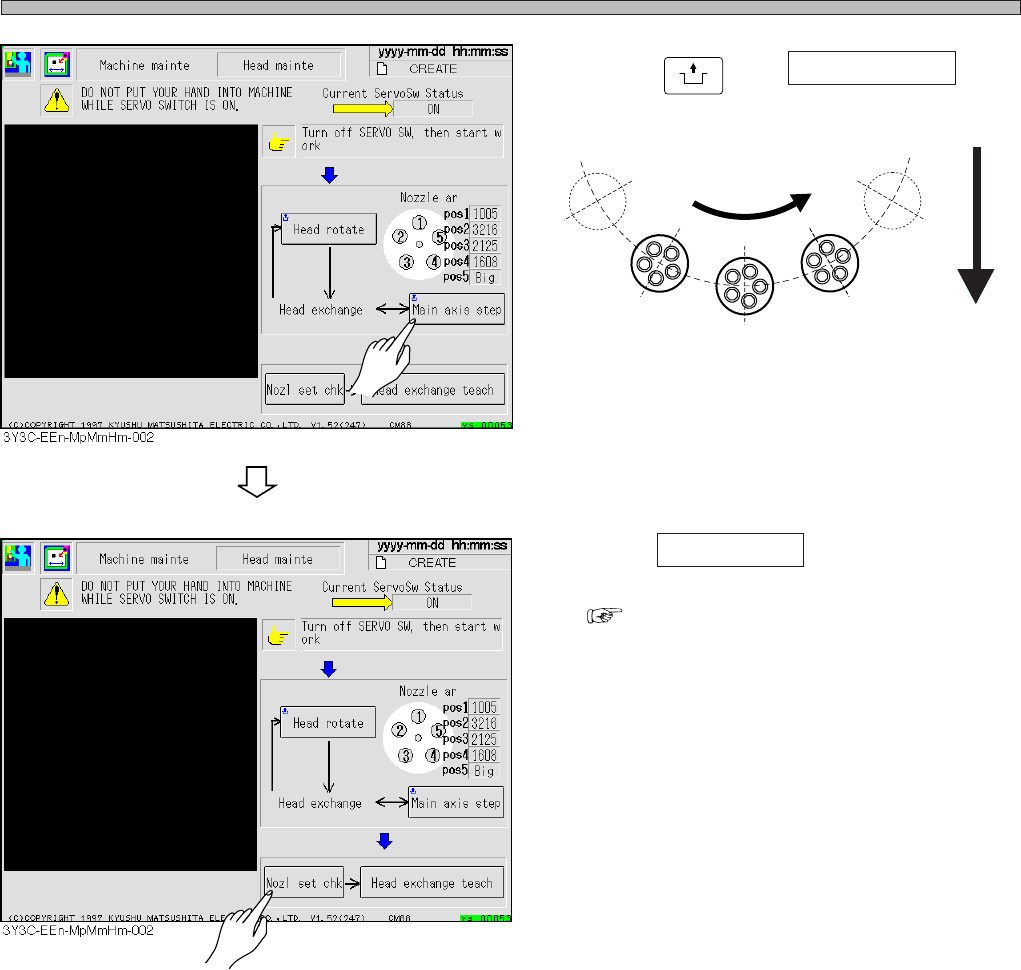

11. Press
UNLOCK
and Main axis step .
• Main axis moves by steps.
12. After that, repeat the procedures 1. to
11. and set all transfer heads.
13. Press Nozl set chk .
Procedures of nozzle setting
“1-4-1 Cleaning and Changing the Nozzles”
∗ Continue the operation to “Head exchange
teach.”
Main axis
3Y3C-143E
Rear side
3Y3C-E-MMD01-A06-02
Page 1-67
REGULAR
MAINTENANCE
1
Check Every 1000 Hours (Once Two Months)
4. Head exchange teaching
NOTICE
After removing and setting the transfer heads, make sure of carrying out “Head
exchange teach.” Not doing it may cause bad pickup.

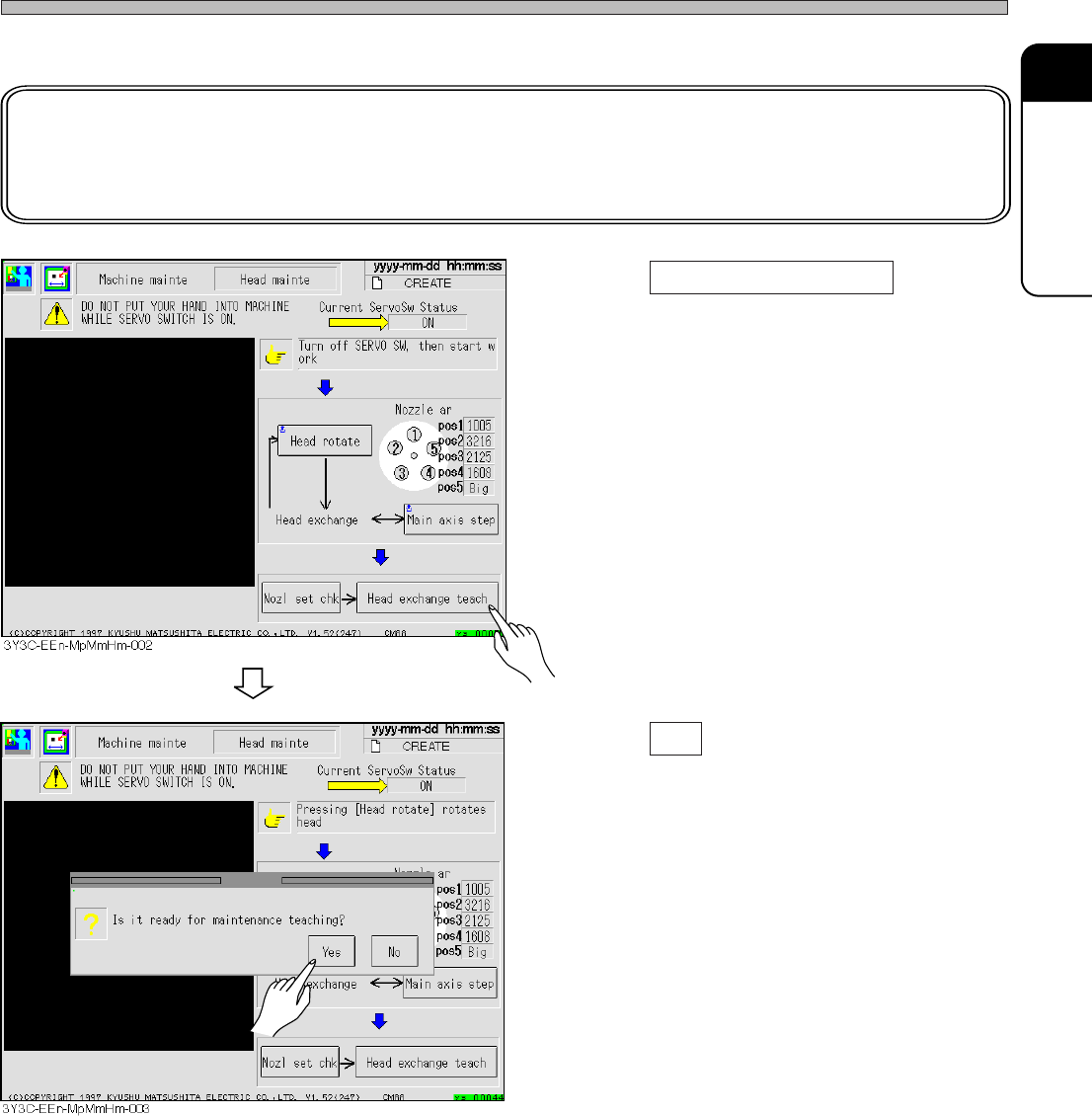

1. Press Head exchange teach .
• The message to check appears.
2. Press Yes .
• Machine parameter teaching required after
removing and setting heads is automatically
carried out.
• After “Head exchange teach,” the “Head
mainte” screen reappears.
3Y3C-E-MMD01-A06-02
