Page 1-73
REGULAR
MAINTENANCE
1
Check Every 1000 Hours (Once Two Months)
1-6-5 Cleaning and Greasing the Elevating Unit
Transfer head moves from pickup to mounting parts along to the rib cam. Also, the motor practicing
theta rotation of transfer head is set. The operation is carried out on the front side.
Clean the linear bearing, spline shaft,
cam follower, and spring, then apply
grease.
(Oil : VALIANT U2)
1.Linear bearing
Grease slider.
2.Spline shaft
Directly apply grease to the spline shaft.
3.Spline shaft
Directly apply grease to the spline shaft.
4.Cam follower
Directly apply grease to the cam follower.
5.Spring (ALBANIA 2)
Directly apply grease to the hook and joint.
6.Linear bearing
Apply grease to two points at the slider of the
rear side of spring.
∗ Apply grease to it at the right side of the
“Mount angle correction” and the left side of the
“Nozzle selection head theta rotation.”
Applying grease to “3. Nozzle Retraction Guide Spline Shaft”
1.Grease can be applied to the upper part of
nozzle retraction guide with the power off.
2.Grease can be applied to the lower part of
nozzle retraction guide holding the plate by
hand.
∗ Apply grease to the shaft on the right side of
“Mount angle correction” station and that on
the left side of “Nozzle selection head theta
rotation” station.
∗ Be careful not to give shock to the board
recognition camera.
3Y3C-E-MMD01-A06-03
1.
5.
2.
4.
3.
Board recognition camera
Mount angle
correction
Board cam
Mounting chip
Nozzle selection
head theta rotation
Front side
Main axis
Plate
Nozzle retraction guide spline shaft
010KC0AA
010KC0AA
3Y3C-097E
6.
Page 1-74
1-6-6 Supplying Grease to Elevating Unit
1) Preparation for supplying grease
[Jig, etc.]
• Dispensing gun, Exclusive nozzle
• Grease : Stamina grease RL2 (VALIANT U2)
• Illumination
• Waste
Check Every 1000 Hours (Once Two Months)
3Y3C-E-MMD01-A06-03
Exclusive Nozzle
Dispensing gun
(on the market)
3Y3C-122P
2) Grease supplying spot/direction
[Supplying spot]
Supply grease to the linearway slider balls from
A to E .
[Supplying direction]
3) Grease supplying volume/cycle
• Supplying volume: Half of each slider
• Supplying cycle : Every three months
• Working hours :
About 60 min (two persons)
Before supply
Supply grease by the half of the slider.
After supply
3Y3C-123P
A
B
C
D
E
3Y3C-189E
Linear-slider
Supply grease to the
No. 8 station from the
mounting side.
Supply grease to the
No. 7 station from the
mounting side.
Set the main axis at 600
± 10 pulse, and supply
grease to the No. 7
station from the pick-up
side.
7
B
A
C
1
10
4
2
3
5
6
8
9
11
12
Mounting side
D and E are on the pick-up side.
3Y3C-190E
Page 1-75
REGULAR
MAINTENANCE
1
Linearway C
Check Every 1000 Hours (Once Two Months)
3Y3C-E-MMD01-A06-01

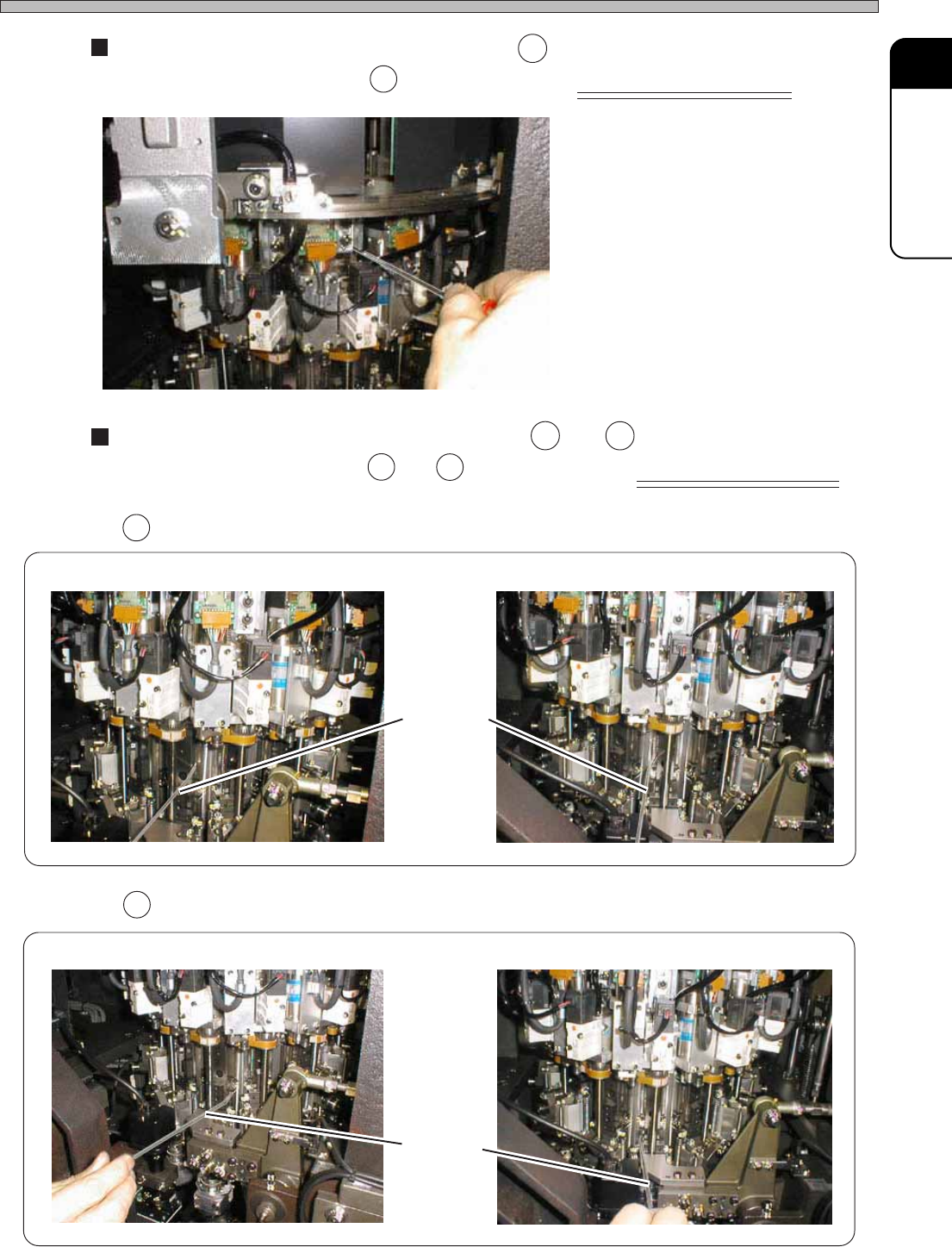

Grease supplying spot for the linearway A
Supply grease to the slider A of the No. 8 station from the mounting side.
Grease supplying spot for the linearways B and C
Supply grease to the sliders B and C of the No. 7 station from the mounting side.
3Y3C-124P
(Right side)
(Left side)
(Right side)
(Left side)
3Y3C-125P
3Y3C-126P
3Y3C-127P 3Y3C-128P
Exclusive
nozzle
Exclusive
nozzle
Linearway B
