Page 1-74
1-6-6 Supplying Grease to Elevating Unit
1) Preparation for supplying grease
[Jig, etc.]
• Dispensing gun, Exclusive nozzle
• Grease : Stamina grease RL2 (VALIANT U2)
• Illumination
• Waste
Check Every 1000 Hours (Once Two Months)
3Y3C-E-MMD01-A06-03
Exclusive Nozzle
Dispensing gun
(on the market)
3Y3C-122P
2) Grease supplying spot/direction
[Supplying spot]
Supply grease to the linearway slider balls from
A to E .
[Supplying direction]
3) Grease supplying volume/cycle
• Supplying volume: Half of each slider
• Supplying cycle : Every three months
• Working hours :
About 60 min (two persons)
Before supply
Supply grease by the half of the slider.
After supply
3Y3C-123P
A
B
C
D
E
3Y3C-189E
Linear-slider
Supply grease to the
No. 8 station from the
mounting side.
Supply grease to the
No. 7 station from the
mounting side.
Set the main axis at 600
± 10 pulse, and supply
grease to the No. 7
station from the pick-up
side.
7
B
A
C
1
10
4
2
3
5
6
8
9
11
12
Mounting side
D and E are on the pick-up side.
3Y3C-190E
Page 1-75
REGULAR
MAINTENANCE
1
Linearway C
Check Every 1000 Hours (Once Two Months)
3Y3C-E-MMD01-A06-01
Grease supplying spot for the linearway A
Supply grease to the slider A of the No. 8 station from the mounting side.
Grease supplying spot for the linearways B and C
Supply grease to the sliders B and C of the No. 7 station from the mounting side.
3Y3C-124P
(Right side)
(Left side)
(Right side)
(Left side)
3Y3C-125P
3Y3C-126P
3Y3C-127P 3Y3C-128P
Exclusive
nozzle
Exclusive
nozzle
Linearway B
Page 1-76
Check Every 1000 Hours (Once Two Months)
3Y3C-E-MMD01-A06-01

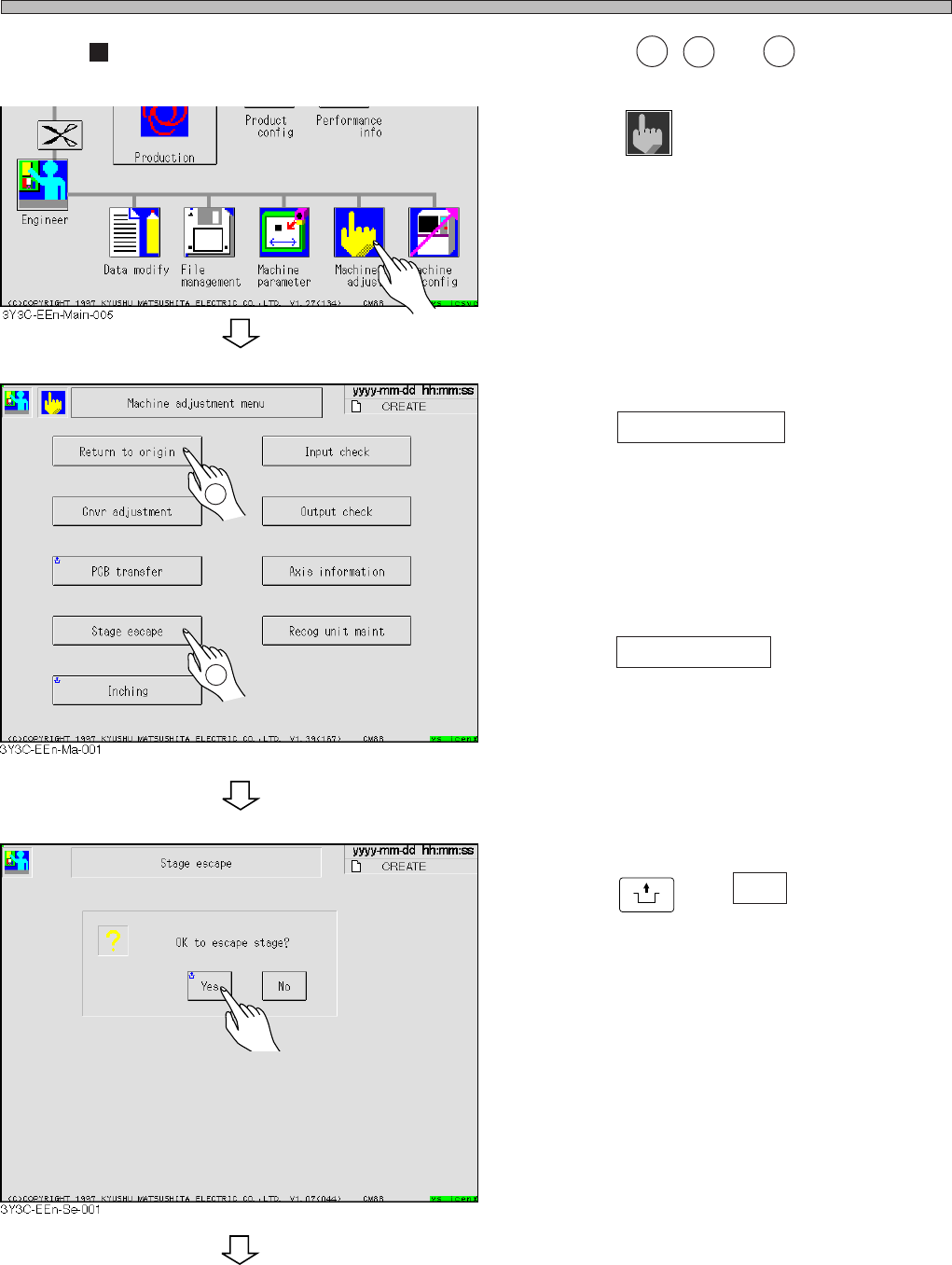

Grease supplying procedure for the linearways A , B and C
1. Press .
• The “Machine adjustment menu” screen
appears.
2. Press Return to origin .
• Each station returns to origin.
3. Press Stage escape .
4. Press
UNLOCK
and Yes .
• Stage is retracted.
Machine
adjust
1
2
To the next page.
