Page 1-78 Check Every 1000 Hours (Once T wo Months) 3Y3C-E-MMD01-A06-01 Grease supplying spot for the linearways D and E Supply grease to the sliders D and E of the No. 7 station from the pick-up side. (Right side) (Left…
Page 1-77
REGULAR
MAINTENANCE
1
Check Every 1000 Hours (Once Two Months)
3Y3C-E-MMD01-A06-03
5. Press
UNLOCK
and Inching .
• The “Inching” screen reappears.
6. Press Main axis .
7. Turn off the servo switch.
8. Open the frontr safety cover.
9. Make sure of the supplying spots, and
supply grease to the linearways A ,
B and C .
10. Press
UNLOCK
and .
∗ Shift the head to the next one.
∗ Supply grease to all the 12 heads.
11. When you have supplied grease to all
the 12 heads, press twice.
• The “Main menu” screen reappears.
4G3C-AB01
OFF ( )
ON ( )
SERVO
3Y3C-EEn-MaInc-011
2
1
Page 1-78
Check Every 1000 Hours (Once Two Months)
3Y3C-E-MMD01-A06-01
Grease supplying spot for the linearways D and E
Supply grease to the sliders D and E of the No. 7 station from the pick-up side.
(Right side)
(Left side)
3Y3C-129P 3Y3C-130P
3Y3C-131P
3Y3C-132P
Linearway E
Exclusive nozzle
Linearway D
(Right side)
(Left side)
Exclusive nozzle
Page 1-79
REGULAR
MAINTENANCE
1
Check Every 1000 Hours (Once Two Months)
3Y3C-E-MMD01-A06-01
Grease supplying procedure for the linearways D and E

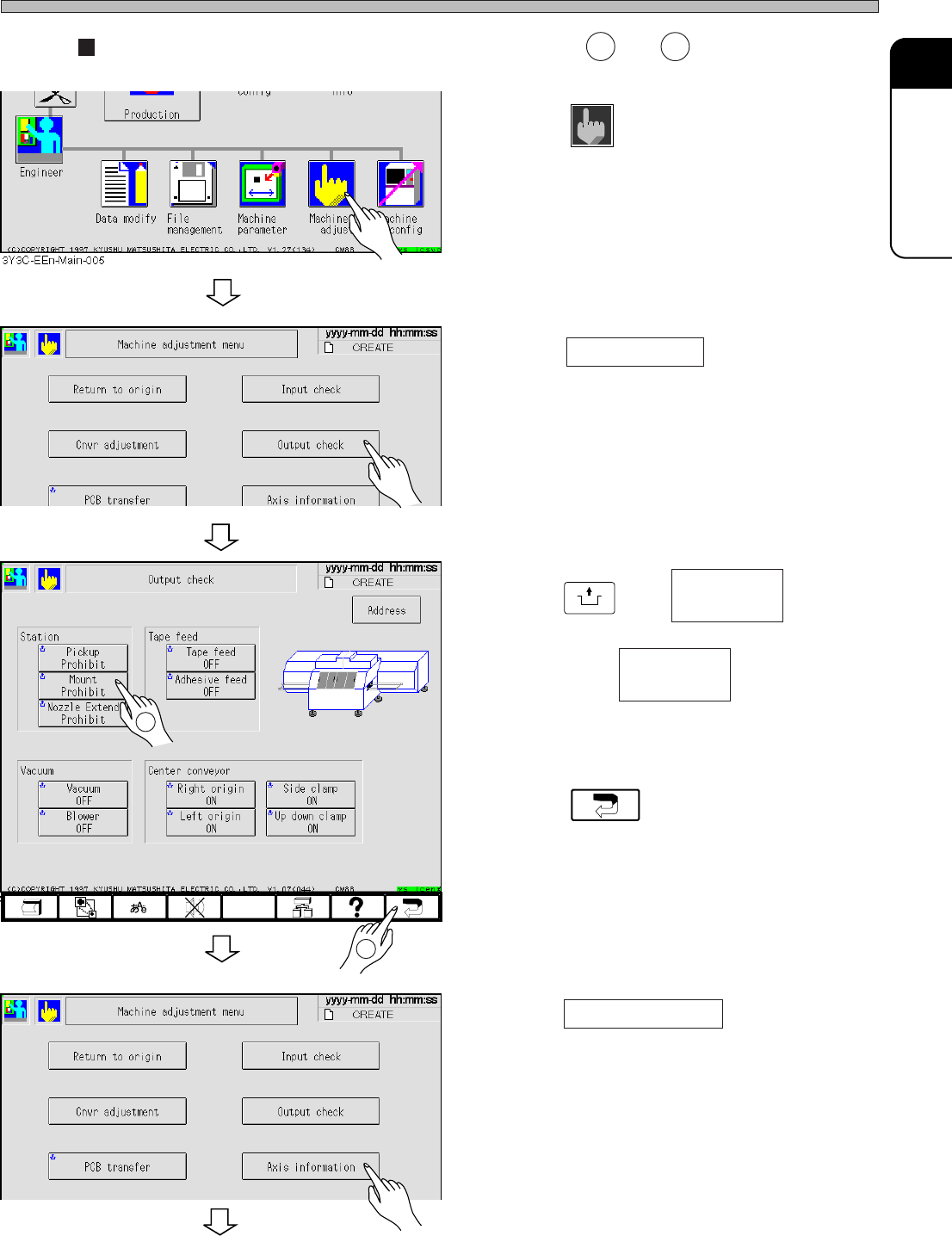

1. Press .
• The “Machine adjustment menu” screen
appears.
2. Press Output check .
• The “Output check” screen appears.
3. Press
UNLOCK
and .
• Change it to .
4. Press .
• The “Machine adjustment menu” screen
reappears.
5. Press Axis information .
• The “Axis information” screen appears.
Machine
adjust
3Y3C-EEn-Ma-001
3Y3C-EEn-MaOc-001
3Y3C-EEn-Ma-001
To the next page
Mount
Prohibit
Mount
Permission
1
2
