Page 1-81
REGULAR
MAINTENANCE
1
Check Every 1000 Hours (Once Two Months)

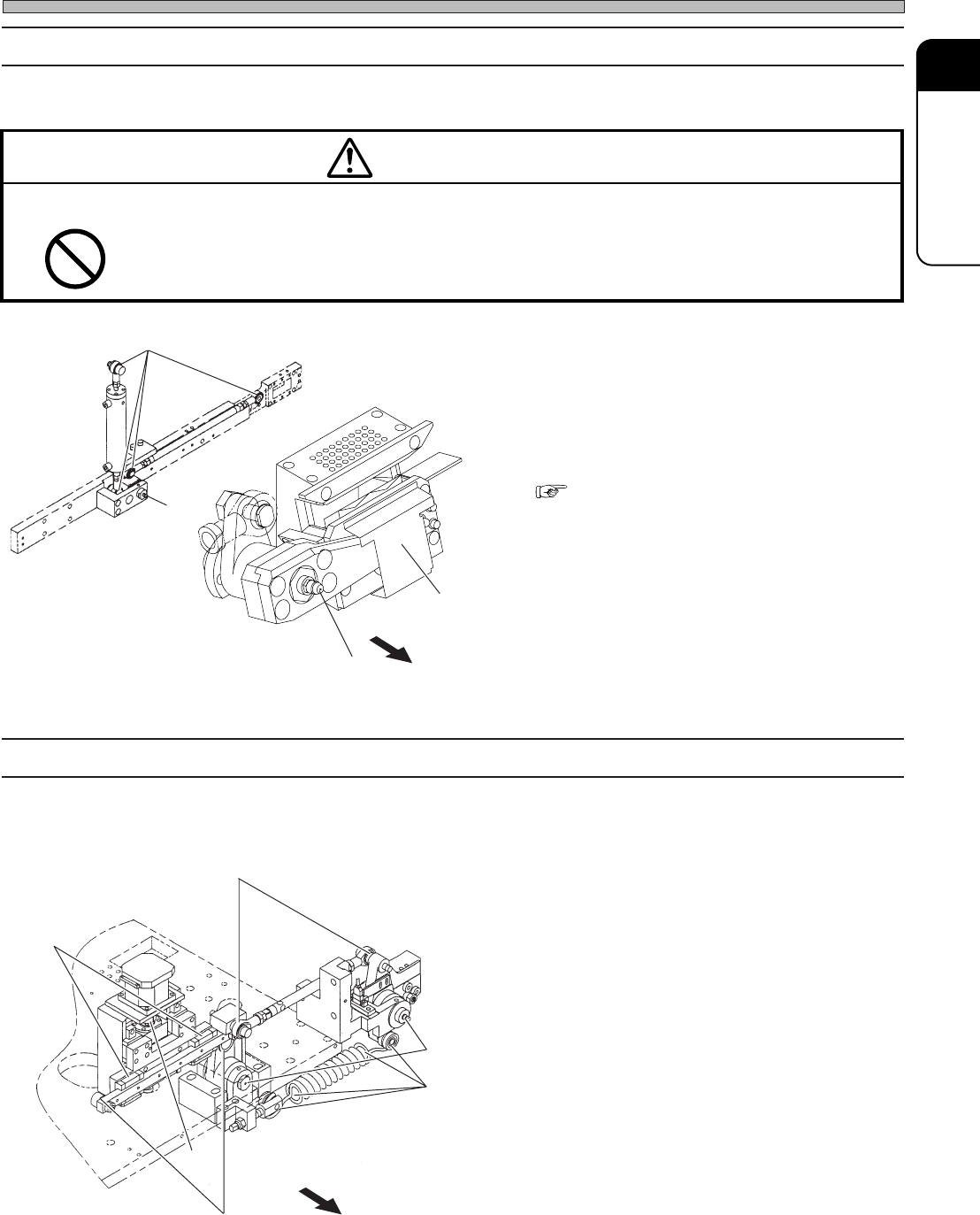

1-6-7 Cleaning and Greasing the Cutting Unit
This unit is for cutting tape.
Clean the movable blade, drive lever
fulcrum, and rod end, then apply
grease.
(Oil : VALIANT U2)
1.Movable blade
“1-7-1 Taking apart the Cutting Unit and
Changing the Movable Blade”
2.Lever fulcrum
Grease lever fulcrum through grease nipple.
3.Rod end
Directly apply grease.
1-6-8 Cleaning and Greasing the Take-up Part
This is the drive part which controls the height of lowest limit of nozzle, and picks up chips.
Clean the linear bearing, screw shaft,
cam follower, rod end, lever fulcrum,
and spring, then apply grease.
(Oil : VALIANT U2)
1.Linear bearing
Grease the slide unit.
2.Screw shaft
Directly apply grease to the screw shaft.
3.Cam follower
Directly apply grease to the cam follower.
4.Rod end
Directly apply grease.
5.Lever fulcrum
Grease lever fulcrum through the grease
nipple.
6.Spring
Directly apply grease to the hook and joint.
M60E
DO NOT TOUCH THE CUTTER BLADE WITH YOUR FINGERS.
The edge is so sharp that you may injure yourself.
CAUTION
Rear side
Rear side
1.
3.
2.
4.
5.
6.
3.
2.
1.
2.
01DSC0AA
130CC0AA
01DPC2AA
3Y3C-E-MMD01-A07-02
Page 1-82
Check Every 1000 Hours (Once Two Months)
1-6-9 Cleaning and Greasing the Tape Feeder
This is the drive for feeding tape.
Clean the linear bearing and rod end,
then apply grease.
(Oil : VALIANT U2)
1.Linear bearing
Grease the slide unit.
2.Rod end
Directly apply grease.
1-6-10 Greasing the Rib Cam
The main axis setting the transfer head makes indexing movement, (intermittent movement) by
rotating the main motor. The elevating unit rises and goes down from the pickup to the mount part
along the rib cam.
Apply grease to rib cam.
(Oil : VALIANT U2)
1.Rib cam
Directly apply grease.
∗ Be careful not to leave grease on head theta
motor boards.
Rear side
1.
2.
1.
1.
Head theta motor
boards
01DTC2AA
01DHC2AA
3Y3C-052P
3Y3C-E-MMD01-A07-01
Page 1-83
REGULAR
MAINTENANCE
1
Check Every 1000 Hours (Once Two Months)
1-6-11 Cleaning and Greasing the Nozzle Changer
This is the unit to extend and retract the nozzle.
Clean the lever fulcrum and rod end,
and apply grease.
(Oil : VALIANT U2)
1.Lever fulcrum
Grease lever fulcrum through the grease
nipple.
2.Rod end
Directly apply grease.
3.Spring
Directly apply grease to the hook and joint.
1-6-12 Cleaning and Greasing the Mount Section
This is the drive part of linking system to mount chip to board, and the stroke is steady.
Clean the lever fulcrum, rod end, and
spring then apply grease.
(Oil : VALIANT U2)
1.Lever fulcrum
Grease lever fulcrum through the grease
nipple.
2.Rod end
Directly apply grease.
3.Spring
Directly apply grease to the hook and joint.
Front side
1.
2.
3.
01DQC1AA
3Y3C-E-MMD01-A07-02
Front side
1.
1.
3.
2.
010MC0AA
