Page 1-83
REGULAR
MAINTENANCE
1
Check Every 1000 Hours (Once Two Months)

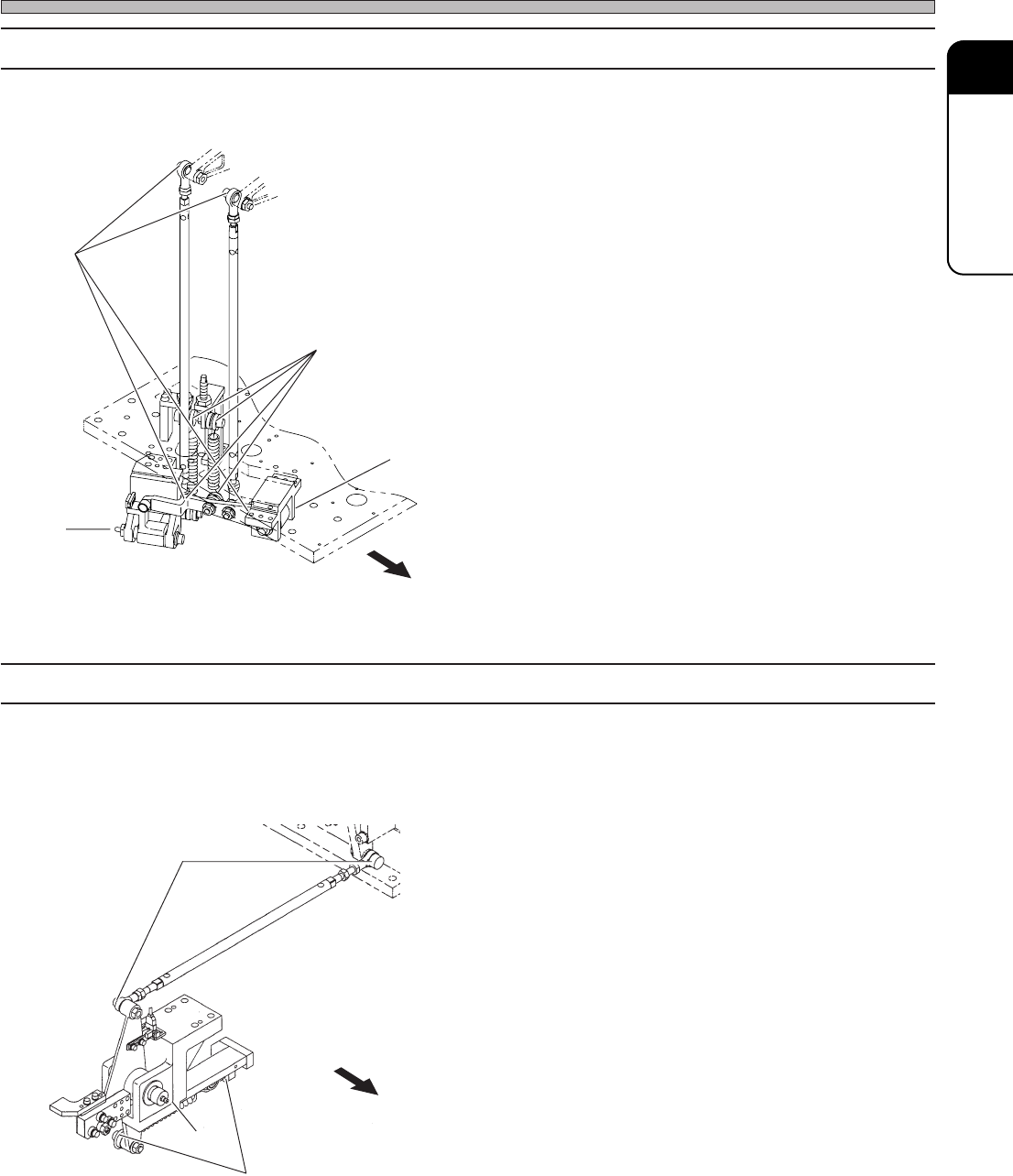

1-6-11 Cleaning and Greasing the Nozzle Changer
This is the unit to extend and retract the nozzle.
Clean the lever fulcrum and rod end,
and apply grease.
(Oil : VALIANT U2)
1.Lever fulcrum
Grease lever fulcrum through the grease
nipple.
2.Rod end
Directly apply grease.
3.Spring
Directly apply grease to the hook and joint.
1-6-12 Cleaning and Greasing the Mount Section
This is the drive part of linking system to mount chip to board, and the stroke is steady.
Clean the lever fulcrum, rod end, and
spring then apply grease.
(Oil : VALIANT U2)
1.Lever fulcrum
Grease lever fulcrum through the grease
nipple.
2.Rod end
Directly apply grease.
3.Spring
Directly apply grease to the hook and joint.
Front side
1.
2.
3.
01DQC1AA
3Y3C-E-MMD01-A07-02
Front side
1.
1.
3.
2.
010MC0AA
Page 1-84
Check Every 1000 Hours (Once Two Months)

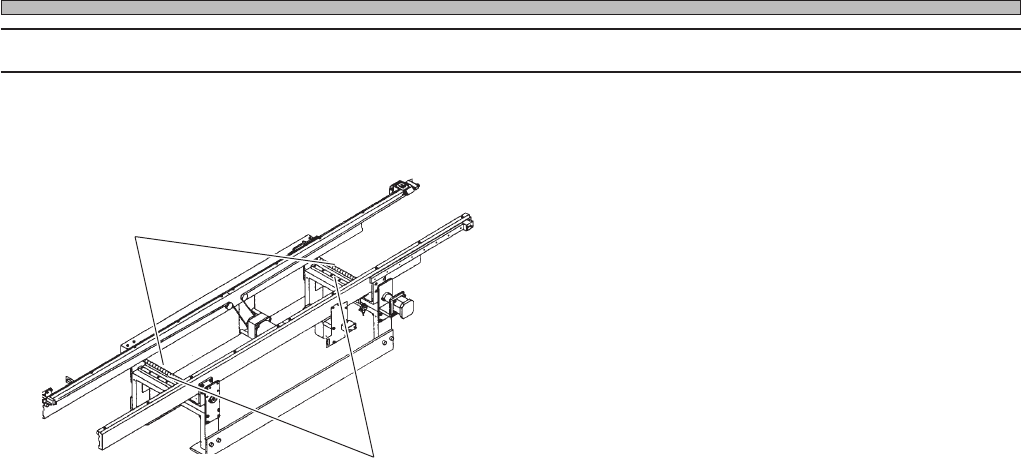

1-6-13 Cleaning and Greasing the Front and Rear Conveyors
This unit is for loading and unloading the board.
Clean the linear bearing and screw
shaft, then apply grease.
(Oil : ALBANIA 2)
1.Linear bearing
Apply grease to rail.
2.Screw shaft
Apply grease to screw shaft.
1.
2.
11DGC2AA
3Y3C-E-MMD01-A07-01
Page 1-85
REGULAR
MAINTENANCE
1
1-7
Changing the Consumable Parts Every 1500 to 6000 Hours
1-7-1
Taking apart the Cutting Unit and Changing the Movable Blade [1500 Hours]
This section describes taking apart, cleaning, greasing and changing the cutting unit.
1. Taking apart the cutting unit.
∗ Before starting operation, carry out “Return to
origin” on the “Machine adjustment menu”
screen. If they have already been done, this is
unnecessary.
1. Turn off the power.
2. Open the rear center safety cover.
3. Loosen bolts (M3) with a hexagonal
wrench, and remove the cover.
4. Loosen bolts (M6) with a hexagonal
wrench and remove the cover.
M60E
DO NOT TOUCH THE CUTTER BLADE WITH YOUR FINGERS.
The edge is so sharp that you may injure yourself.
CAUTION
To the next page
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
Lever
Cover
Position of bolts
3Y3C-AI01
4G3C-201P
3Y3C-054P
3Y3C-E-MMD01-A07-02
