Page 1-97 REGULAR MAINTENANCE 1 3Y3C-E-MMD01-A09-02 OFF ( ) ON ( ) SERVO 3Y3C-AG01 T o the next page Nozzle Extend Prohibit Nozzle Extend Permission 3Y3C-EEn-MaOc-001 2 1 Changing the Consumable Parts Every 1500 to 6000 …
Page 1-96
Changing the Consumable Parts Every 1500 to 6000 Hours

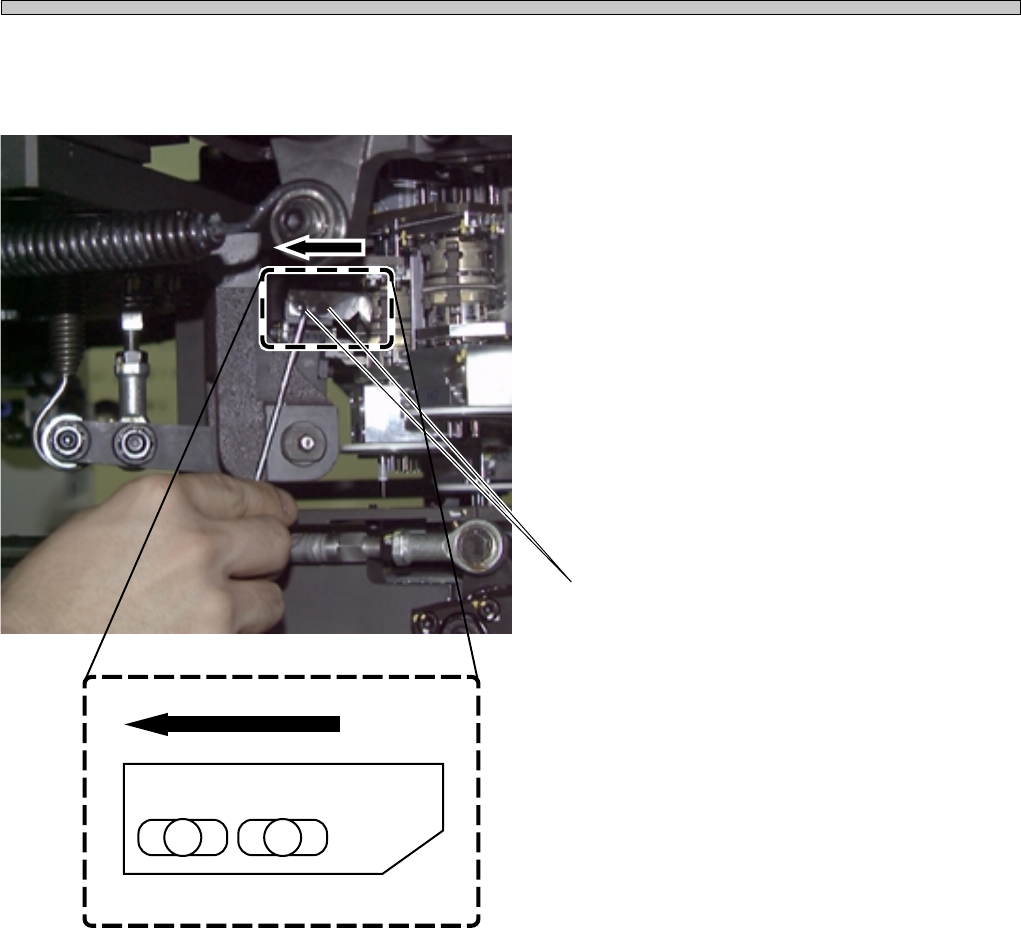

2. Changing nozzle extension claws
Change claws at first and adjust position.
1. Loosen the bolts (M3) with a hexago-
nal wrench and change the nozzle
extension claws.
∗ Set the nozzle extension claw inner as pos-
sible, not to contact with the elevating unit, and
make space between the claw and the nozzle
stopper of elevating unit.
3Y3C-E-MMD01-A09-02
Bolt
3Y3C-069P
3Y3C-178E
Page 1-97
REGULAR
MAINTENANCE
1
3Y3C-E-MMD01-A09-02
OFF ( )
ON ( )
SERVO
3Y3C-AG01
To the next page
Nozzle Extend
Prohibit
Nozzle Extend
Permission
3Y3C-EEn-MaOc-001
2
1
Changing the Consumable Parts Every 1500 to 6000 Hours
3.
Adjusting the nozzle loosening lever
(Adjusting the one for CM88C is unnecessary.)

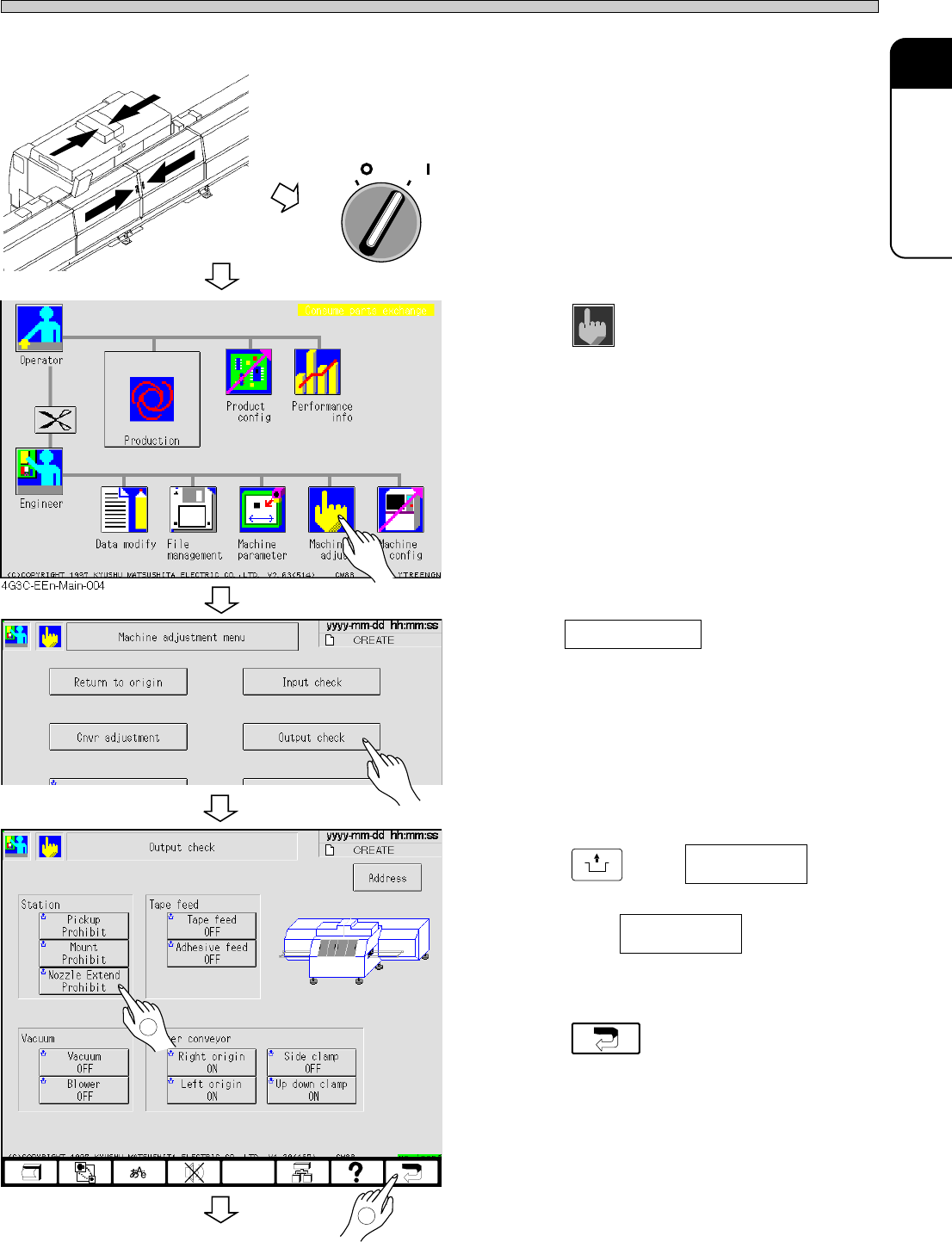

1. Close the rear center safety cover.
2. Turn on the servo switch.
3. Press
Machine
adjust
.
• The “Machine adjustment menu” screen
appears.
4. Press Output check .
• The “Output check” screen appears.
5. Press
UNLOCK
and .
• Change it to .
6. Press .
• The “Machine adjustment menu” screen
reappears.
3Y3C-EEn-Ma-001
Page 1-98
Changing the Consumable Parts Every 1500 to 6000 Hours
7. Press Axis information .
• The “Axis information” screen appears.
8. Turn off the servo switch.
9. Open the rear center safety cover.
10. Rotate the main axis motor to 430±5
by hand, and rotate the head and
adjust the position visually, so that
the nozzle loosening lever gets into
the gap of A (between nozzle numbers
1 and 2).
NOTICE
Make sure of not contacting the nozzle loosening lever to the nozzle number seal.
3Y3C-E-MMD01-A09-02
To the next page
OFF ( )
ON ( )
SERVO
3Y3C-AI01
Nozzle loosening lever
3Y3C-114P
A
3Y3C-EEn-Ma-001
3Y3C-169E
Rear side
Chip pickup
Pickup angle head
theta rotation
Main axis
Nozzle extension
Nozzle retraction
