Page 1-102 Changing the Consumable Parts Every 1500 to 6000 Hours 4 . Adjusting setting position 1 . Store the nozzle by hand. 2 . Slowly move the nozzle drawing claw in the right direction, and fix the bolt at the posit…
Page 1-101
REGULAR
MAINTENANCE
1
Changing the Consumable Parts Every 1500 to 6000 Hours

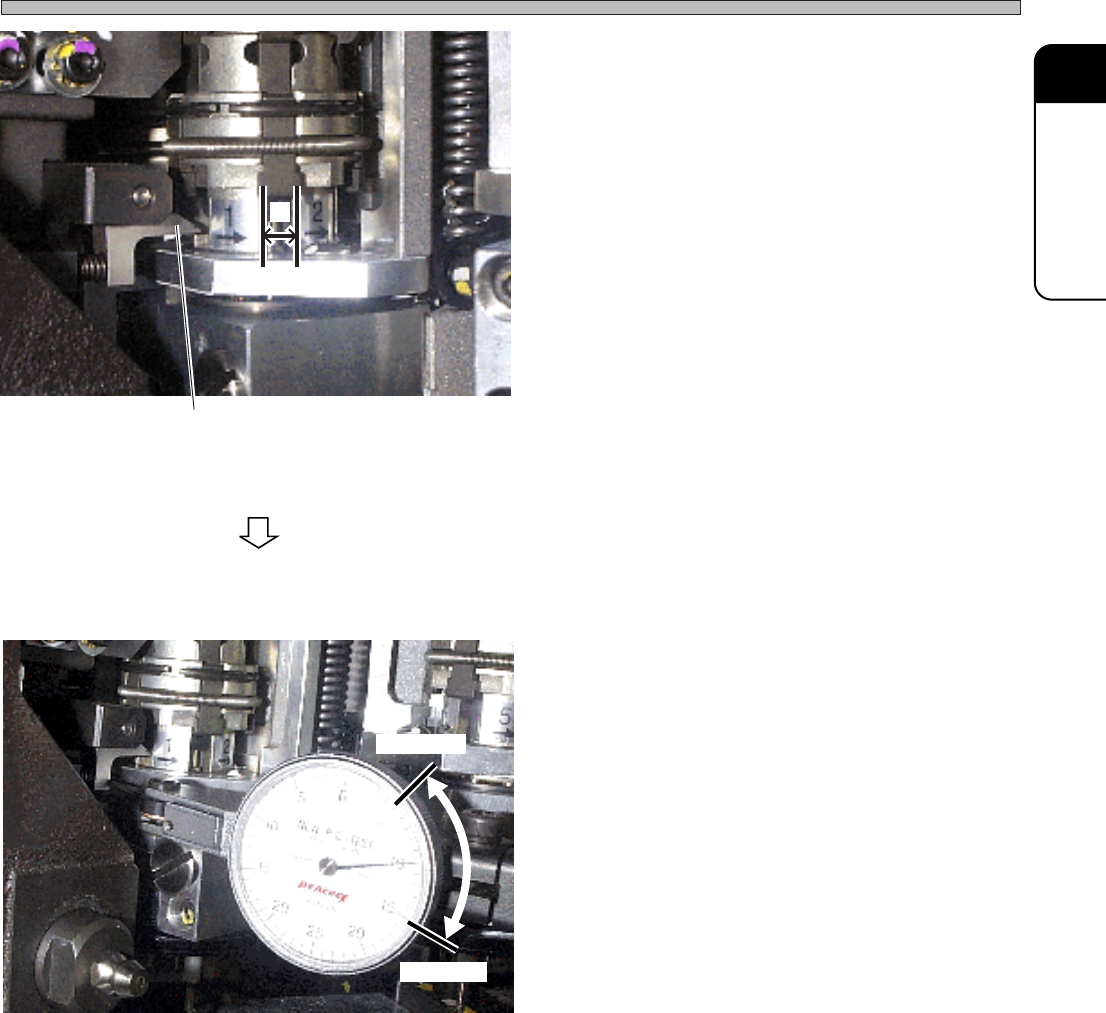

17. Adjust the nozzle loosening lever so
that it comes into the gap of A (be-
tween nozzle numbers 1 and 2), rotat-
ing the head, and so that it is between
+ 0.05mm and 0.15mm head, turning
the wrench to the Extends (+) direc-
tion.
∗ If it is over the standard, the nozzle may not
work properly, or may be damaged.
18. Tighten the nuts of the rod end of
nozzle drawing part at the upper and
lower positions.
19. Check that the scale of dial gauge is
within the range of + 0.05mm to
0.15mm.
3Y3C-E-MMD01-A09-01
3Y3C-114P
Nozzle loosening lever
A
3Y3C-121P
+0.05mm
+0.15mm
Page 1-102
Changing the Consumable Parts Every 1500 to 6000 Hours

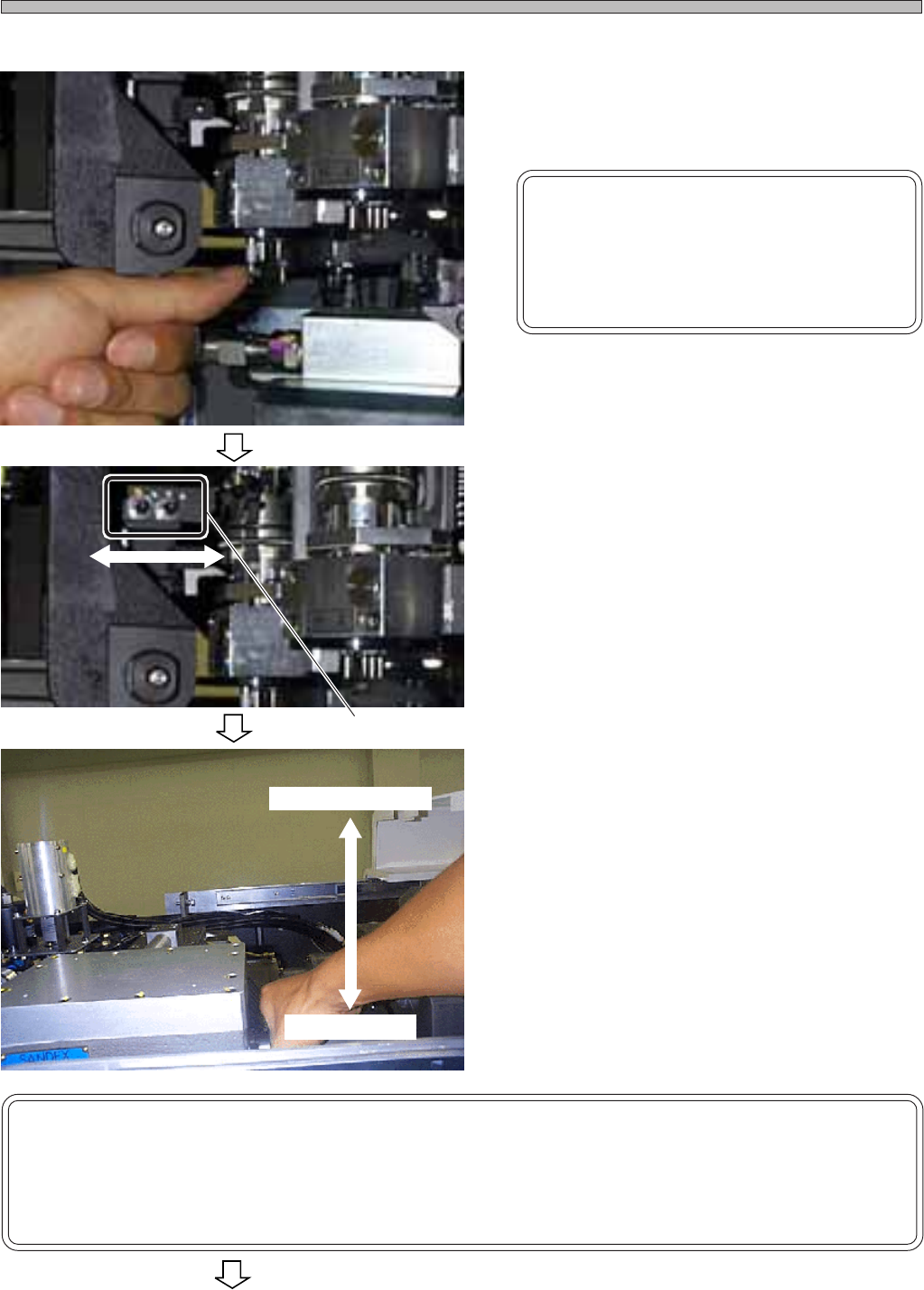

4. Adjusting setting position
1. Store the nozzle by hand.
2. Slowly move the nozzle drawing claw
in the right direction, and fix the bolt
at the position where the nozzle has
just dropped.
3. Rotate the main motor in the reverse
direction about 30 pulse, and store
the nozzle by hand.
4. Slowly rotate the main motor rightly,
and when the nozzle clicks in falling
down, adjust the pulse of axis infor-
mation to 473 ± 5.
NOTICE
When there is the head below 468 pulse after checking all heads, adjust it to the
standard one again, considering it as a reference.
3Y3C-E-MMD01-A09-01
Reverse rotation
3Y3C-113P
Right rotation
CAUTION
Be carefull not to be injured
with the edge of nozzle.
3Y3C-120P
3Y3C-120P
Nozzle extension claw
To the next page
Page 1-103
REGULAR
MAINTENANCE
1
3Y3C-E-MMD01-A09-01
Changing the Consumable Parts Every 1500 to 6000 Hours
5. Rotate the main axis motor by hand,
and adjust it to 537 pulse.
6. Check that the thickness gauge
(thicker than 0.1 mm) can be inserted
between the nozzle drawing claw and
nozzle stopper.
3Y3C-113P
3Y3C-070P
Thickness gauge
Nozzle extension claw
Right rotation
