Page 1-110 Changing the Consumable Parts Every 1500 to 6000 Hours 11 . Press . 12 . Press UNLOCK and . • Stage A moves to the position where address 1 comes to the tape feeding position. 13 . Press Move qty set . • Numer…
Page 1-109
REGULAR
MAINTENANCE
1
Changing the Consumable Parts Every 1500 to 6000 Hours

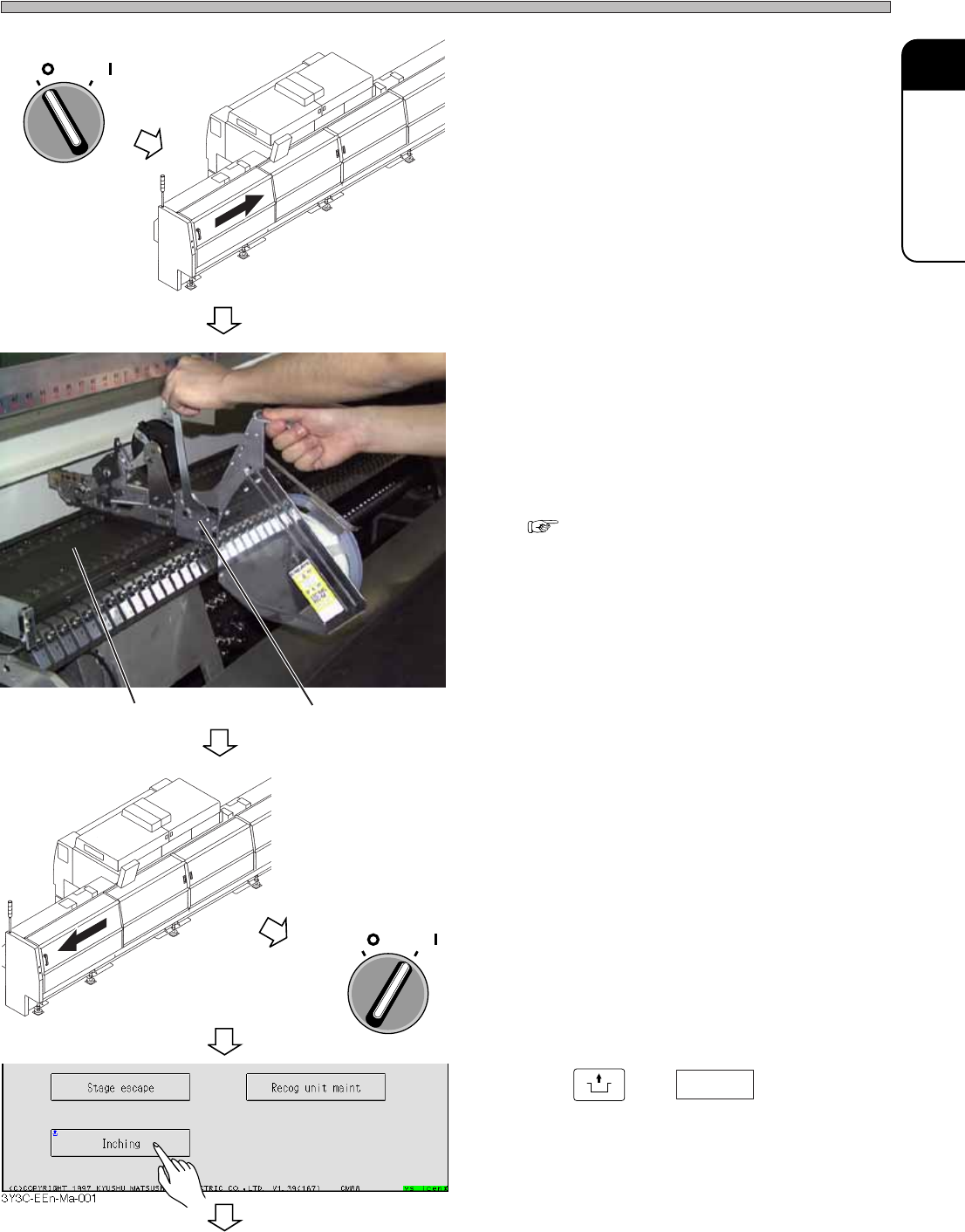

5. Turn off the servo switch.
6. Open the rear safety cover.
7. Remove all tape feeders from the
feeder table to use for checking.
∗ Do not remove or set the tape feeder at the
pickup position.
∗ Removing and setting the tape feeder
“OPERATING MANUAL (for Operators).”
8. Close the rear safety cover.
9. Turn on the servo switch.
10. Press
UNLOCK
and Inching .
• The “Inching” screen appears.
3Y3C-E-MMD01-A10-01
To the next page
OFF ( )
ON ( )
SERVO
3Y3C-AG01
3Y3C-074P
OFF ( )
ON ( )
SERVO
3Y3C-AG01
Feeder table Tape feeder
Page 1-110
Changing the Consumable Parts Every 1500 to 6000 Hours

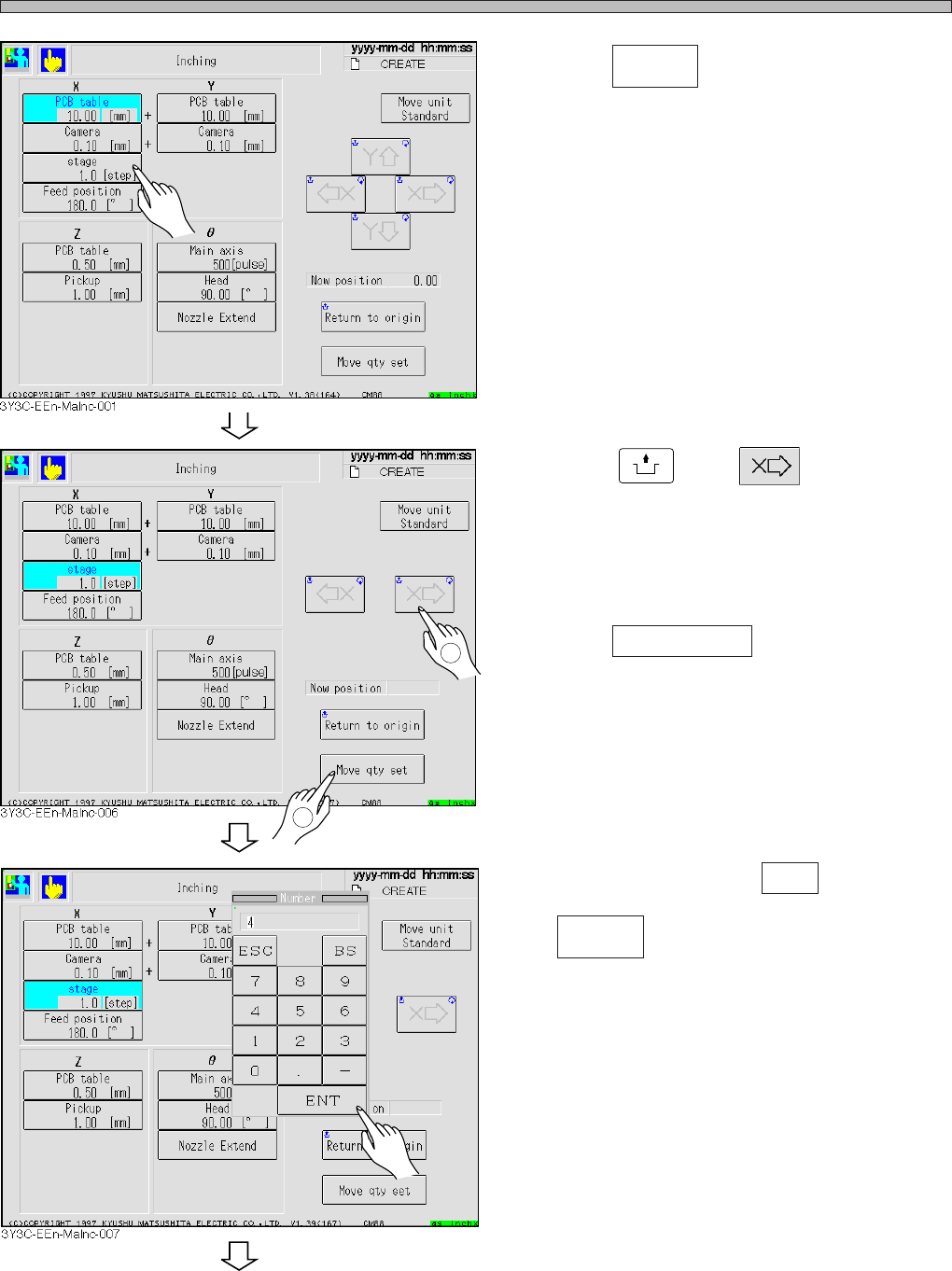

11. Press .
12. Press
UNLOCK
and .
• Stage A moves to the position where address 1
comes to the tape feeding position.
13. Press Move qty set .
• Numeral keys appear.
14. Enter “4” and press ENT .
• is displayed.
3Y3C-E-MMD01-A10-02
To the next page
Stage
1.0 [step]
Stage
4.0 [step]
1
2
Page 1-111
REGULAR
MAINTENANCE
1
Changing the Consumable Parts Every 1500 to 6000 Hours
15. Press
UNLOCK
and .
• Stage A moves to the position where address 5
comes to the tape feeding position.
16. Turn off the power.
17. Open the rear center safety cover.
18. Set the inspection jig to address 5.
19. Move the stage to the position where
the top face of jig block matches to
the tape feeding cam follower.
3Y3C-E-MMD01-A10-02
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
3Y3C-075P
3Y3C-076P
3Y3C-AI01
3Y3C-EEn-MaInc-008
