Page 1-112 Changing the Consumable Parts Every 1500 to 6000 Hours 3-B Each setting for checking height 1 . Close the rear center safety cover . 2 . T urn on the power . ∗ Starting up the machine “ OPERA TING MANUAL (for …
Page 1-111
REGULAR
MAINTENANCE
1
Changing the Consumable Parts Every 1500 to 6000 Hours

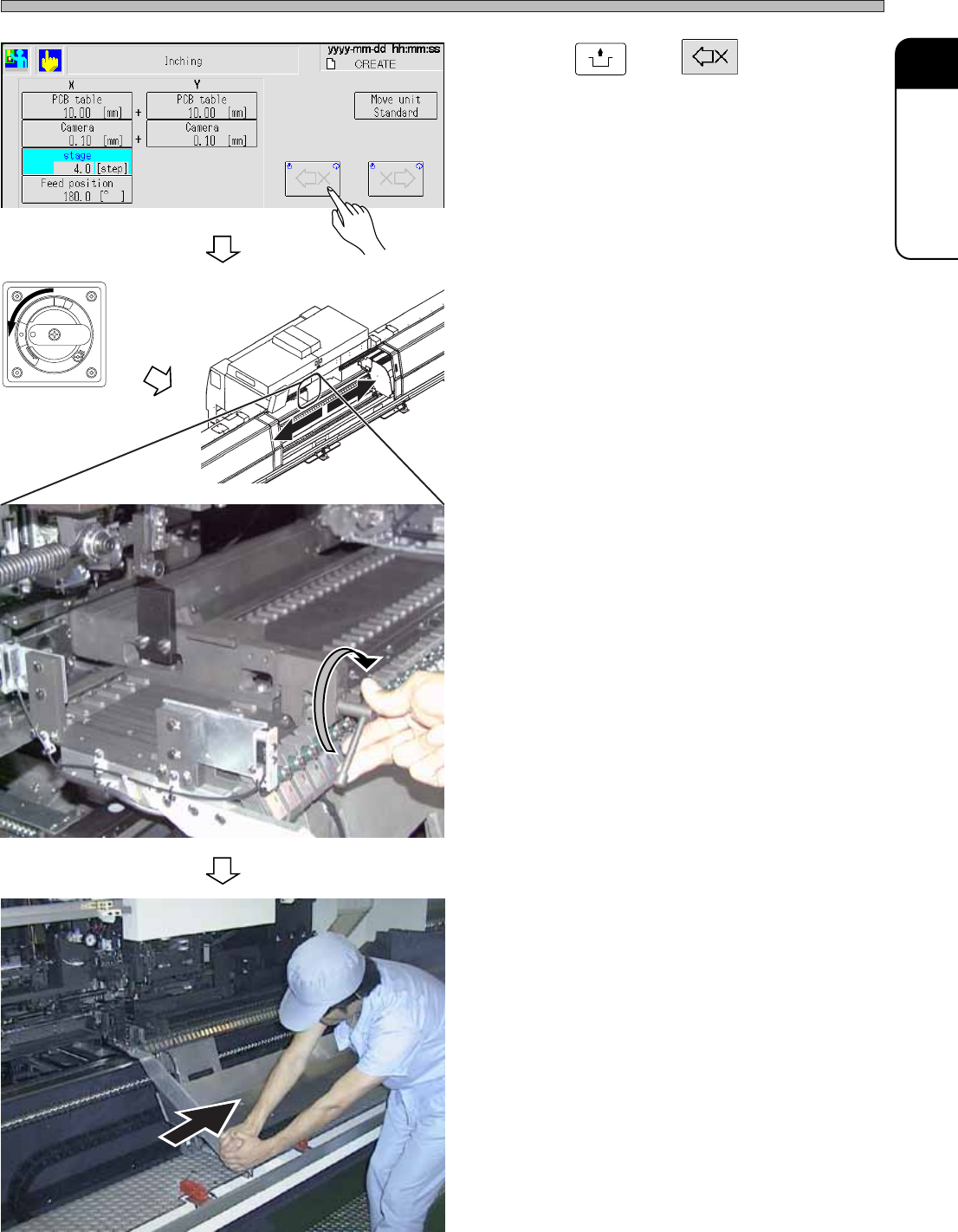

15. Press
UNLOCK
and .
• Stage A moves to the position where address 5
comes to the tape feeding position.
16. Turn off the power.
17. Open the rear center safety cover.
18. Set the inspection jig to address 5.
19. Move the stage to the position where
the top face of jig block matches to
the tape feeding cam follower.
3Y3C-E-MMD01-A10-02
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
3Y3C-075P
3Y3C-076P
3Y3C-AI01
3Y3C-EEn-MaInc-008
Page 1-112
Changing the Consumable Parts Every 1500 to 6000 Hours
3-B Each setting for checking height

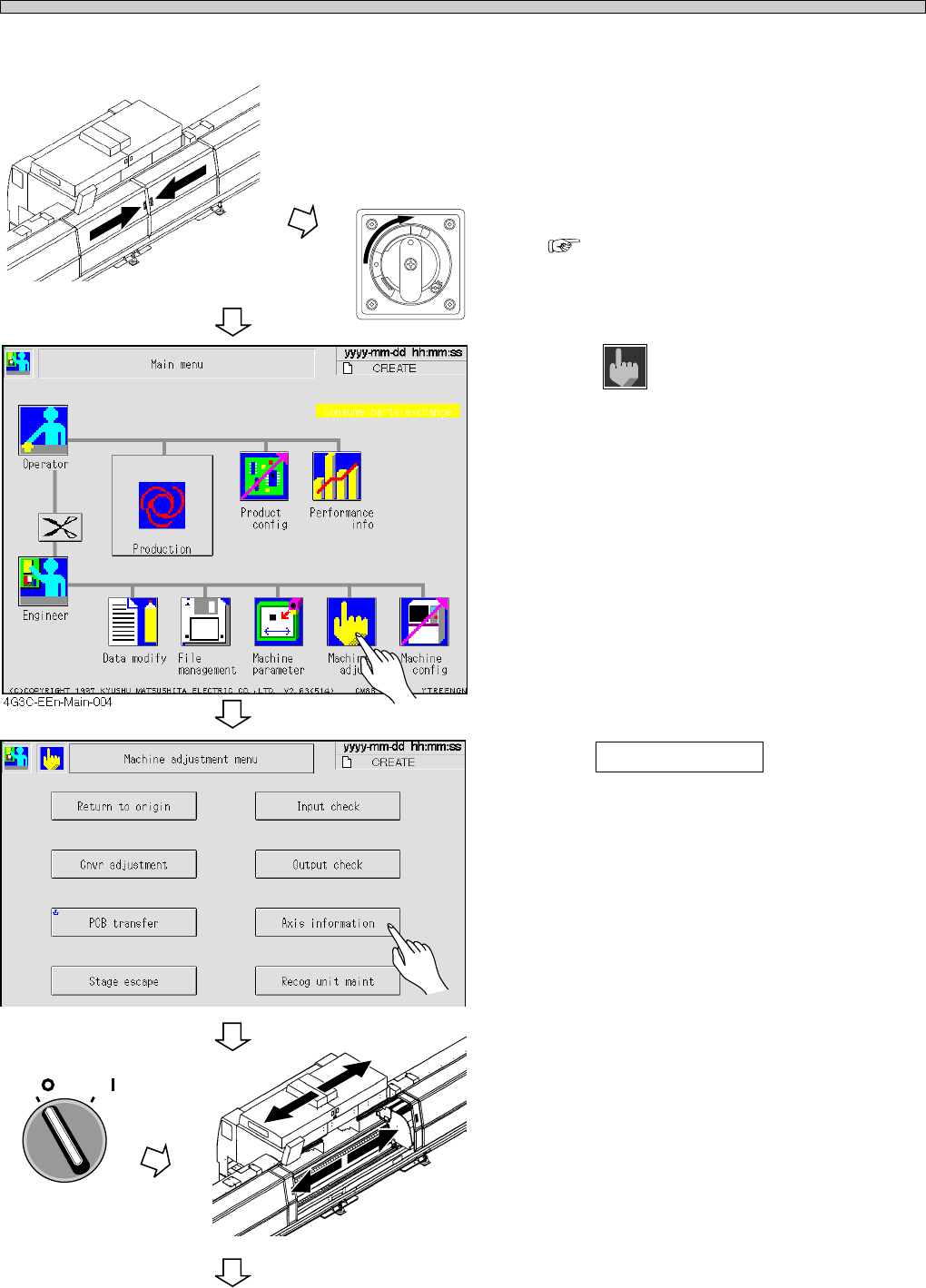

1. Close the rear center safety cover.
2. Turn on the power.
∗ Starting up the machine
“OPERATING MANUAL (for Operators).”
3. Press
Machine
adjust
.
• The “Machine adjustment menu” screen
appears.
4. Press Axis information .
• The “Axis information” screen appears.
5. Turn off the servo switch.
6. Open the rear center safety cover and
upper cover.
3Y3C-E-MMD01-A10-02
To the next page
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
OFF ( )
ON ( )
SERVO
3Y3C-AI01
3Y3C-EEn-Ma-001
3Y3C-AG01
Page 1-113
REGULAR
MAINTENANCE
1
Changing the Consumable Parts Every 1500 to 6000 Hours

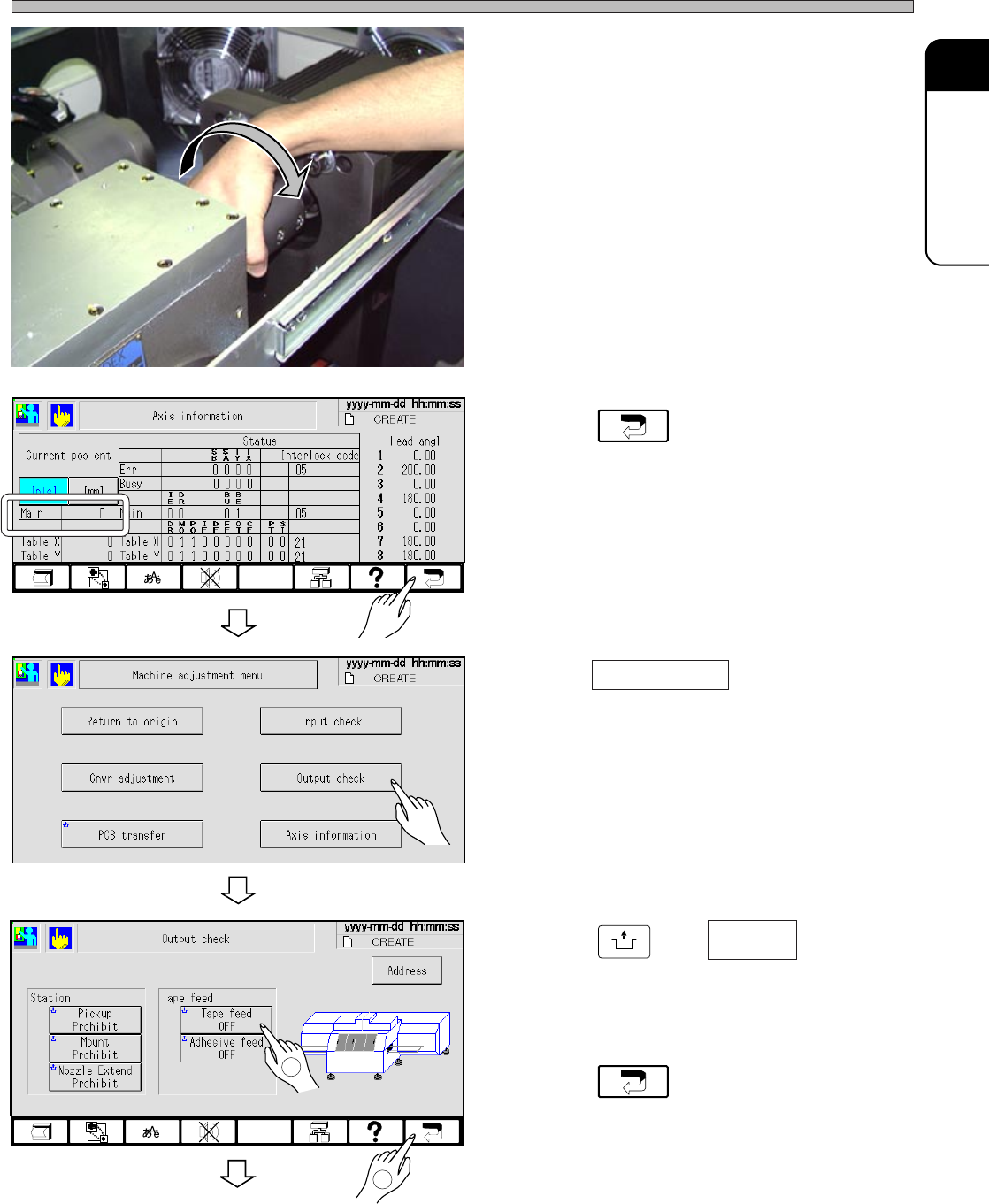

7. Turn the coupling of main motor by
hand, so that “Main” on the “Axis
information” screen gets near to
“0 (pulse).”
∗ “Main” must be within 0 ± 10 pulse.
8. Press .
• The “Machine adjustment menu” screen
reappears.
9. Press Output check .
• The “Output check” screen appears.
10. Press
UNLOCK
and .
• Tape feeding prohibited is cleared.
11. Press .
• The “Machine adjustment menu” screen
appears.
3Y3C-E-MMD01-A10-02
To the next page
3Y3C-104P
3Y3C-EEn-MaAi-003
3Y3C-EEn-Ma-001
3Y3C-EEn-MaOc-001
1
2
Tape feed
OFF
