Page 1-113
REGULAR
MAINTENANCE
1
Changing the Consumable Parts Every 1500 to 6000 Hours
7. Turn the coupling of main motor by
hand, so that “Main” on the “Axis
information” screen gets near to
“0 (pulse).”
∗ “Main” must be within 0 ± 10 pulse.
8. Press .
• The “Machine adjustment menu” screen
reappears.
9. Press Output check .
• The “Output check” screen appears.
10. Press
UNLOCK
and .
• Tape feeding prohibited is cleared.
11. Press .
• The “Machine adjustment menu” screen
appears.
3Y3C-E-MMD01-A10-02
To the next page
3Y3C-104P
3Y3C-EEn-MaAi-003
3Y3C-EEn-Ma-001
3Y3C-EEn-MaOc-001
1
2
Tape feed
OFF
Page 1-114
Changing the Consumable Parts Every 1500 to 6000 Hours

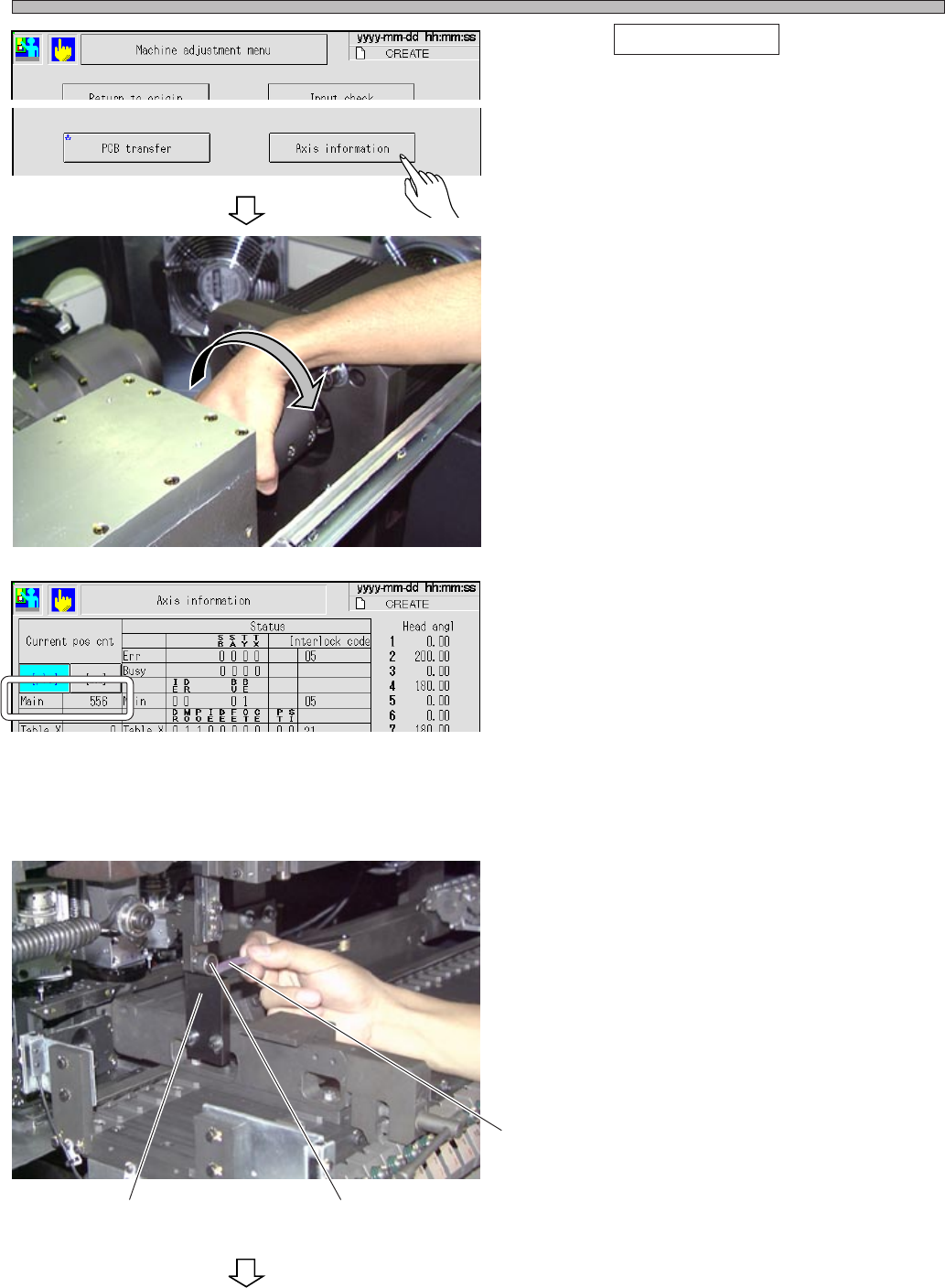

12. Press Axis information .
• The “Axis information” screen appears.
13. Turn the coupling of main motor and
set “Main” on the “axis information”
screen to “556 (pulse)” (200degrees).
• The tape feeding cam follower moves to the
lowest position by this operation.
3-C Checking the height of cam follower
1. Check the height of cam follower.
∗ Check the interval of range between 0 mm and
0.03 mm by inserting the thickness gauge
between tape feeding cam follower and the top
face of inspection jig block, and so on.
3Y3C-E-MMD01-A10-03
To the next page
Thickness gauge
Tape feeding cam followerInspection jig block
3Y3C-077P
3Y3C-104P
3Y3C-EEn-Ma-001
3Y3C-EEn-MaAi-006
Page 1-115
REGULAR
MAINTENANCE
1
Changing the Consumable Parts Every 1500 to 6000 Hours
∗ When the height does not match the standard
value, adjust it loosening two screws on the
upper position of the tape feeding cam follower.
a. Loosen the bolt holding the plate by hand.
b. Push up the plate.
c. Fix the bolt temporarily.
∗ Tighten the bolts after adjustment.
2. Turn the coupling of main motor, and
set “Main” on the “Axis information”
screen to near “0 (pulse).”
∗ “Main” must be within 0 ± 10 pulse.
3. Remove the inspection jig.
3Y3C-E-MMD01-A10-01
b
c
a
